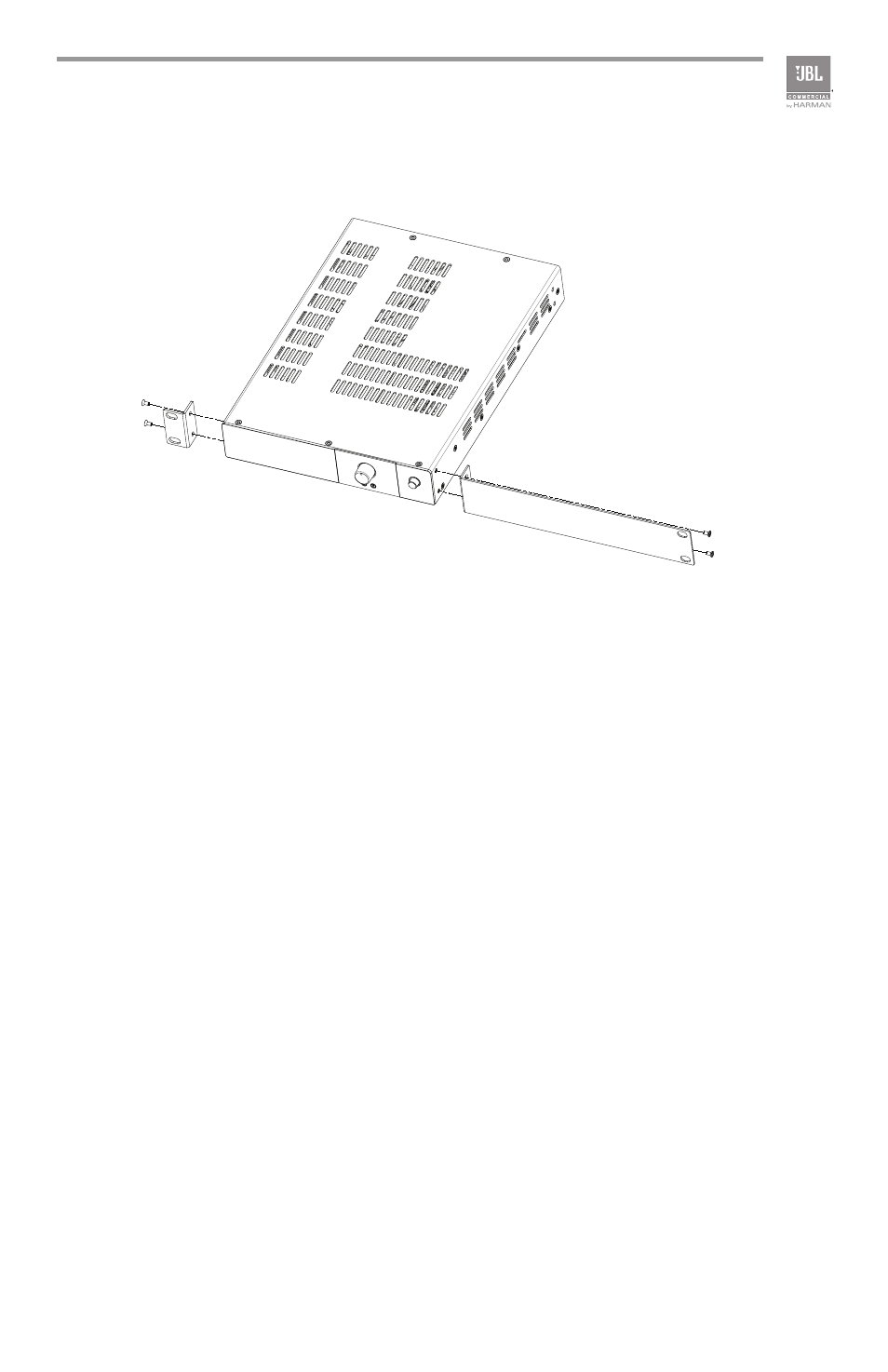

Figure 2.2.4 Rack Mounting A Single Unit
To install a single unit, refer to Figure 2.2.4 and follow the steps below:
1. Determine which side of the rack opening will be used for the amplifier and
attach the long angle bracket to the other side at the front of the amplifier using
the screws provided.
2. Attach one of the front angle brackets to the other side of the assembly, as
shown in the diagram, with the screws provided.
3. Install the assembly into the cabinet using the rack mount screws through the
front angle brackets. For details of installation in the chassis of the cabinet, refer
to the user guide of your cabinet.
