Mounting Accessories
Mounting is simplified with Strategy Series ® style “Dog Leg” tabs that
allow easy installation into drop tile or drywall ceilings with provided tile
bridge assembly. The tile bridge consists of two “V” shaped formed
mounting rails and a C-Ring assembly. The C-Ring can be attached to the
rails with the screws provided to extend support to the T-bar grid in sus-
pended ceiling applications. Multiple hole locations are provided to allow
the C-Ring to be positioned to the outer edge of the tile if necessary.
For existing dry-wall applications the tile bridge C-Ring and support rails
can be inserted into the hole cut for the FAP62T. For easy positioning
the “V” shaped support rails match the shape of the C-Ring tabs for
easy maneuvering and location when working “blindly" above the deck.
A uniquely designed “easy access" input panel on the side of the enclo-
sure allows for “thru" conduit runs using flexible or rigid conduit. Below
this cover resides a detachable Phoenix / Euro style locking four-pole
connector, which provides for easy daisy chain wiring to other full range
70.7V loudspeakers or Atlas Sound FAPSUB subwoofers. The package
includes an attractive press-fit grille, which nicely matches contemporary
architecture.
For new construction drywall ceiling applications, the optional FAP62-TR
trim ring is available. This unit provides a marked location for drywall
installers to cut around essentially reserving the desired location in the
ceiling until final installation of FAP62T. Mounting holes are provided to
accommodate 16" or 24" OC stud / joist mounting.
A support ring is also provided on the top of the FAP62T enclosure to
facilitate an auxiliary support cable.
NOTE: IT IS MANDATORY THAT THIS SECONDARY SUPPORT
BE UTILIZED IN DROP CEILINGS FOR SAFETY AND SEISMIC
CONSIDERATIONS.
Architect & Engineer Specifications
The loudspeaker system shall be Atlas Sound FAP62T. System shall
include a high performance 6" coaxial loudspeaker, ported bass reflex
enclosure and press-fit grille for conventional ceiling installation.
Frequency response for the system shall be 63Hz – 20kHz (±7dB).
Sensitivity shall be 88dB average.
Loudspeaker shall be comprised of a 6" coaxial cone type driver. Cone
shall be constructed of polypropylene with a butyl rubber surround. The
19 mm tweeter shall be constructed of PEI. Magnet shall be a minimum
of 10 oz (264 g) and the voice coil diameter shall be 1" (25 mm).
Transformer shall be a 70.7V / 100V type with 2, 4, 8, 16, and 32 watt
primary taps (@70.7V) with a front mounted tap selector switch to include
transformer bypass setting for 8
Ω direct coupled operation.
Enclosure shall be a deep drawn steel enclosure design. Internal volume
shall be 475 in
3 . To facilitate connection in conduit systems, enclosure
shall be equipped with an access panel covering a recessed terminal cup.
This cover shall provide a combination
3 ⁄
4
" (19mm inside diameter) / 1"
(25mm inside diameter) knock-out on the side access and a top access
compression fitting / strain relief to facilitate flexible conduit up to 22mm
outside diameter or 1" (25mm inside diameter) conduit when the com-
pression fitting is removed.
External wiring shall be accomplished via a removable lockable wir-
ing connector with screw-down terminals to provide both secure wire
termination and pre-wiring capability before loudspeaker installation. The
4 pole locking connector shall facilitate in/out connections and shall be
located in the recessed area behind the conduit access panel.
Seismic support eye shall be provided on top of enclosure for additional
suspension point when used in drop tile ceilings. Construction of enclo-
sure shall be a minimum of 18-gauge deep drawn galvanized metal.
The system shall include a support backing plate to reinforce the ceil-
ing material and tile support rails for use on either 2' x 4' (609mm x
1219mm) or 2' x 2' (609mm x 609mm) suspended ceiling tiles. This
assembly can all be installed from beneath the ceiling tile.
Overall front face diameter shall not exceed 12 1 ⁄
2
" (318mm); overall depth
from the bottom of the ceiling shall not exceed 8.48" (215mm).
Grilles shall be press-fit, manufactured from 24-gauge perforated steel
mesh and finished in white epoxy. Round grill shall be 10.48" (266mm)
diameter.
The loudspeaker shall be the Atlas Sound FAP62T.

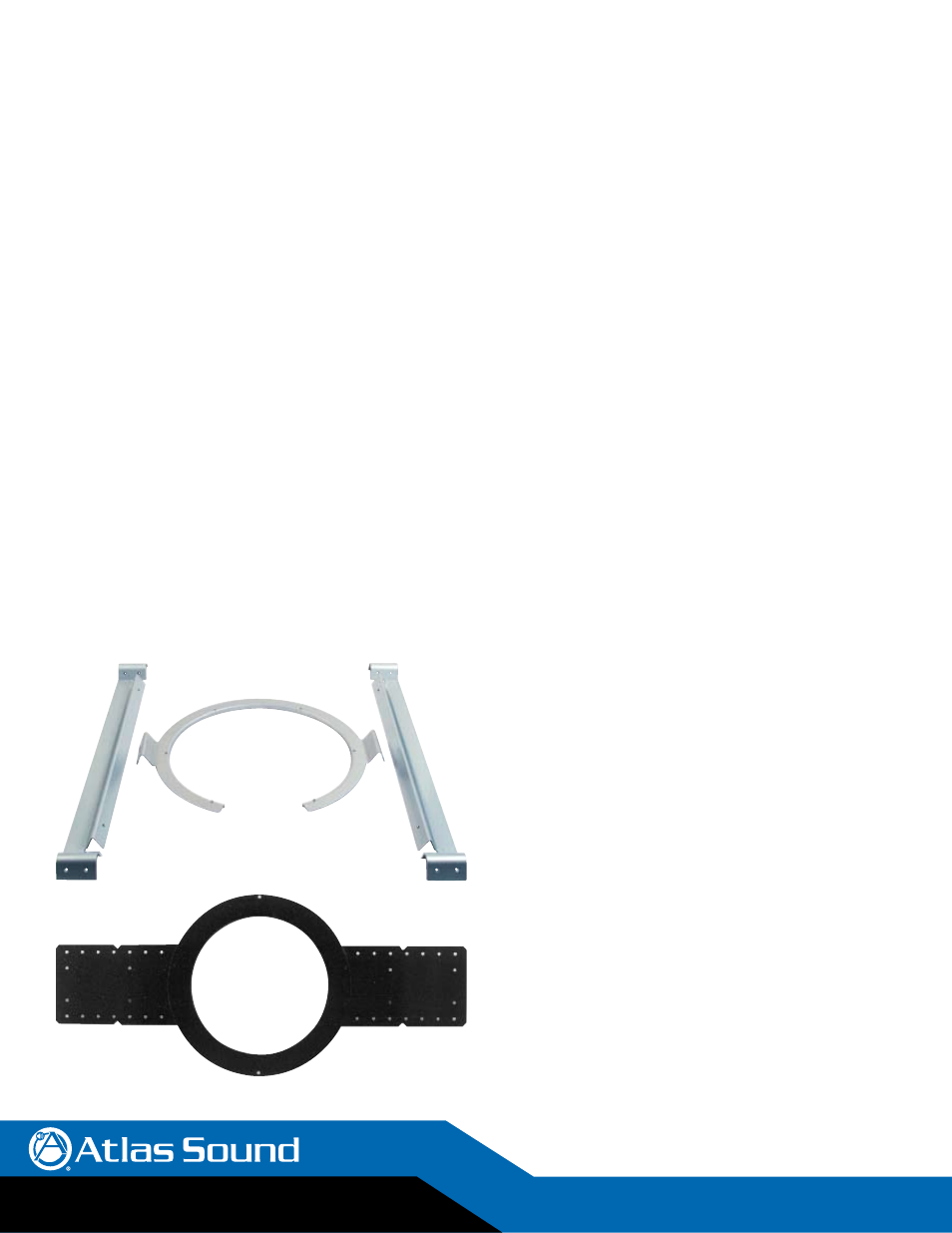

C-Ring / V-Rails
FAP62-TR
