RDL Four XLR Female Microphone Inputs to RJ45 Network Interface - Manual

y Dante Network Interface for Four Audio Mic Inputs
y Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
y 48 V Mic Phantom (P48) on each input
y Four XLR Front-Panel Inputs
y Converts Four Standard XLR Mic Sources to Dante Network Channels
y Special Software Not Required for Module Setup
y High Resolution 24 Bit Analog to Digital Conversion
y LED Indicator for Valid Power and Network Sync
y Operation from PoE Power (Class 0, IEEE 802.3af)
y Equipped for SysFlex™ Rack Mounting or Surface Mounting

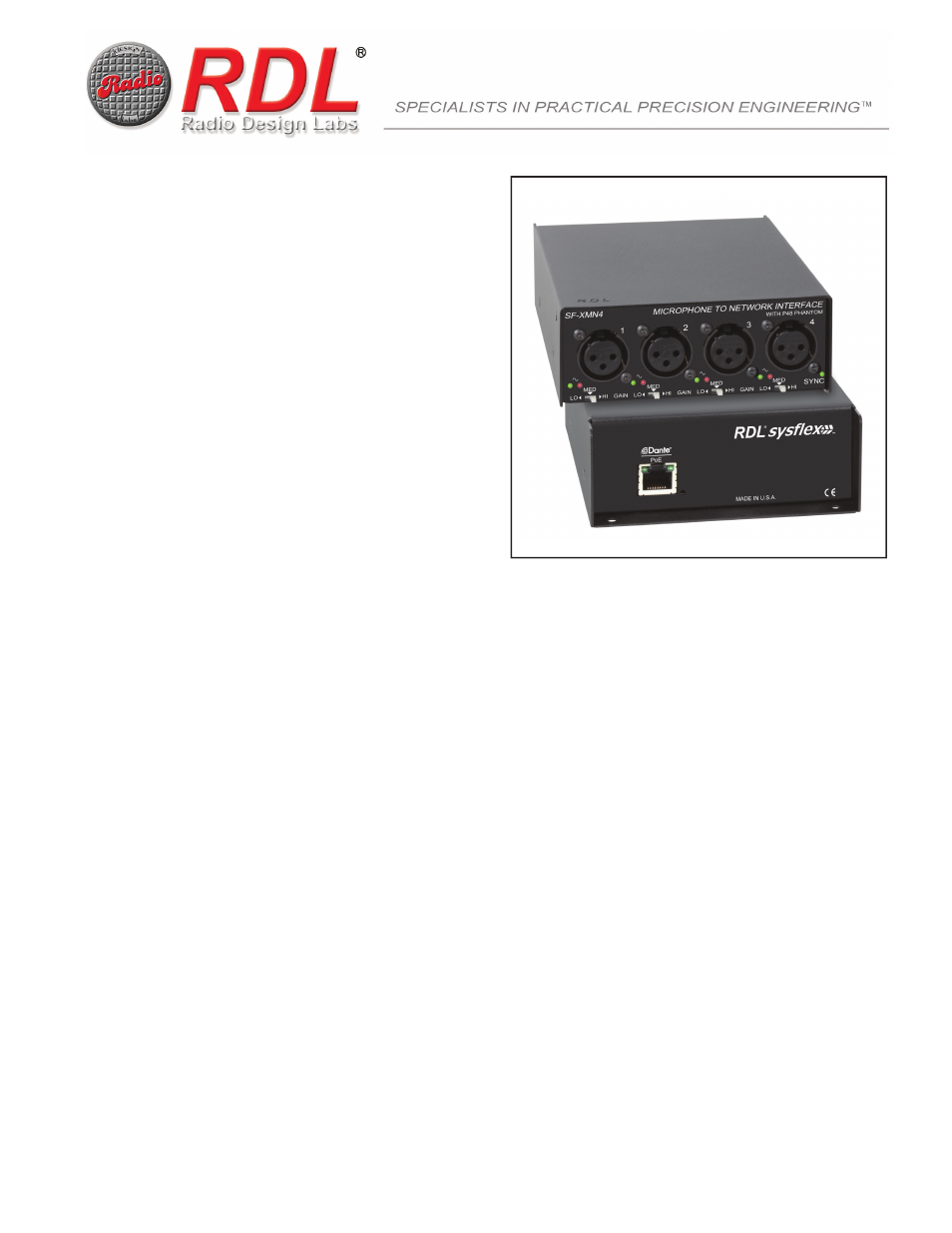

Model SF-XMN4
Microphone to Network Interface
APPLICATION: The SF-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is
not required to configure the SF-XMN4. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A
dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. The SF-XMN4 is a professional grade product
with discrete mic preamplifiers for studio quality fidelity and low noise performance.
The SF-XMN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of
the unit.
The SF-XMN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted
operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The
versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.
The SysFlex series is a family of A/V modules providing complex interface solutions at the click of a connector. SysFlex modules provide connectorized
interface between data networks and analog and digital audio devices, networked and conventional amplifiers and other application-specific solutions.
In RDL’s tradition of versatility, SysFlex modules can be used right where they are needed: Rack-mounted, Surface-mounted, or unmounted. They
are light-weight, compact and easy to install with simple, straightforward switch settings and LED indicators. Modules quickly snap into the SysFlex
rack mount and each is firmly secured with a single screw. The racking system segregates network and power wiring from the audio and digital audio
connectors. For connectorized network audio endpoints and A/V system components that provide unparalleled performance and advanced features without
giving up simplicity and ease of installation, SysFlex is the industry’s best value.
