Abbey Road Saturator/ User Guide
9
C
ONSOLE
T
YPE
Selects which console model signal flow to use to create saturation.
Range: TG, REDD, Off; Default: TG
G
AIN
Sets the amount of saturation that will be generated from the selected console. The behavior of the Gain control varies
depending on the setting:
Value (approximate) Effect
0–50 Increasing amount of harmonic distortion with clean headroom.
50–100 Initially, gentle clipping, increasing to a full crunch effect.
Range: 0 to 100; default: 50
M IX
Sets the mix of the overall processed signal.
Range: 0 (dry) to 100 (processed signal)

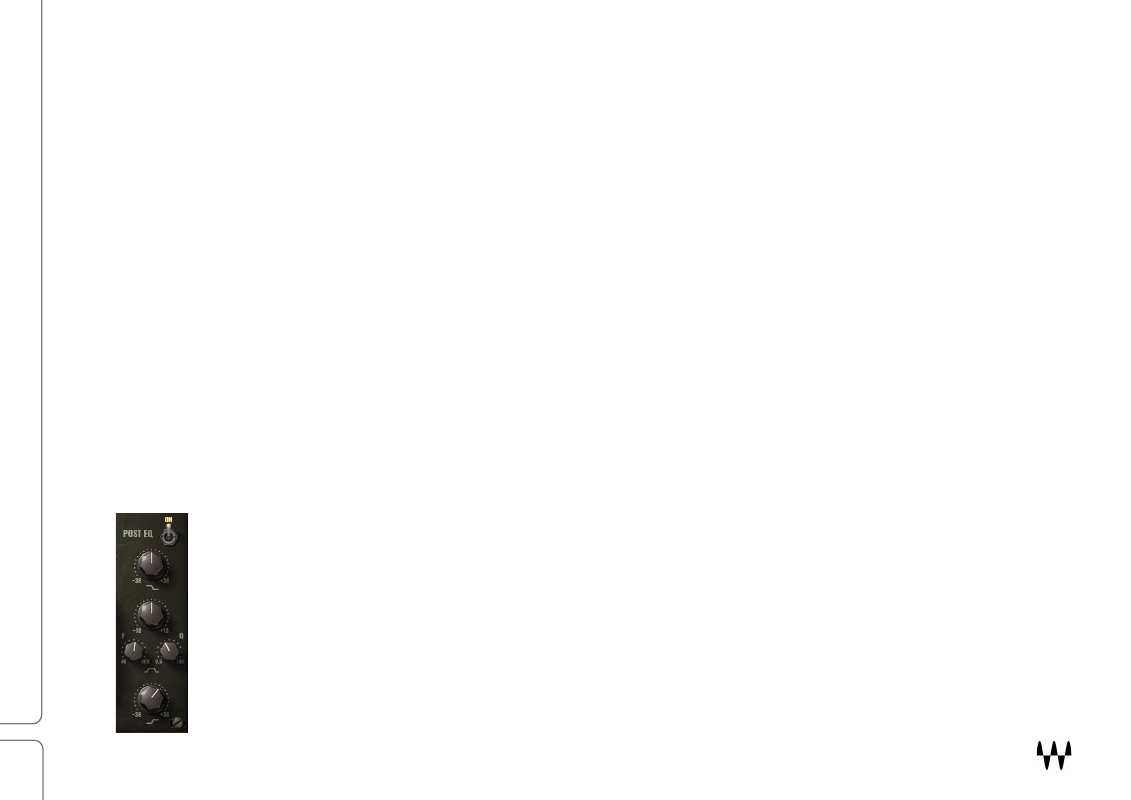

Post EQ
This module is a three-band EQ that filters the signal after all processing, before the output section. Use this to
sculpt the final sound.
F ILTERS
Low Shelf
Gain: -36 dB to +36 dB, Default: 0 dB
Frequency: 200 Hz
Bell
Gain: -18 dB to +18 dB; Default: 0 dB
Freq: 40 Hz to 10,000 Hz; Default 740 Hz
Q: 0.5 to 100; Default 4.05
High Shelf
Gain: -36 dB to +36 dB, Default: 0 dB
Frequency: 2550 Hz
