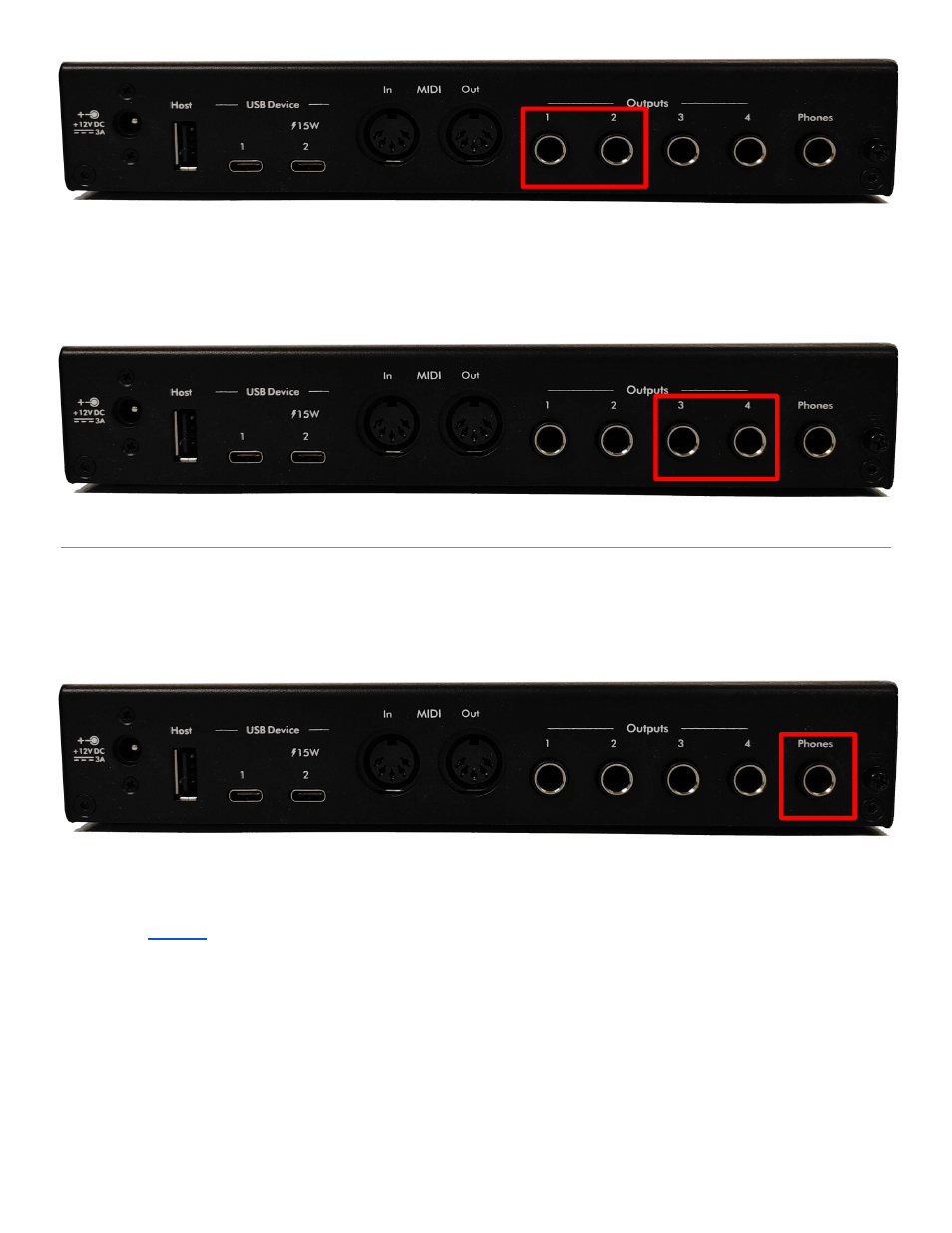

Analog 3/4 Mix
Select to show a list of configurable output channel signal sources and edit the level, pan (if [ Stereo ]
is selected), [ Mute ], [ Solo ], and [ Stereo ] selection for analog outputs 3 & 4 as indicated below.
Headphones Mix
Select to show a list of configurable output channel signal sources and edit the level, pan (if [ Stereo ]
is selected), [ Mute ], [ Solo ], and [ Stereo ] selection for the Phone mix.
Note: Selecting [ Stream ] mode from the Mode menu on the upper right corner under [ Tooltips ] will
present additional pages for routing both analog inputs and USB sends to both/either USB device
jacks. See
Stream menu above for details.
Sample Rate
At the bottom of the Audio page (you may have to scroll down depending on the size and resolution
of your screen), choose the recording sample rate of the AUDIO4c from between 44.1, 48, 88.2*, and
96KHz*.
*Note: changing the sampling rate to 88.2 or 96KHz will render [ Stream ] mode unavailable.
AUDIO4c User Guide v2021-0002 Page 19
