49

A

d

di

tio

n

a

l I

nfo

CPU Cooler and Graphics Card Limitations

CPU Kühler und Grafikkarten Limitierungen / Limites du refroidisseur du CPU et de la carte graphique /

Limitaciones del sistema de refrigeración de la CPU y la tarjeta gráfica / Begränsningar för CPU-kylare och grafikkort /

Ограничения процессорного кулера и видеокарты / CPUクーラーとグラフィックスカードの制限 /

CPU散热风扇和显卡限值 / CPU散熱風扇與顯卡限制

CPU cooler
77 mm max

GPU width
43 mm max

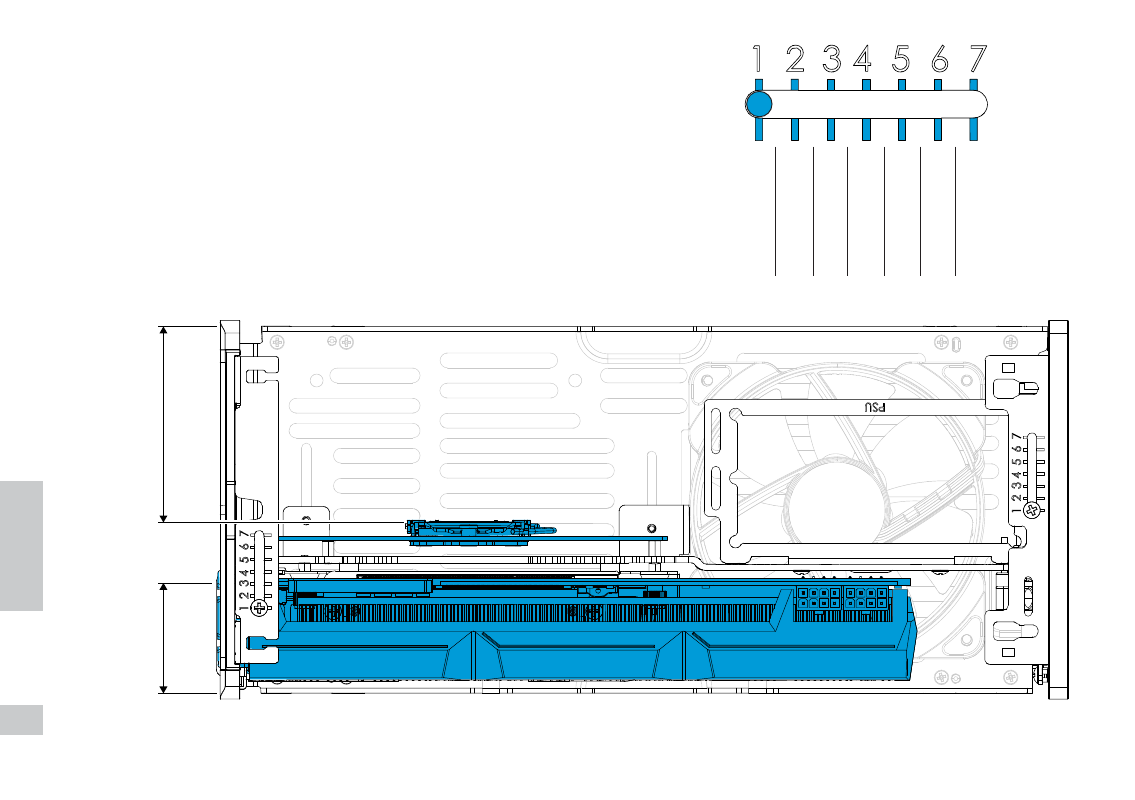

Spine Position 1 of 7 – MAX CPU Config

CPU Cooler

77

72 67 62 57 53

48

[mm]

GPU Width

(GPU Height <131 mm)

43

48 53 58 63 67

72

[mm]

GPU Width

(GPU Height <145 mm)

33

38 43 48 53 57 62

[mm]

Recommended max backplate width 4 mm
