APC Charge Mobile Power Supply for Surface Hub 2 7

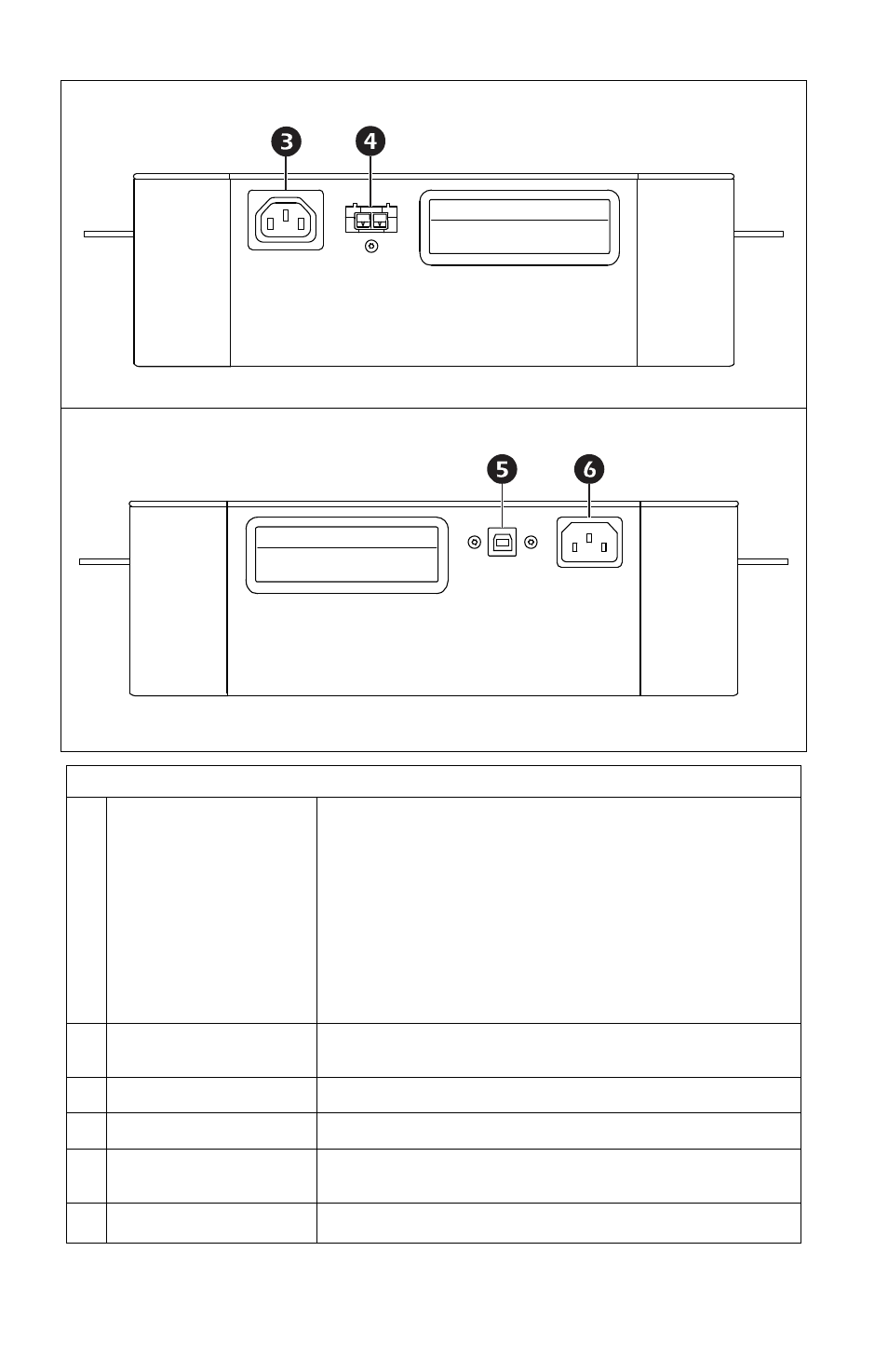

Side panel features 1
Side panel feature 2
Key To Identify Front Panel Features
 Status LEDs The 5 status LEDs indicate the state of charge in the
following manner:
• 0-20%
• 21%-40%
• 41%-60%
• 61%-80%
• 81%-100%
The LED1 turns red to indicate low battery of less than
12.5% state of charge.
 ON
/
OFF
button See “Power On/Off functionality” in the user manual for
details.
 AC Output Connector IEC 60320 C13
 DC Output Connector This connector provides regulated 24 VDC output.
 USB port Type B Use USB type B port for Battery parameters through
Human Interface Device (HID).
 AC Input Connector IEC 60320 C14
