PLACEMENT AND APPLICATIONS
WA N NG! Before placing, installing, rigging, or suspending any loudspeaker product, inspect all
hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any
missing, corroded, deformed, or non-load rated component could significantly reduce the strength of
the installation or placement. Any such condition severely reduces the safety of the installation and
should be immediately corrected. Use only hardware that is rated for the loading conditions of the
installation and any possible short-term, unexpected overloading.
Never exceed the rating of the hardware or equipment.
Consult a licensed, professional engineer regarding physical
equipment installation. Ensure that all local, state and national
regulations regarding the safety and operation of loudspeakers and
related equipment are understood and adhered to.
The CP Series is primarily designed for portable audio reinforcement. This includes a variety of
uses in reinforcement for entertainers and presenters. Both models are designed to perform well
on their own in full-range audio. They can be used as a single unit, in stereo pairs, or in distributed
or delayed systems.
Free Standing
Refer to Figure 3
Use the angled side for floor monitor applications, or placed vertically on a stage, subwoofer or
floor.
Pole Mounting
Refer to Figure 4 and Figure 5
Both models are equipped with a 35 mm pole socket that allows use on a loudspeaker stand or over
a subwoofer with a 35 mm pole socket capable of supporting the loudspeakers. Refer to Table 1 for
specifics about pole mounting the loudspeaker over a subwoofer.
WA N NG! Do not use a loudspeaker support pole longer than
specified in Table 1, when supported by a subwoofer.
— Table 1 —
CP Series
Subwoofers
KS212C KS112
CP8 36 inch (914 mm) 36 inch (914 mm)
CP12 36 inch (914 mm) 36 inch (914 mm)
Yoke Mounting
The CP Series loudspeakers have yoke accessories that attach to the top
and bottom of the loudspeakers. The yokes allow for rigid mounting to
structure surfaces and loudspeaker rotation. (Models CP8 YOKE / CP12
YOKE)
For portable installations, use the Yoke Knob to quickly, and easily mount
the loudspeakers on the yoke, Use the Yoke Mounting Bolt for more
permanent installations. Each yoke has threaded inserts to store either the
Yoke Knob or the Yoke Mounting Bolt. Refer to the CP Series Yoke Mounting
Quick Start Guide for details.

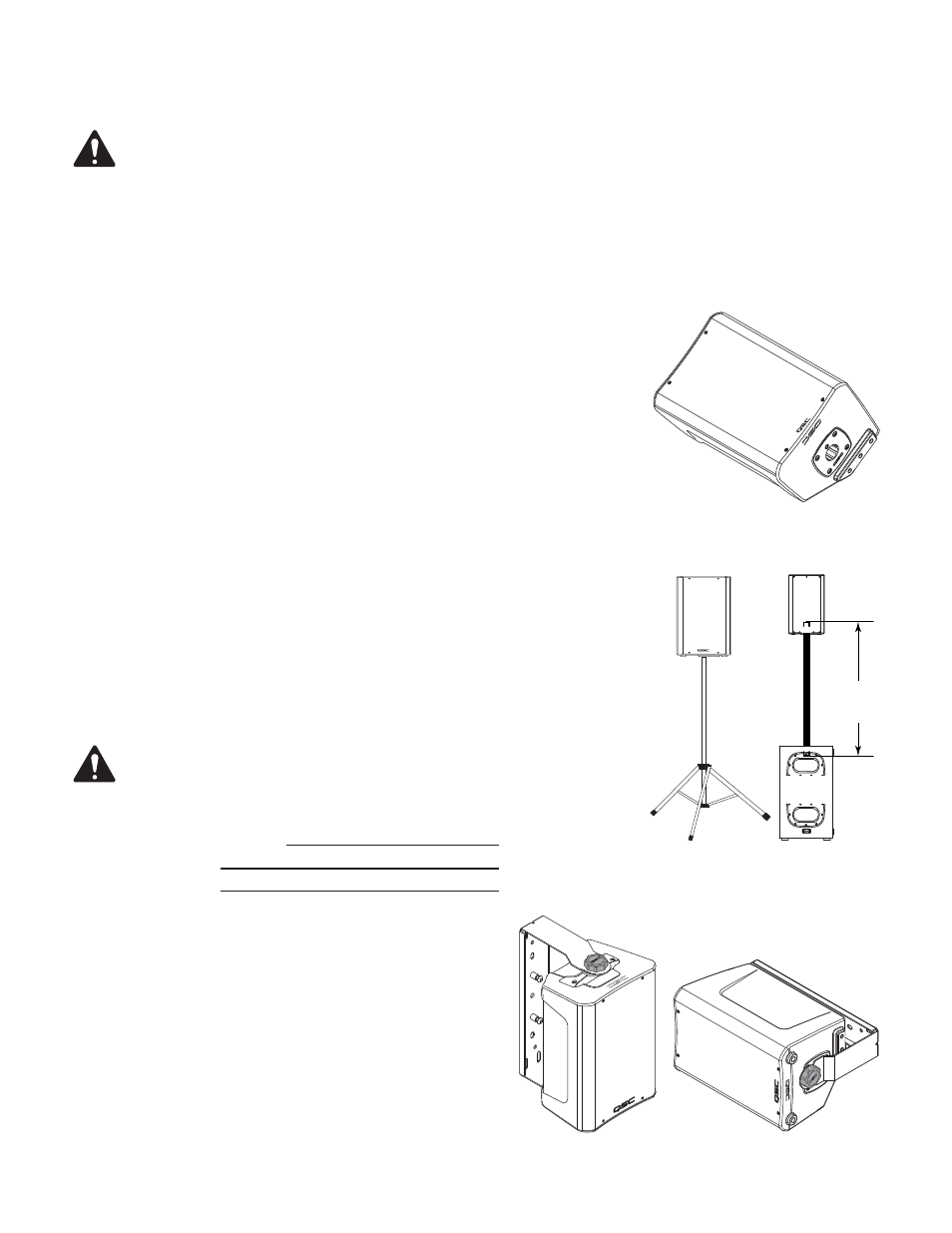

— Figure 3 —
— Figure 4 — — Figure 5 —
CP8
CP12
KS212C
KS112
Maximum
36 inch
(914 mm)
— Figure 6 — — Figure 7 —
