Advanced setup with macos mojave – Audio-Technica ATR2100x-USB Cardioid Dynamic USB/XLR Microphone User Manual
Page 7
7
Advanced Sound Settings
1.
At this point the Mac is set up to use the ATR2100x-USB microphone as the input device and your selection as
the output device. The sample rate is set for the default value (44.1 KHz CD Quality). However, additional settings
are available that enable you to change the audio sampling rate and individually adjust left and right input signal
levels if you desire.

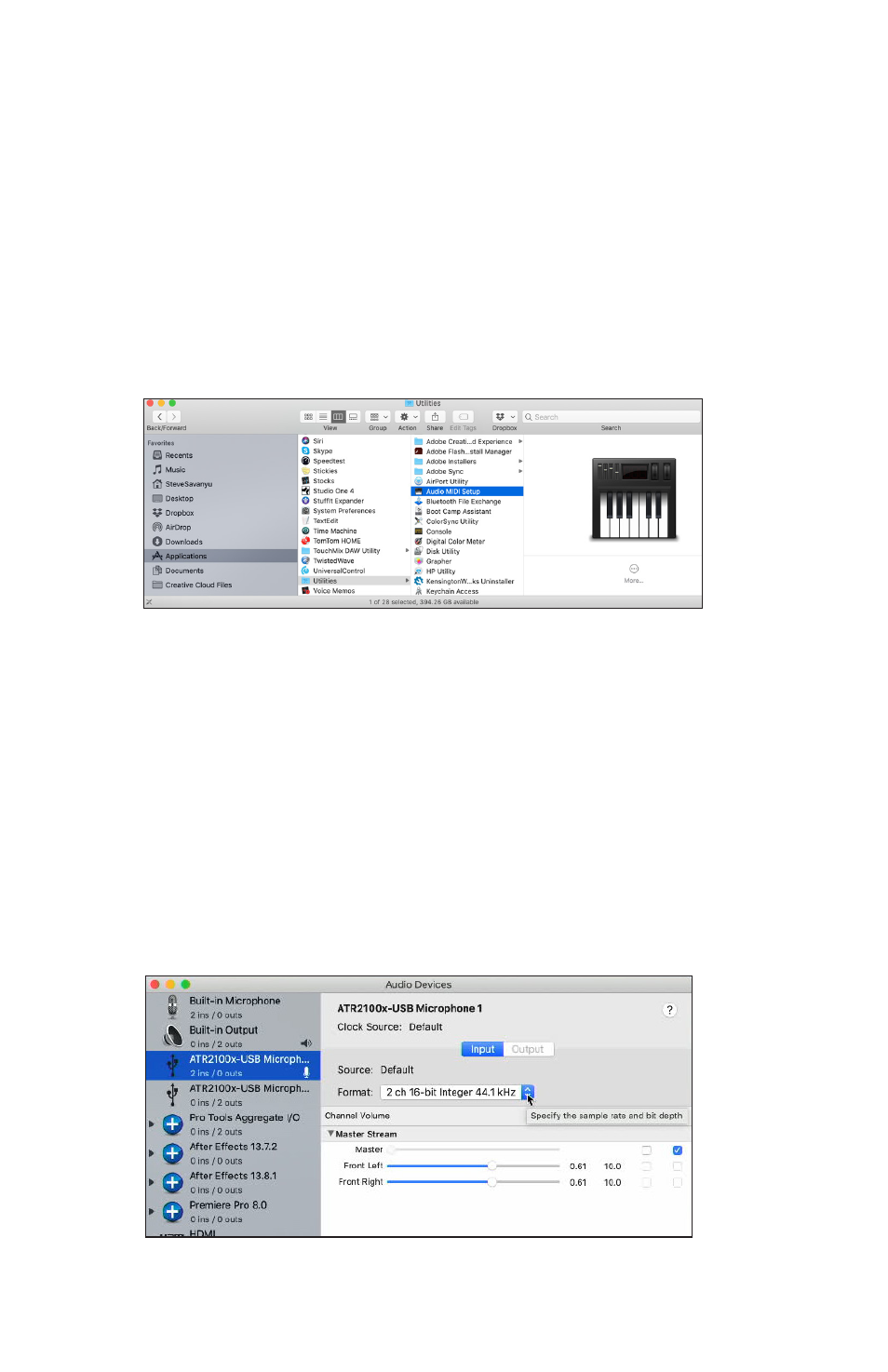

To access these settings, open a new finder window and navigate to “Applications—Utilities” and double-click the
Audio MIDI Setup application.
Advanced setup with MacOS Mojave
Audio MIDI Setup
2.
A list of audio devices appears on the left side and the adjustable settings for the selected device appear on the right.
The ATR2100x-USB appears as two separate devices. One is an input device (2 ins / 0 outs) while the other
represents its output (0 ins / 2 outs).
Clicking the input device (2 ins / 0 outs) shows the current settings.
The Format section contains the sample rate settings.
The Master Stream section allows you to individually adjust the microphone signal levels for the
left and right audio inputs.
Select input version ATR2100x-USB with 2 ins / 0 outs
