PG-01 PANO-
GIMBAL HEAD
SPECIFICATIONS:
Load Capacity ............................................................................. 8 pounds / 3.6kg
Mounting socket ............................................................centered 3/8”-16 in base

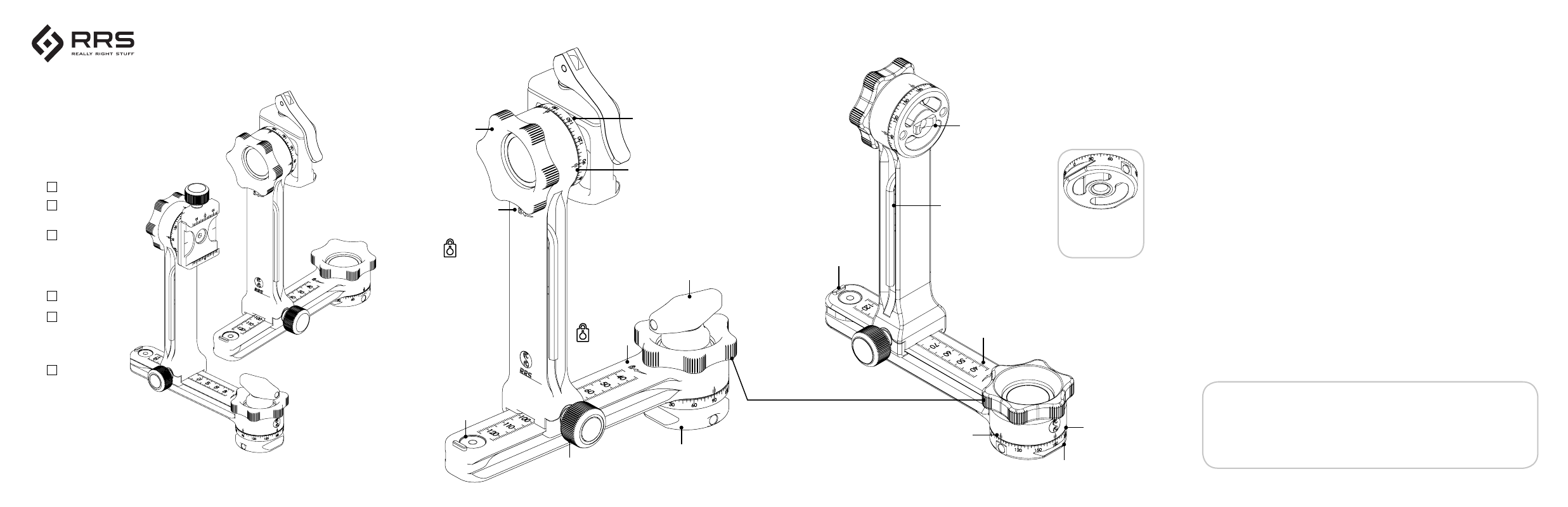

PG-01 with LEVELING BASE PG-01 with FLAT BASE
Tilt axis is laser engraved
in 2.5° increments from
0-360°; scale is lasered in 30°
increments.
Pan axis is laser
engraved in 2.5°
increments from
0-360°; scale is
lasered in 30°
increments.
Pan Lock Knob
Flat Base with dovetail
fits any RRS-style clamp.
Three index marks in 90°
intervals aid in repeatable
positioning.
Tilt face with anti-twist boss,
centered ¼”-20 socket, two
M5 sockets spaced 30mm on
center.
Integral tool
storage for 5/32”
hex key.
Horizontal Bar is lasered in 1mm increments
from 35mm to 125mm relative to center
of pan axis; scale is lasered in 10mm
increments.
Three index marks in 90°
intervals aid in repeatable
positioning.
Rotate Knob
in direction of
Lock Symbol to
lock tilt
axis.
Tilt Lock
Knob
15mm bullseye
level aids
in precision
leveling.
Leveling Base
Lock Lever
Integral
safety
stop helps
prevent
accidental
release.
Leveling Base with
dovetail fits any
RRS-style clamp.
Vertical Arm
Position Lock Knob
NODAL SLIDE
MPR-CL
CLAMP
B2-40 LR
B2-mAS
PG-01
PG-01 VA
PG-01 HB
with
Flat Base
PG-01 HB
with
Leveling Base
GUARANTEE
ALL REALLY RIGHT STUFF BRAND PRODUCTS ARE GUARANTEED TO
THE ORIGINAL PURCHASER TO BE FREE OF DEFECTS IN MATERIALS OR
WORKMANSHIP FOR FIVE (5) YEARS FROM THE DATE OF PURCHASE.
PRODUCTS WILL BE REPAIRED OR REPLACED AT OUR OPTION.
Both models
feature 3/8”-16
mounting socket
in base.
® , ™, © 1990-2017 Really Right Stuff, Inc. All rights reserved.
Rotate Knob
in direction of
Lock Symbol to
lock pan
axis.
MAINTENANCE
GENERAL CARE
The components are finished with a protective anodized plating that
protects them from corrosion and mild abrasion. It does not protect from
scraping against or dropping on rocks/concrete/etc. Note that the Tilt,
Pan, and Leveling Base lock knobs are
not captive; they can be completely
removed if you continue to unscrew them. We recommend storing the PG-01
in our optional
OpTech® Large padded pouch.
Cleaning
If the PG-01 is fouled, dry dust and dirt can be blown off and/or wiped off
with a soft cloth.
If contaminated by salt water, the unit should be fully
disassembled, cleaned with fresh water, thoroughly dried, then greased
where necessary before re-assembly. Do not disassemble in the field
where you are prone to lose small parts.
LUBRICATION
Grease is applied at the factory to all knob threads, and also to the conical
rings inside the pan and tilt mechanisms. If unit is disassembled for cleaning,
apply a light coat of silicone grease to these clean surfaces during re-assembly.
PG-01 V
A
PG-01 V
A
PG-01 with
Flat Base
Shown with B2-40 LR clamp. Shown with no clamp installed.
PG-01 with
Leveling Base
