TP-Link Deco BE85 BE22000 Tri-Band 10G / 2.5G Whole Home 3-Piece Mesh System User Manual
Page 53
50
* Features available in Deco may vary by model and software version. Deco availability may also vary by region or ISP.

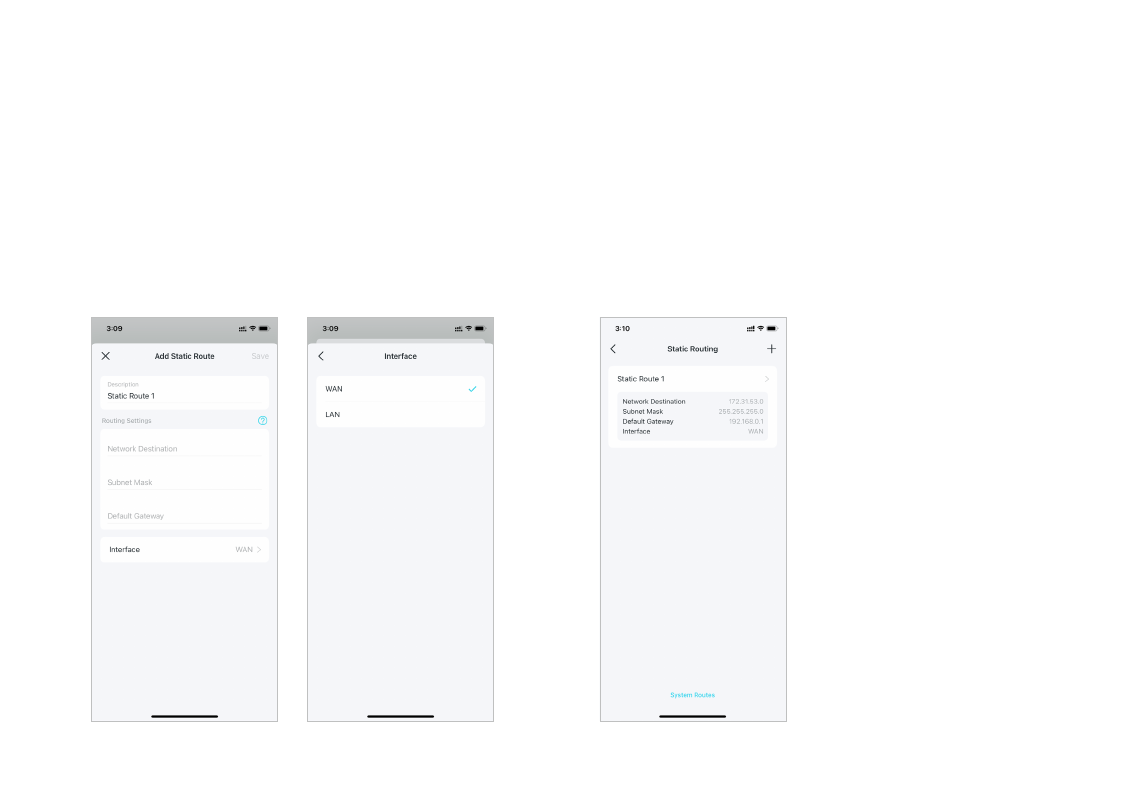

2. Fill in the necessary information.
• Description:
Specify a description for the routing entry.
• Network Destination:
The network destination is the address of the
network of host that you want to assign to a static route.
• Subnet Mask:
The Subnet Mask divides the network portion and the
host portion of an IP address.
• Default Gateway:
This is the IP address of the default gateway device
that allowing for the contact between the router and the network or
host.
• Interface:
Select the interface to specify the type of the network
destination.
3. After you save the settings, if
the entry you have set appear
on the screen, the static
routing is set successfully.
