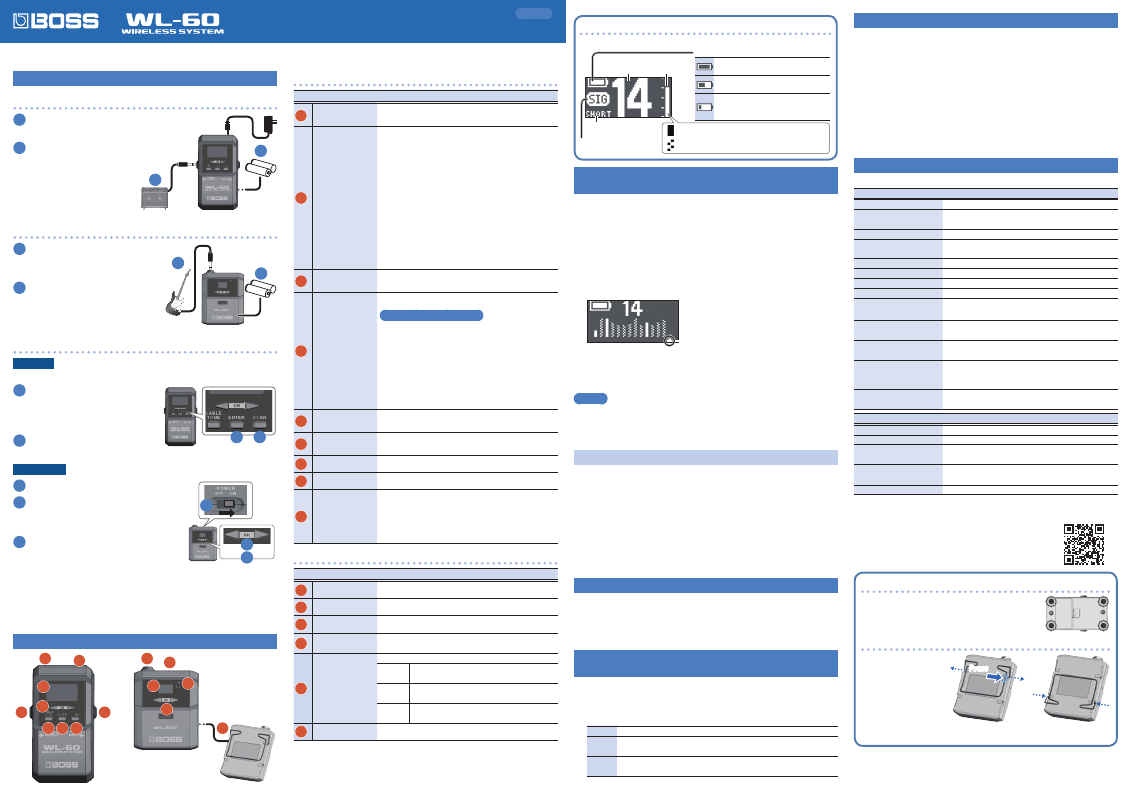

BOSS WL-60 2.4 GHz Wireless System for Electric Guitars and Basses - Manual

Quick Start
1. Preparing the receiver
1 Install batteries, or
connect the AC adaptor
2 Connect to your amp or
effect unit (the receiver
powers-on)
1
2
on rear
panel
2. Preparing the transmitter
1 Install batteries
* Do not power-on the transmitter at
this point.
2 Use the included cable to
connect your guitar
1
2
3. Selecting the channel
Receiver
* Before you proceed, make sure that the transmitter is powered-off.
1 Press the [SCAN] button to
enter scan mode
The channel with the least radio
interference is detected automatically.
2 Press the [ENTER] button to
confirm the channel
1 2
Transmitter
3 Power-on the transmitter
4 Press either of the [CH] ( C A )
buttons; the display shows the
channel
5 Use the [CH] ( C A ) buttons to
select the same channel as the
receiver
4
5
3
* To prevent malfunction and equipment failure, always turn down the
volume, and turn off all the units before making any connections.
* If you handle batteries improperly, you risk explosion and fluid leakage.
Make sure that you carefully observe all of the items related to batteries that
are listed in the leaflet “USING THE UNIT SAFELY.”
Panel Descriptions
1 2
3
4
5
6 7 8
9
10
11
12
13
14
15
Receiver (WL-60)
No. Name Explanation
1 IN jack
Connect the AC adaptor (PSA-S series: sold
separately) to the IN jack.
2 OUT jack
When an AC adapter is used, you can connect
a PCS-20A parallel DC cord (sold separately) to
supply power to effects processors and other PSA-S
adaptor-compatible gear.
* Power cannot be supplied from the OUT jack
when the WL-60 is running on batteries.
* If you use the PCS-20A to supply power to devices
that are compatible with PSA-S adaptors, make
sure that the total current consumption of all
devices (including the WL-60) does not exceed
the maximum output current of the PSA-S series
unit you’re using. The maximum output current is
listed in the OUTPUT field of the label affixed to
the adaptor itself.
3 Display
Displays information such as the channel and the
radio signal strength.
4 OUTPUT jack
Connect this to your amp or effect unit.
Turning the power on/off
The OUTPUT jack doubles as the power switch.
Power to the unit is turned on when you plug into
the OUTPUT jack; the power is turned off when the
cable is unplugged.
When powering up:
Turn on the power to your amp last.
When powering down:
Turn off the power to your amp first.
5
[CH] ( C A )
buttons
Select the channel or move the cursor.
6
[CABLE TONE]
button
Simulates the tonal character of a guitar cable.
7 [ENTER] button Confirms an operation.
8 [SCAN] button Selects the receiver’s channel automatically.
9 INPUT jack
Connect your guitar here if wireless use becomes
difficult, such as if the transmitter batteries run low
or if the radio-frequency spectrum is congested.
* If a guitar is connected, operations of the unit and
its wireless functionality are disabled.
Transmitter (WL-60T)
No. Name Explanation
10 [POWER] switch Turns the power on/off.
11 INPUT jack Use the included cable to connect your guitar here.
12 Display Indicates the channel.
13
[CH] ( C A )
buttons
Select the channel.
14
POWER/
BATTERY
indicator
Indicates the power supply status.
Green
The batteries have sufficient remaining
capacity.
Orange
The batteries will be exhausted in less than
two hours.
Red
The batteries will be exhausted in less than
30 minutes. Replace the batteries.
15 Strap clip Attach this to your guitar strap.
Owner’s Manual
© 2019 Roland Corporation
Play mode screen
The Play mode screen appears immediately after the power is turned on.
Channel
Radio reception
strength
Receiver’s remaining battery capacity
CABLE TONE setting
Shown when outputting
audio via wireless
Low
High
The batteries have sufficient
remaining capacity.
The batteries will be exhausted in
less than two hours.
The batteries will be exhausted in
less than 30 minutes. Replace the
batteries.
Radio signal of the WL-60T
Other radio signals
Selecting the Receiver’s Channel Automatically (Scan
Mode)
Scan mode automatically selects the channel that has the least radio-
frequency interference.
* Use Scan mode to re-select the channel before your actual live
performance, or when you are in a new location.
* If other wireless systems will be in use nearby, put them in operating
condition.
1. Power-off the transmitter.
2. Press the [SCAN] button to enter scan mode.
The channel with the least radio interference is automatically selected.
Channel with the least radio interference
* If numerous wireless systems or radio devices (such as Wi-Fi routers or
Bluetooth devices) are operating nearby, there might be radio interference
on all channels. Power-off unused radio devices, and then use Scan mode
once again to select a channel.
MEMO
You can also use the [CH] ( C A ) buttons to change to another channel.
3. Press the [ENTER] button to confirm the channel.
4. Power-on the transmitter.
Selecting the Receiver’s Channel Manually
If you already know the channel that can be used, you can select the channel
manually.
1. Power-off the transmitter.
2. In the Play mode screen, use the [CH] ( C A ) buttons to
select a channel.
* Note the radio reception strength shown in the display, and select a channel,
avoiding any channel that is used by another WL-60T unit or any channel
that has significant radio interference (high radio reception strength).
3. Power-on the transmitter.
Selecting the Transmitter’s Channel
1. Press either of the [CH] ( C A ) buttons to make the
channel appear in the display.
2. Use the [CH] ( C A ) buttons to select the same channel as
the receiver.
Simulating the Tonal Character of a Guitar Cable
(CABLE TONE)
Here’s how to simulate the tonal character of a guitar cable.
1. Press the [CABLE TONE] button to change the setting.
Each time you press the button, the setting alternates in the order of
“OFF 0 SHORT 0 LONG.”
OFF Off
SHORT
The character of a guitar cable approximately three meters (9.8
feet) long
LONG
The character of a guitar cable approximately six meters (19.6
feet) long
For Stable Wireless Communication
• Do not place obstructions between the receiver and the transmitter. Do
not allow too much distance between the receiver and transmitter.
• Keep the receiver at least three meters (9.8 feet) away from any radio
device (*1) or microwave oven.
• Dropouts might occur in the audio if the radio conditions in the area
change. Use Scan mode once again to select the channel.
If this does not solve the problem, power-off any unused radio device (*1)
or microwave oven, and use Scan mode once again to select the channel.
• If you hear the sound of a different guitar, use scan mode once again
to select a different channel. If you're using multiple WL-60T units
simultaneously, manually select a channel that does not conflict.
*1: Such as a Wi-Fi router or Bluetooth device
Main Specifications
BOSS wireless system: WL-60
Receiver
Wireless Format
BOSS proprietary digital audio format
Wireless Carrier
Frequency
2.4 GHz
Compatible Channels 14 (May vary due to local conditions)
Transmission Range
20 meters (65 feet) line-of-sight (May vary due to
local conditions)
Latency 2.3 ms
Dynamic Range 110 dB or greater
Frequency Response 20 Hz–20 kHz
Nominal Input Level -10 dBu
Power Supply
Alkaline battery (AA, LR6) x 2,
AC adaptor (sold separately)
Dimensions (including
rubber foot)
70 (W) x 120 (D) x 57 (H) mm/
2-13/16 (W) x 4-3/4 (D) x 2-1/4 (H) inches
Weight (including
batteries)
220 g / 8 oz
Accessories
Owner’s Manual, Leaflet USING THE UNIT SAFELY,
Transmitter (WL-60T), Cable, Rubber foot x 4,
Alkaline battery (AA, LR6) x 2
Options (sold
separately)
AC adaptor: PSA-S series
Parallel DC cord: PCS-20A
Transmitter (WL-60T)
Nominal Input Level
-10 dBu
Power Supply Alkaline battery (AA, LR6) x 2
Dimensions (including
strap clip)
68 (W) x 88 (D) x 30 (H) mm/
2-11/16 (W) x 3-1/2 (D) x 1-3/16 (H) inches
Weight (including
batteries)
120 g / 5 oz
Accessory Alkaline battery (AA, LR6) x 2
* This document explains the specifications of the product at the time that
the document was issued. For the latest information, refer to the Roland
website.
https://roland.cm/wl-60_spec
Attaching the rubber feet
Attach the included rubber feet as necessary, such
as if you are placing the receiver on the floor.
Changing the orientation of the strap clip
By reversing the vertical
orientation of the strap
clip, you can attach
the transmitter to your
guitar strap in a different
position.
* When attaching or
detaching the strap clip, take care not to scratch the unit.
Press
0 dBu = 0.775 Vrms
0 dBu = 0.775 Vrms
English
