CABINETRY DIMENSIONS
OB24SDPT MODELS
INCHES MM
A Minimum inside width of cavity 21 1/16 560
B Overall width of cabinetry 23 5/8 600
C Minimum inside height of cavity 22 13/16 580
D Overall height of cabinetry 23 5/8 600
E Minimum inside depth of cavity 21 5/8 550
If installing a cooktop above the oven, ensure adequate clearance is provided as per the cooktop manufacturer’s instructions.

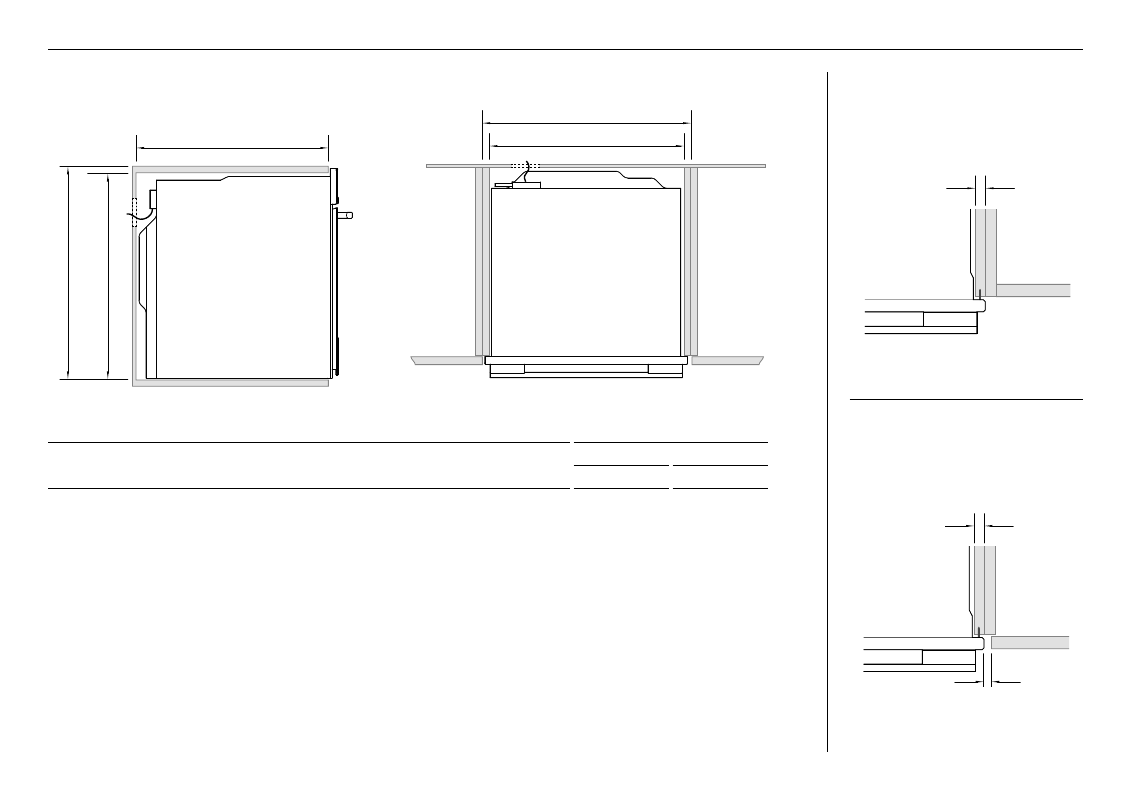

CABINETRY DIMENSIONS
PROFILE PLAN
d c
e
b
a
PROUD INSTALL
FLUSH INSTALL
5/8 - 13/16”
(16-20mm)
5/8 - 13/16”
(16-20mm)
min. 1/16”
(2mm)
