Hunter 23702 52 Hotel Original - Manual (Page 12)

Hunter Fan Company 42704-01 • 01/29/07

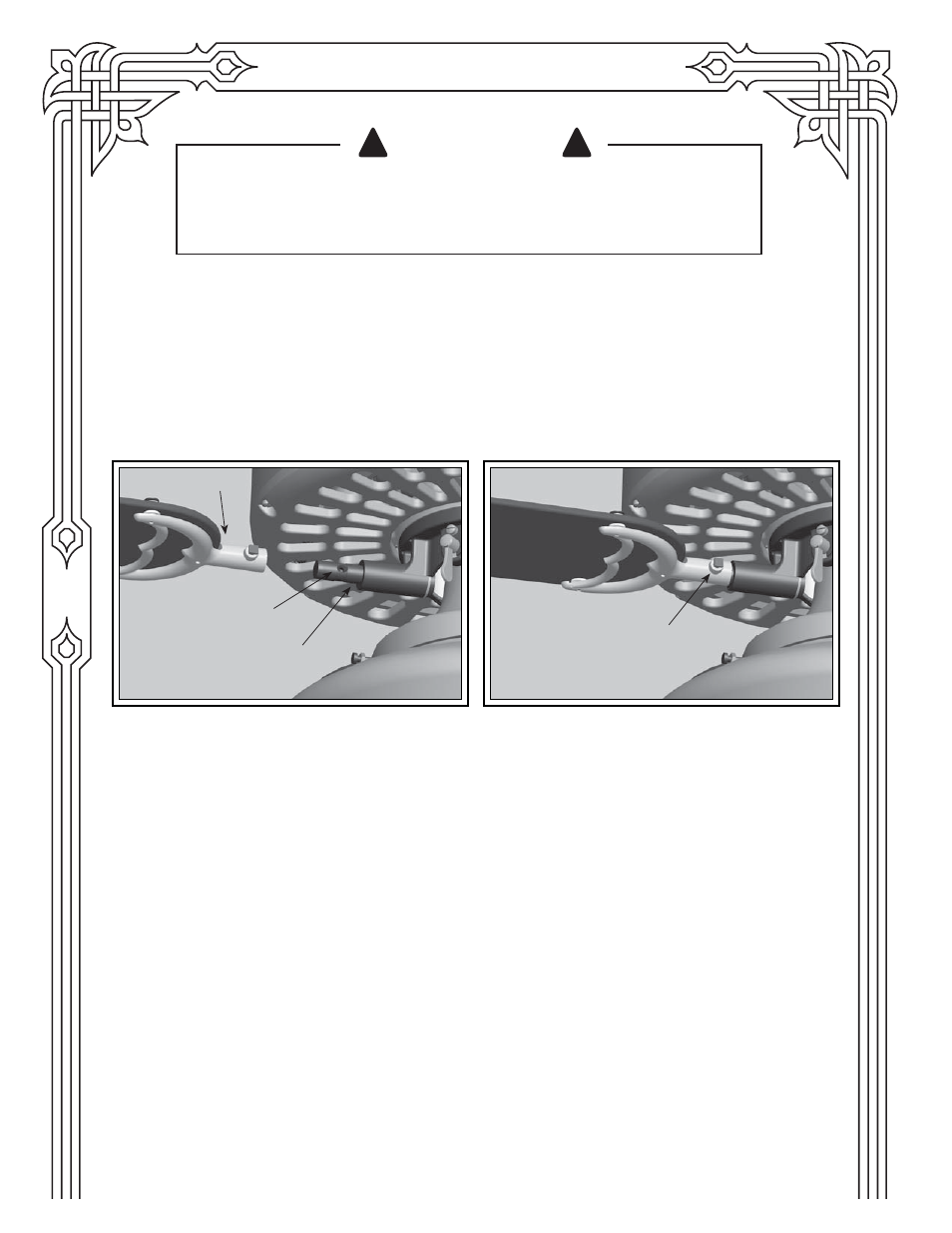

Fig. 15
Installation Of Fan Blade Assembly
1. Loosen the blade assembly screw, but do not remove.
2. Align the blade blase assembly screw with the Adapt Air blade shaft counter sink (see Fig. 14).
3. Slide the blade assembly onto the Adapt Air blade shaft. (see Fig. 15).
4. Before tightening the blade assembly screw, slightly turn blade assembly while hand tightening the
set screw.
5. Tighten the blade assemble screw with pliers or adjustable wrench.
CAUTION
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE
BRACKETS WHEN INSTALLING THE BRACKETS, BALANCING THE
BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
IN BETWEEN ROTATING FAN BLADES.
! !
Fig. 14
12
Fan Blade Assembly
Blade Assembly
Screw
Adapt Air
Blade Shaft
Blade
Counter Sink
