A-2 INSTALLATION
SP-125 PLUS
Read entire installation section before starting
installation.
SAFETY PRECAUTIONS
IDENTIFY AND LOCATE
COMPONENTS
If you have not already done so, unpack the SP-125
Plus from its carton and remove all packing material
around the SP-125 Plus. Remove the following loose
items from the carton (see Figure A.1):
1. SP-125 Plus
2. Gun and cable assembly (1)
3. Literature and miscellaneous including:
a) This operating manual
b) A contact tip for .030” (0.8 mm) diameter wire.
4. 10 ft (3.0 m) work cable.
5. Work clamp.
6. Sample Spool of L-56 .025 MIG Wire.
7. Adjustable mixed-Gas Regulator & Hose.
For available options and accessories refer to the
accessories section later in this manual.
1) As shipped from the factory, the SP-125 Plus gun is
ready to feed .023 or .025 (0.6 mm) wire.
ELECTRIC SHOCK can kill.
• Only qualified personnel should perform
this installation.
• Only personnel that have read and under-
stood the SP-125 Plus Operating Manual
should install and operate this equipment.
• Machine must be plugged into a receptacle
which is grounded per any national, local
or other applicable electrical codes.
• The SP-125 Plus power switch is to be in
the OFF (“O”) position when installing
work cable and gun and when connecting
power cord to input power.
WARNING

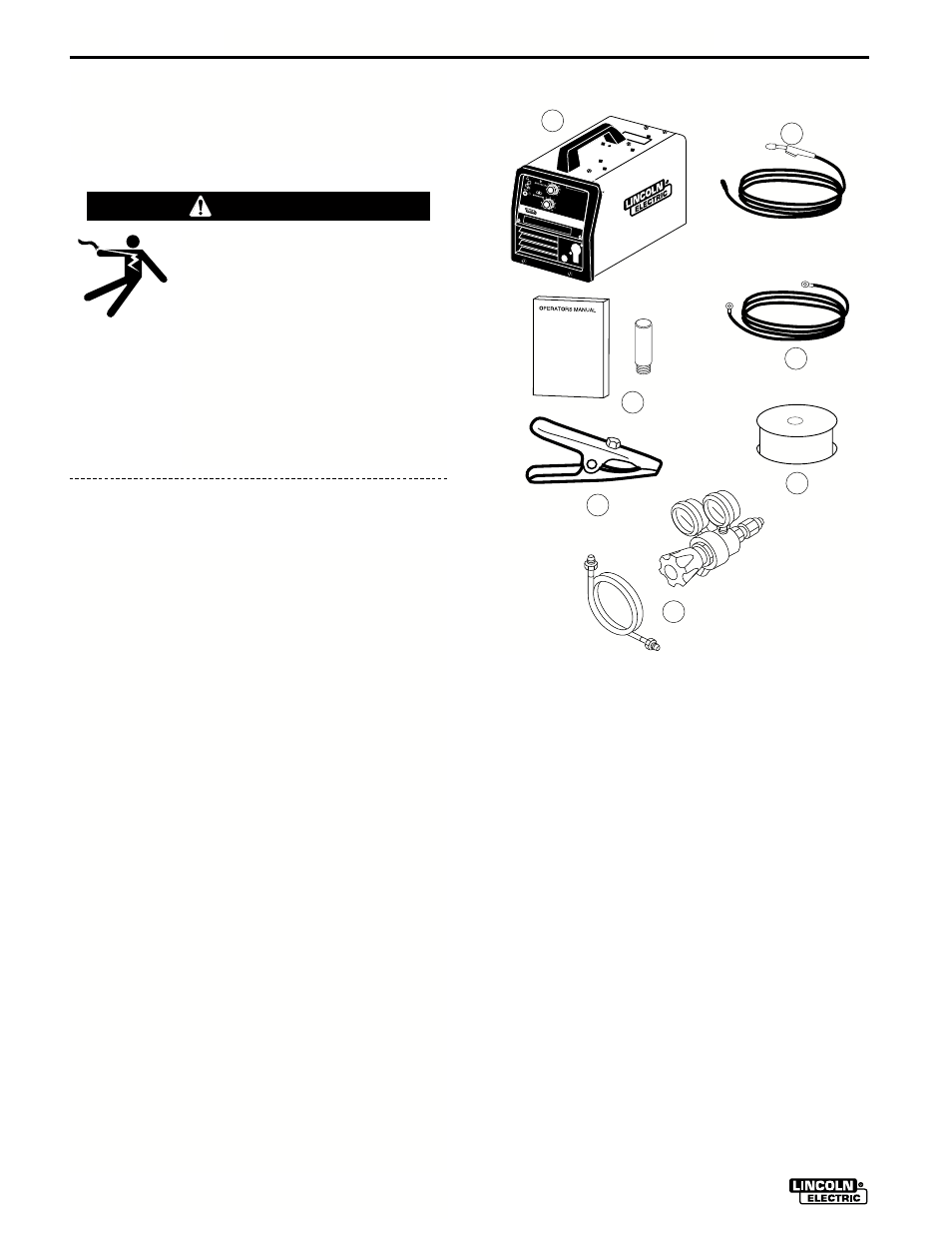

FIGURE A.1
1
2
3
4
5
WELD ING AM P RAN GE
WELD ING AM P RAN GE 2 5-125 25 -125
6
7
