CV-400
www.lincolnelectric.com [3]

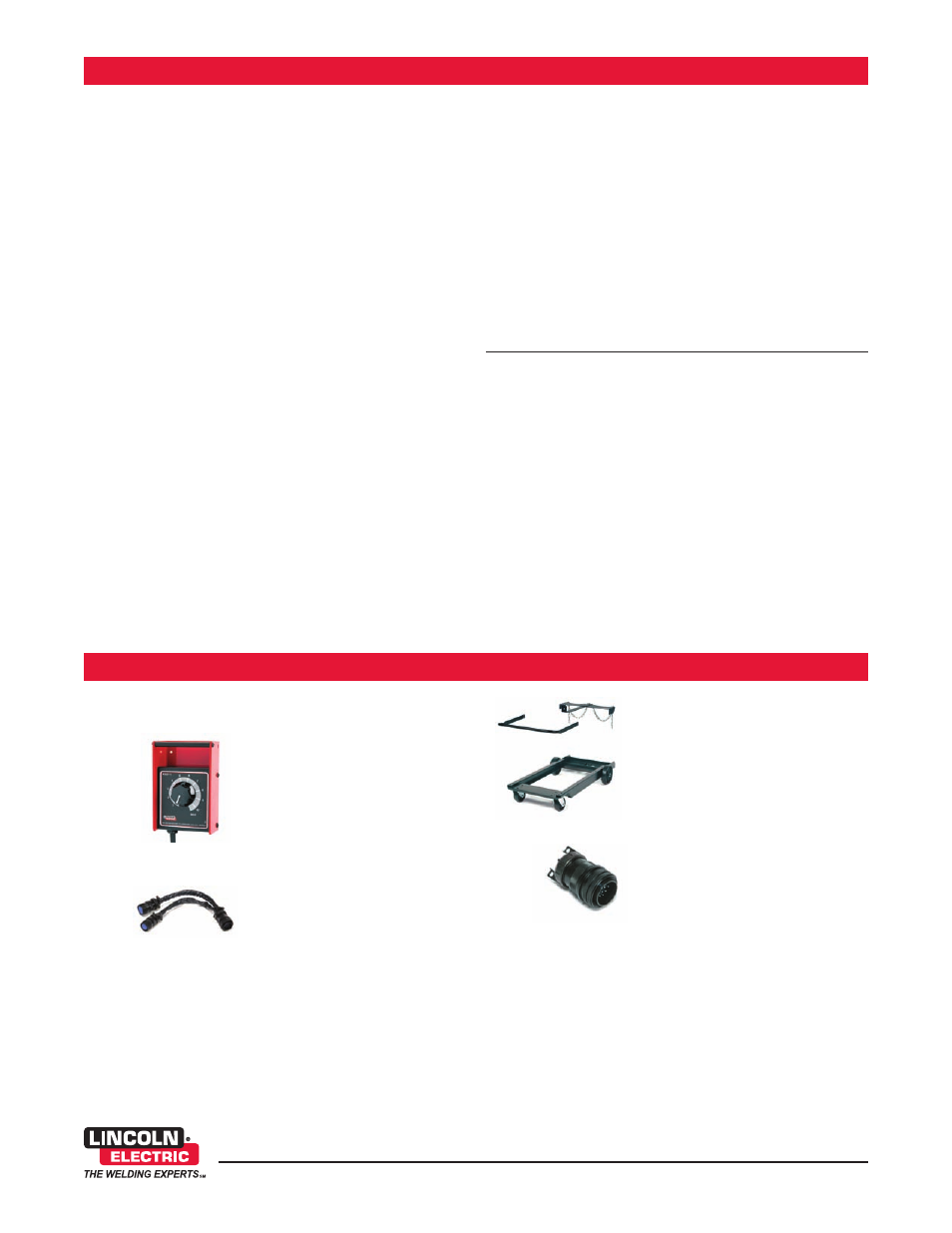

A CLOSER LOOK
Undercarriage
Platform undercarriage with
mountings for two gas cylinders
at rear of welder.
Order K841
Jumper Plug Kit
Required to close the contactor
in the power source when the
power source is used with a
remote output contactor such as
the contactor in the K449 LN-25,
or K1870-1 LN-15 wire feeder.
Order K484
GENERAL OPTIONS
Remote Output Control
Consists of a control box with
choice of two cable lengths.
Permits remote adjustment of
output. 6-pin connection.
Order K857 for 25 ft. (7.6m).
Order K857-1 for 100 ft. (30m).
Remote Control Adapter
Y connection adapter for connect-
ing K857 Remote Output Control
(6 pin plug connection) and wire
feeder input cable (14-pin plug
connection) to power source
14-pin receptacle.
Order K864
RECOMMENDED OPTIONS
CV-400 / LN-742 Wire Feeder
Best for applications where more process control is required –
for arc starting, welding and crater control!
• CV-400 Power Source K1346-13
• LN-742 (Two Roll) Wire Feeder K617-1
• Control Cable – 10 ft. (3.0m) K1819-10
• .045" (1.2mm) Drive Roll & Guide Tube Kit KP653-052S
• Universal Stand K1524-1
• Swivel Platform K1557-1
• Magnum 400 Gun & Cable Assembly K2286-1 (1)
and Connector Kit
• 600 Amp Weld Cable K1842-10 (2)
• Work Clamp K910-2
• Harris Flowmeter Regulator and Gas Hose K586-1
• Undercarriage (twin cylinder) K841
CV-400 / LN-10 Wire Feeder
Where premium welding performance and control is demanded –
this system delivers!
• CV-400 Power Source K1346-13
• LN-10 Wire Feeder K1559-3
• .045" (1.2mm) Drive Roll & Guide Tube Kit K1505-045S
• Swivel Platform K1557-1
• Magnum 400 Gun & Cable Assembly K471-21 (1)
and Connector Kit
• 600 Amp Weld Cable K1842-10 (2)
• Work Clamp K910-2
• Harris Flowmeter Regulator and Gas Hose K586-1
• Undercarriage (twin cylinder) K841
CV-400 / DH-10 Wire Feeder
For maximum welding flexibility – select the DH-10 dual feeder.
Weld with two different types and sizes of wire – with two different
welding procedures!
• CV-400 Power Source K1346-13
• DH-10 Wire Feeder K1499-3
• .045" (1.2mm) Drive Roll & Guide Tube Kit KP1505-045S (2)
• Magnum 400 Gun & Cable Assembly K471-21 (1)(2)
and Connector Kit
• 600 Amp Weld Cable K1842-10 (2)
• Work Clamp K910-2
• Harris Flowmeter Regulator and Gas Hose K586-1
• Undercarriage (twin cylinder) K841
(1)Fully assembled, gun connector included.
(2)Two required.
Typical MIG Welding Systems
