506503-01
Page 26 of 44
Issue 1031

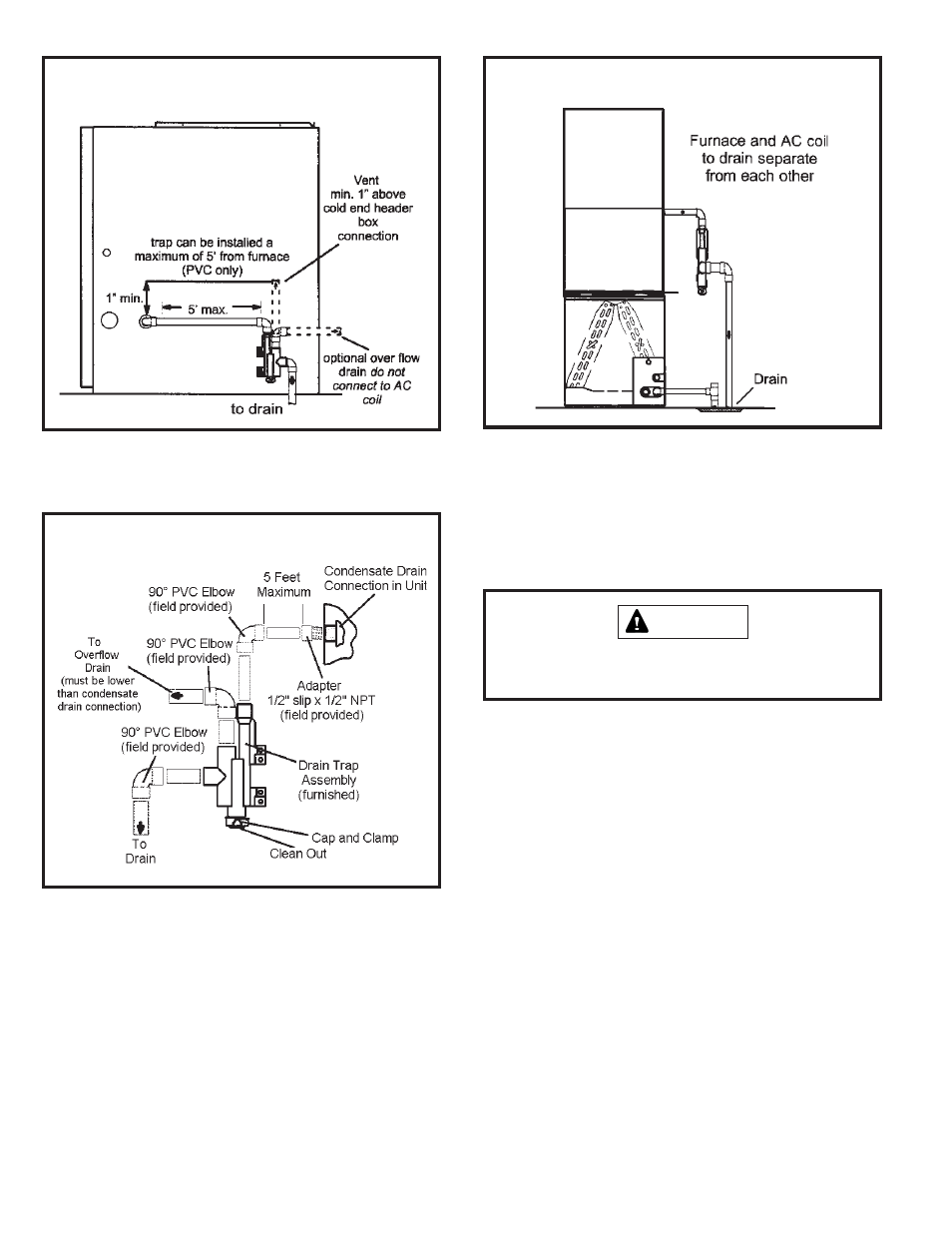

CONDENSATE ASSEMBLY
Figure 40
Figure 39
CONDENSATE TRAP LOCATION
(shown with right side exit of condensation)
Figure 41
UNIT WITH EVAPORATOR COIL
Do Not use copper tubing or existing copper condensate
lines for drain line.
CAUTION
