Connecting a Digital Audio System
1
If your audio system has a coaxial digital
audio input, connect to the “COAXIAL
OUT” jack on the TV.
2 If your audio system has a optical digital
audio input, connect to the “OPTICAL
OUT” jack on the TV.
Be certain to remove the black cover from
the optical output before inserting the
cable.

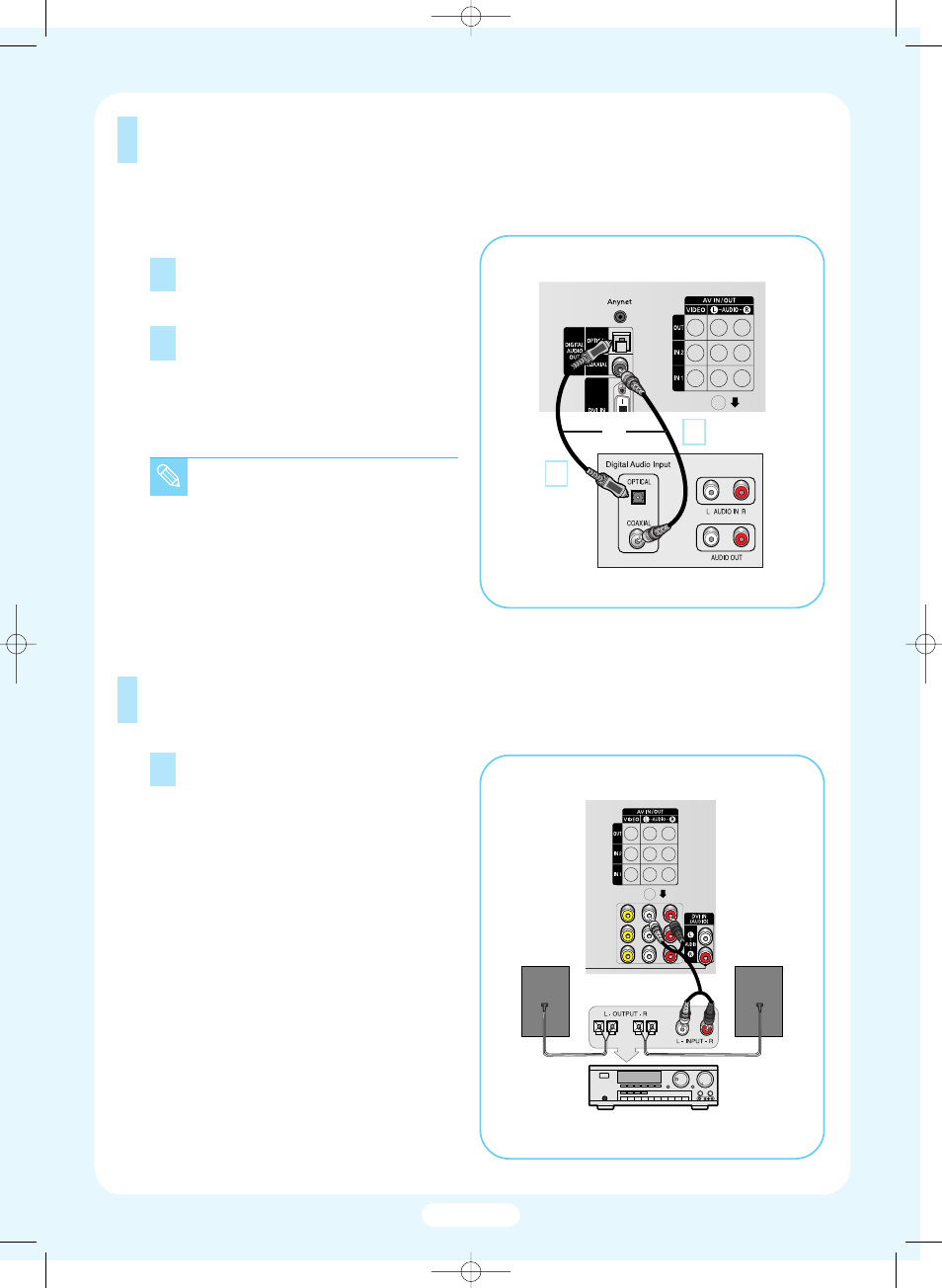

There are many types of digital audio systems on the market today.
A simplified illustration of an audio system is shown below. For more information, see your audio
system owner’s manual.
1
The “AUDIO OUT” terminals cannot be
used for external speakers. You must
hook them up to an amplifier.
When an audio amplifier is connected to
the “AUDIO OUT” terminals: Decrease the
gain (volume) of the audio amplifier, and
adjust the volume level with the volume
control on the TV.
TV Rear Panel
Audio System
TV Rear Panel
Amplifier
Connecting to an Analog Amplifier
• OPTICAL: Converts the electric
signal into an optical light signal,
and transmits it through glass fibers.
A transmission system of digital
audio in the form of a light wave,
S/PDIF format using a glass
conductor.
• COAXIAL: The digital audio signal
is received through a coaxial copper
cable.
