(5) LAND DIMENSION (Ref.)
PCB: GLASS EPOXY t＝1.6mm

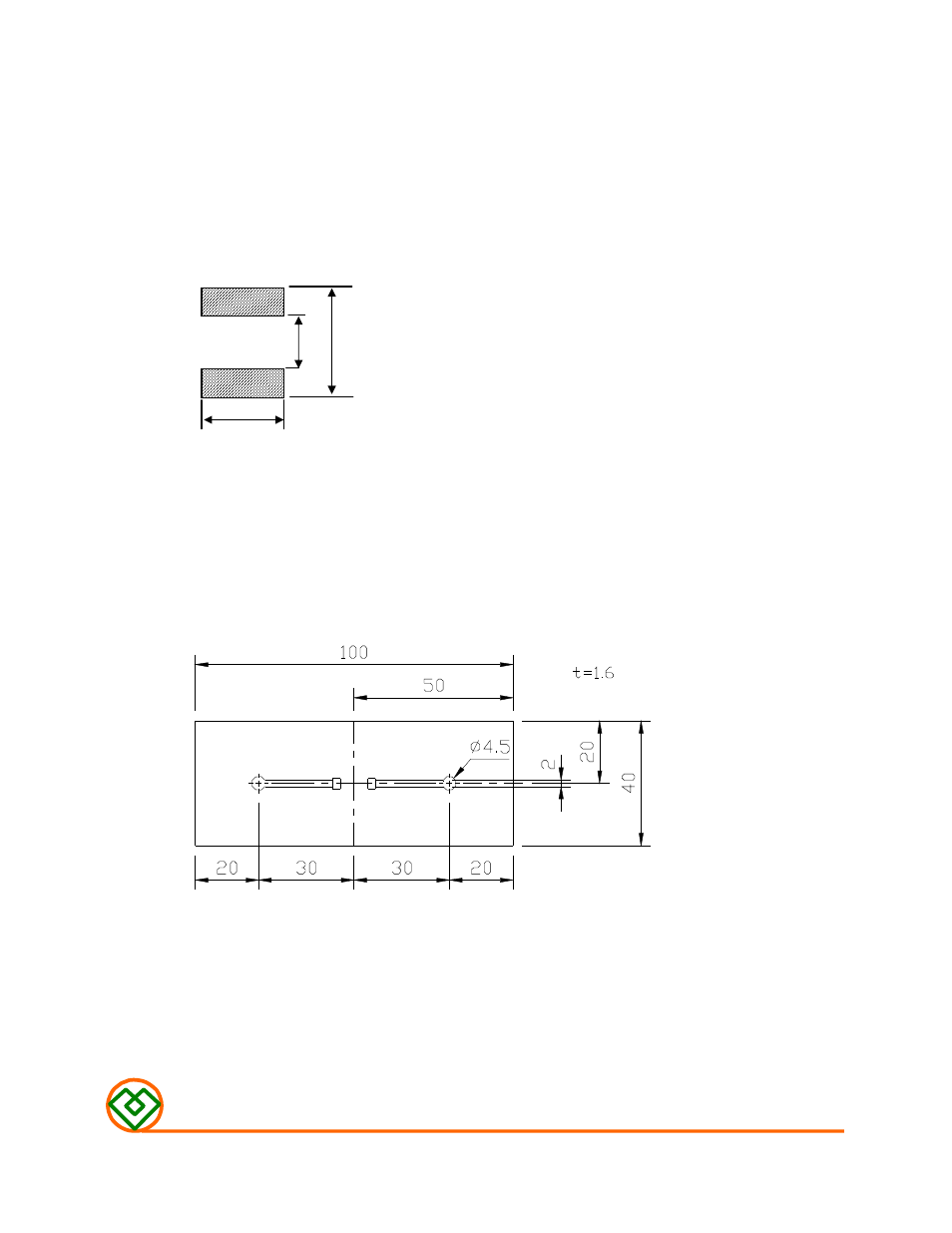

(5)-1 LAND PATTERN DIMENSIONS
(STANDARD PATTERN)
Unit:mm
(5)-2 SUBSTRATE BENDING TEST BENDING TEST BOARD
Page-6/8
MSCDRI-104R-SERIES
3.2
7.3
10
.7
