• Atlona 8-input 2-output Professional Video Scaler (AT-PR082)
• Instruction Manual
• IR Remote Control
• Universal AC/DC power adapter: 12VDC

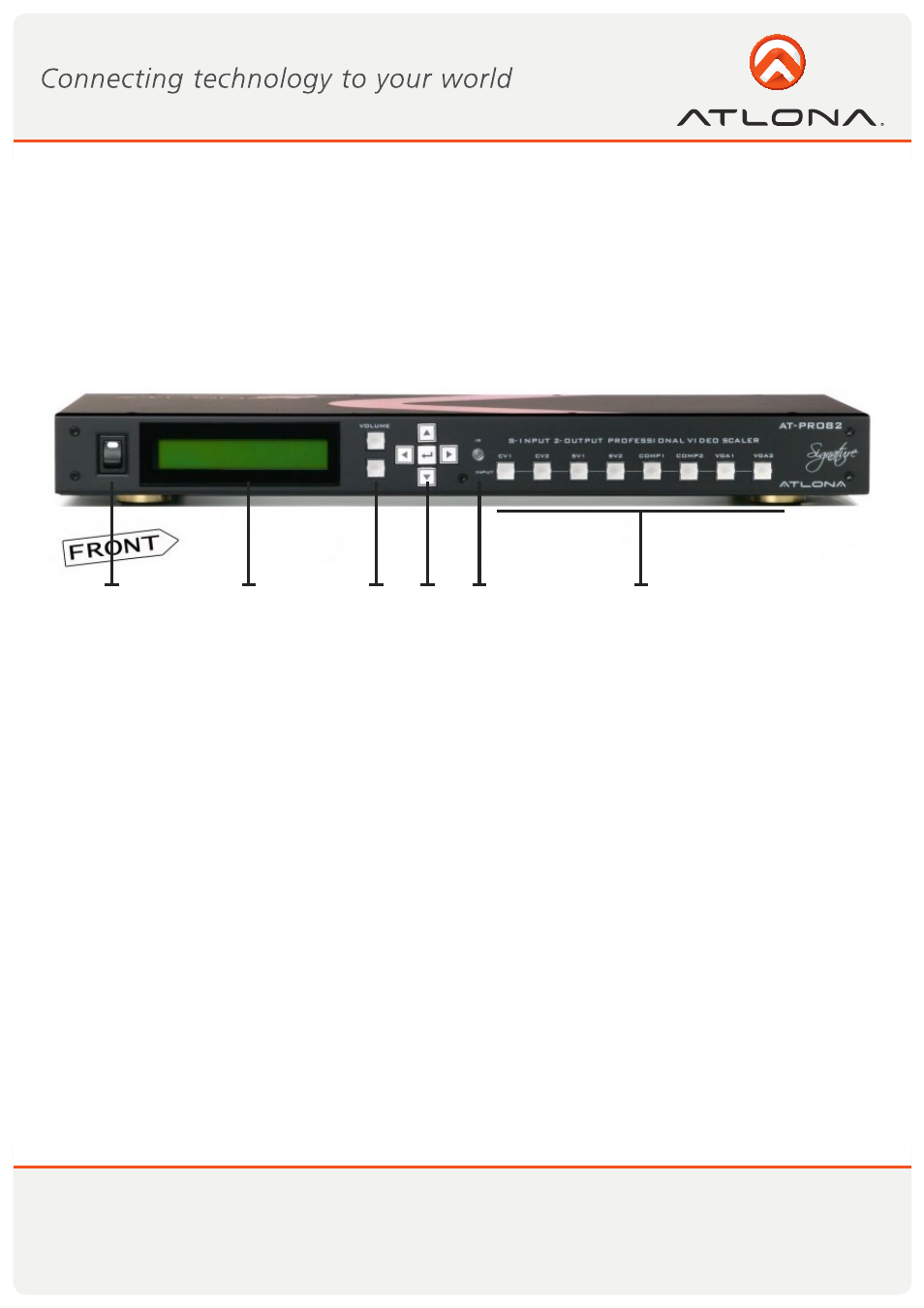

1. POWER SWITCH. The power switch turns the unit ON/OFF. The LED will illuminate red to indicate the
switcher is ON and receiving power
2. INPUT SOURCES DISPLAY. Inputs 1-8 LEDs illuminate green to indicate that a video source signal is pres-
ent.
3. SOURCE SELECT BUTTONS. Outputs 1 and 2 source select buttons are provided for each destination.
Input 1 - Composite Video / Stereo Audio
Input 2 - Composite Video / Stereo Audio
Input 3 - S-Video / Stereo Audio
Input 4 - S-Video / Stereo Audio
Input 5 - Component Video (YPBPR) / Stereo Audio
Input 6 - Component Video (YPBPR) / Stereo Audio
Input 7- VGA (RGBHV)/Stereo Audio
Input 8- VGA (RGBHV)/Stereo Audio
4. IR SENSOR. The IR sensor receives IR commands.
5. OSD CONTROL. Adjust OSD on display via display screen.
6. AUDIO OUTPUT VOLUME. Adjust outputs Audio/Volume via LED display
PACKAGE CONTENTS
PANEL DESCRIPTIONS
