PANEL DESCRIPTIONS:
• 2x2 HDMI Matrix Switcher: 2 HDMI Inputs To 2 HDMI Outputs,
• Input Signals: Video (TMDS) 0.5~1.0Vpp, DDC 5Vpp
• Signal Supports : HDMI Standard, DVI and HDCP Compliant
• Video Supported: HDMI formats up to 1080p or 1920x1200 and DVI UXGA 1600x1200 HD
resolutions.
• Audio Supported: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus
• Supports digital video standards such as:
RGB/YCBCR: 24/30/36-bits
YCBCR: 8/10/12/16/20/24-bits
Double data rate interface for RGB/YCBCR: 12/15/18-bits
• Controls: IR, IR EXT, RS232, and Select buttons on the front panel
• Data Rates: 250Mbps to 2.25Gbps.
• IR Extender Distance: 300 meters maximum.
• IR frequency: 38KHz.
• Safety Approvals: CE, FCC, RoHS(2002/95/EC).
• Power Supply: 12V DC
• Use Universal Switch Type 50/60Hz,100~230 VAC
SPECIFICATIONS:
1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate that the
switcher is ON
2. INPUT SOURCES STATUS DISPLAY. Input sources 1 to 2 LEDs illuminate blue to indicate desired video
source is present on that input.
3. OUTPUT SOURCES STATUS DISPLAY. Output Status shows by LED display.
4. SOURCES SELECT BUTTONS. Separate outputs 1 ~ 2 source select buttons are provided. Select sources
are 1-HDMI, 2-HDMI.
5. IR SENSOR. The IR sensor receives IR commands from the supplied remote control.
6. SOURCE SETUP BUTTONS. Setup the inputs 1 ~ 2
7. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair

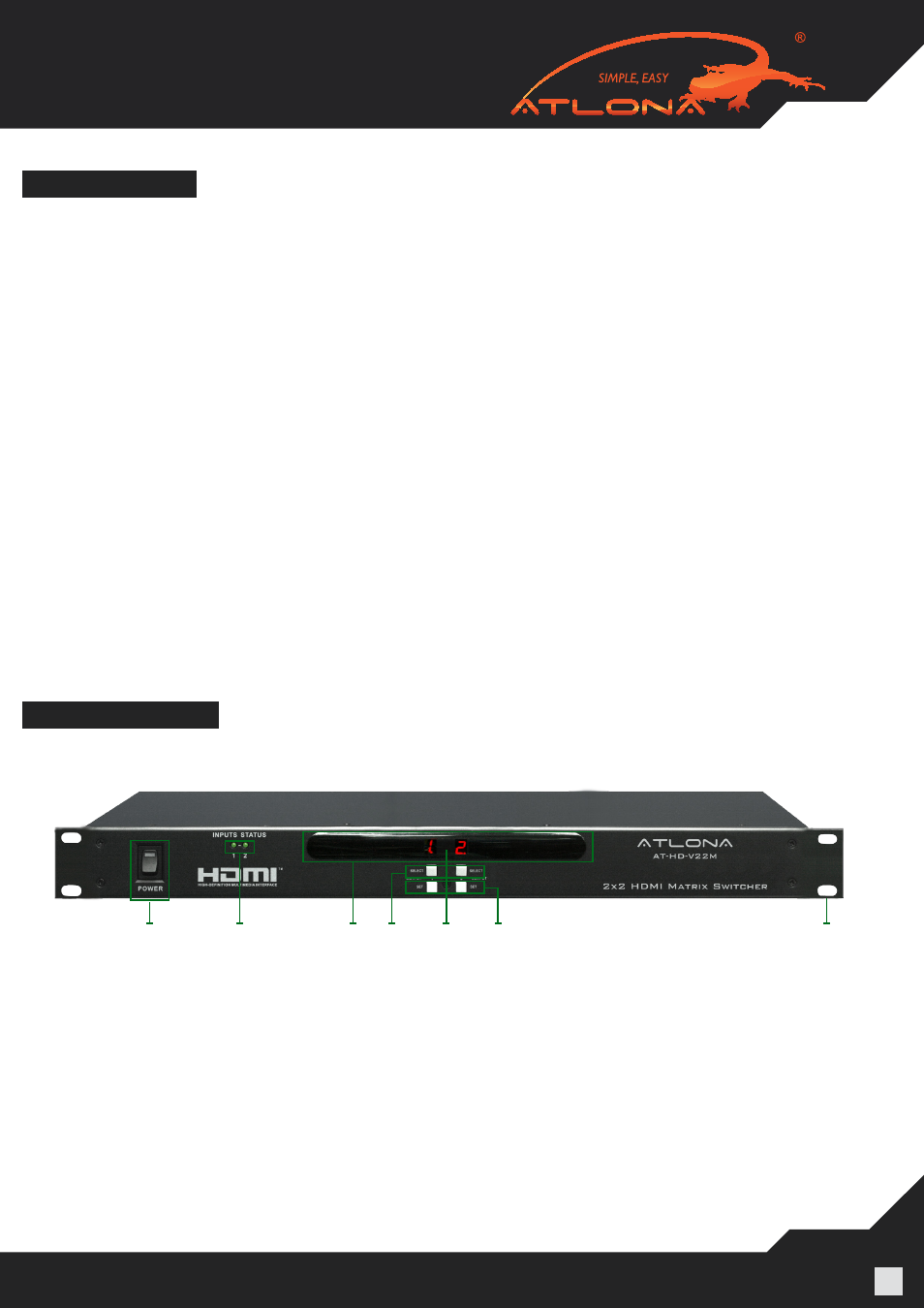

1. Front Panel
1 2 3 5 4 6 7
