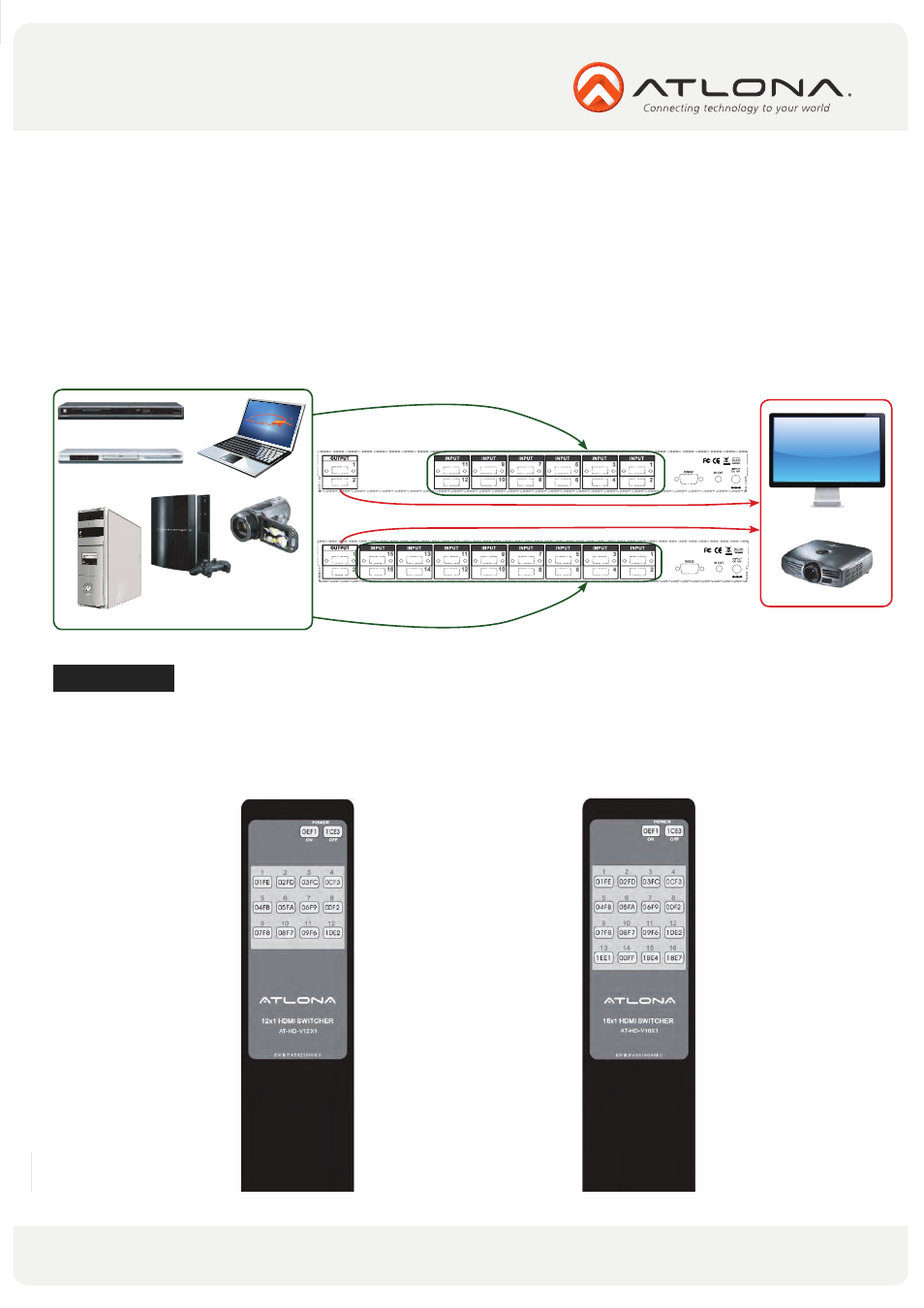

1. Connect an HDMI source such as DVD player, Cable Box, Computer to one of the hdmi inputs on
the switch.
2. Connect HDMI output of the switch to the HDMI display (TV or Projector)
3. Connect 12V supplied power supply to the switch.
4. Turn ON the power switch and select an appropriate hdmi input where an active hdmi source is con-
nected.
IR CONTROL
User can choose to point the remote control to the switch if located within 25ft of the switch or extend
the IR Eye further away from the switch which will allow user to still control the switch from up to 1000ft
away.
IR Remote for 12x2 IR Remote for 16x2
AT-HD-V12x2
or
AT-HD-V16x2
Blu-Ray player
DVD player
PS 3
Camera
PC
Laptop
Projector
TV
