Inputs
1 x SDI (3G/HD/SD)
Outputs
1 x HDMI and 1 x SDI (3G/HD/SD)
SDI standards
SD-SDI, HD-SDI & 3G-SDI
Auto 3G/HD/SD-SDI detection
Yes
Video bandwidth
2.970Gpbs, 2.970/1.001Gbps
Video support
[3G] – 1080p@50/59.94/60Hz (4:2:2), 1080p@24/25/30Hz (4:4:4),
1080i@50/59.94/60Hz (4:4:4), 720p@24/25/50/59.94/60Hz (4:4:4)
[HD] – 720p@50/59.94/60Hz, 1035i@50/59.94/60Hz, 1080i@50/59.94/60Hz,
1080p@24/30Hz
[SD] – [email protected], PAL@50Hz
Input signal
[SD-SDI] SMPTE 259M-C; [HD-SDI] SMPTE 292M, 296M; [3G-SDI] SMPTE
424M/425M
Output signal HDMI
Audio mode 7.1/5.1/Stereo
SDI Output Relocking
[3G-SDI] up to 100m (330ft) [HD-SDI] up to 200m (660ft) [SD-SDI] up to 300m
(1000ft)
Audio support
Yes
BNC connector
3G 75W inter-locked socket
HDMI connector
Type A [19-pin female]
Dimensions (L x W x H)
137 x 90 x 25mm [5.39”x3.54”x1”]
Weight
1LB
Power consumption
4Watts
Operation temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage temperature
20°C ~ 60°C / -4°F ~ 104°F
Relative humidity
20~90% RH no condensation

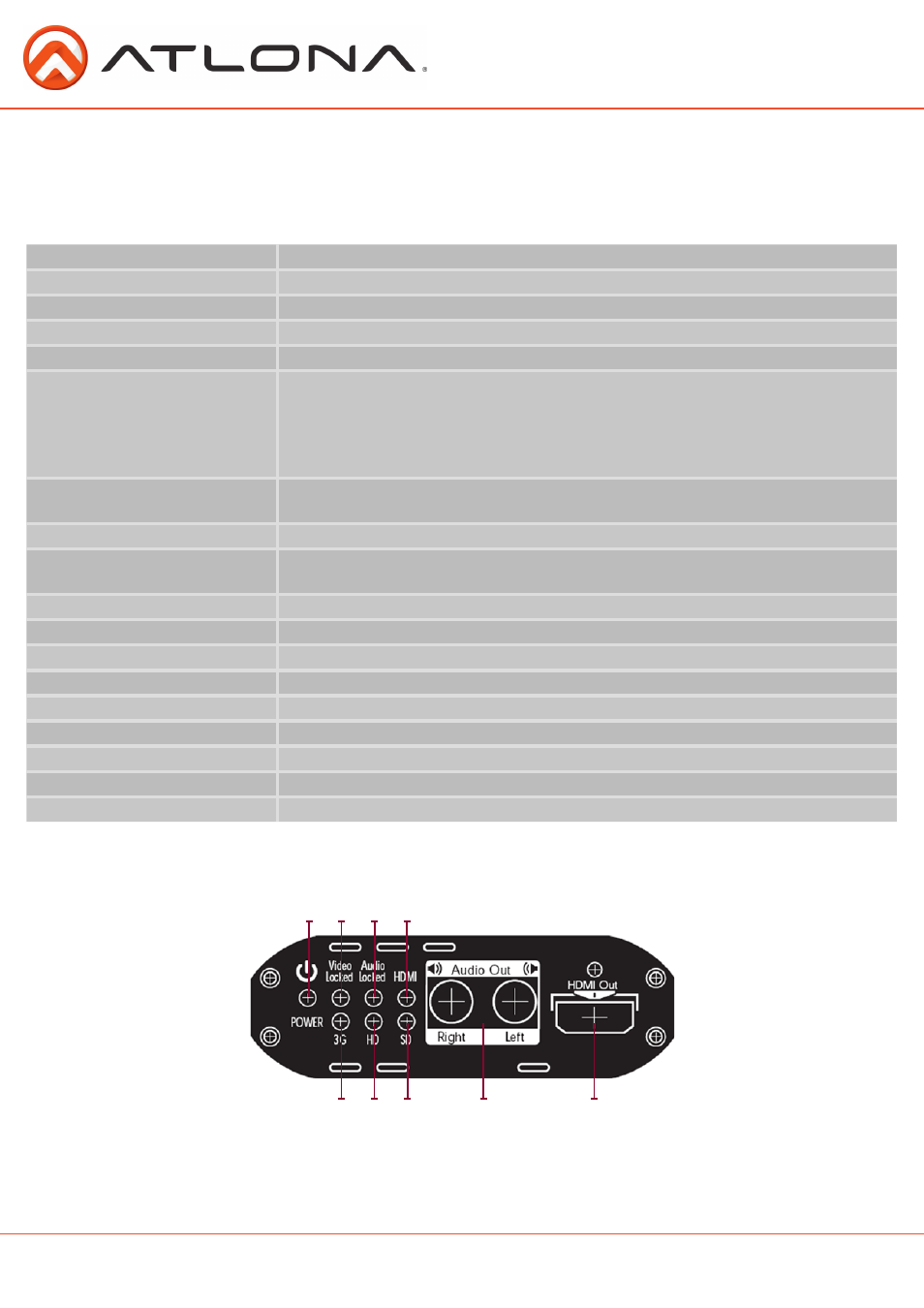

1. Left Panel
SPECIFICATIONS
PANEL DESCRIPTIONS
1
2
3 4
5
6
7
8
9
