PANEL DESCRIPTION

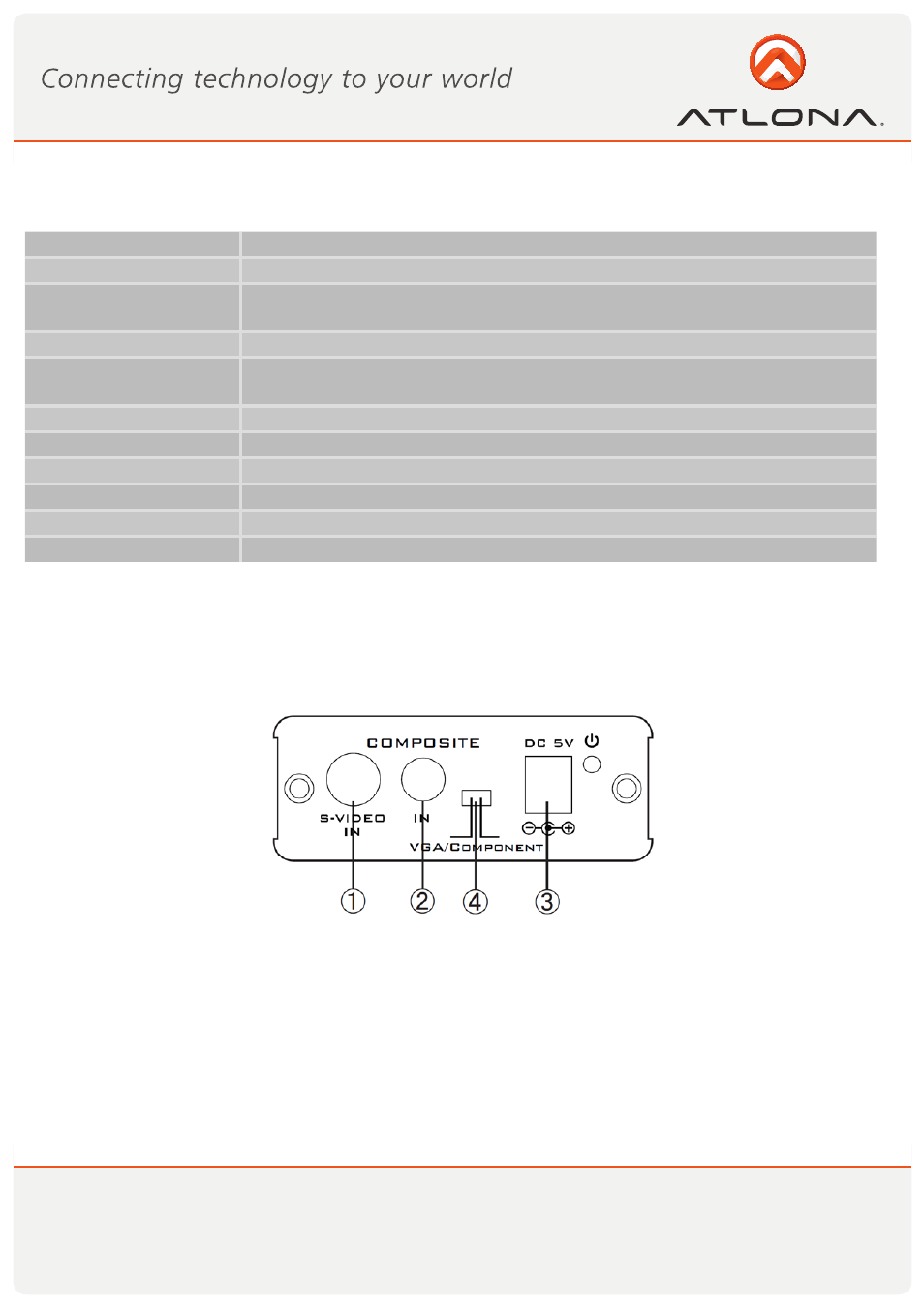

1. Left Panel
1. S-Video input (SV): Connect the source with S-Video interface here.
2. Composite (CV) input: Connect the source with composite video input here.
3. DC 5V In: Connect 5V supplied power supply here.
4. VGA/Component switch: This dip switch allows user to select a VGA or component video output. Simply
slide the dip switch to left or right and the output mode will display your desire selection.
Input port 1 x Composite Video (RCA); 1 x S-Video
Output port 1 x HD15 (supports Component and VGA)
Output Resolution PC: XGA/SXGA/UXGA
Component: 480p/576p/720p/1080p
Power Supply 5VDC/1A (110/240)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (inch) 2.5(W) x 4.4(D) x 1.02(H)
Weight (lb) 0.5
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature
-20˚C~60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
Power Consumption (W) 2.5W (Maximum Load)
SPECIFICATIONS
