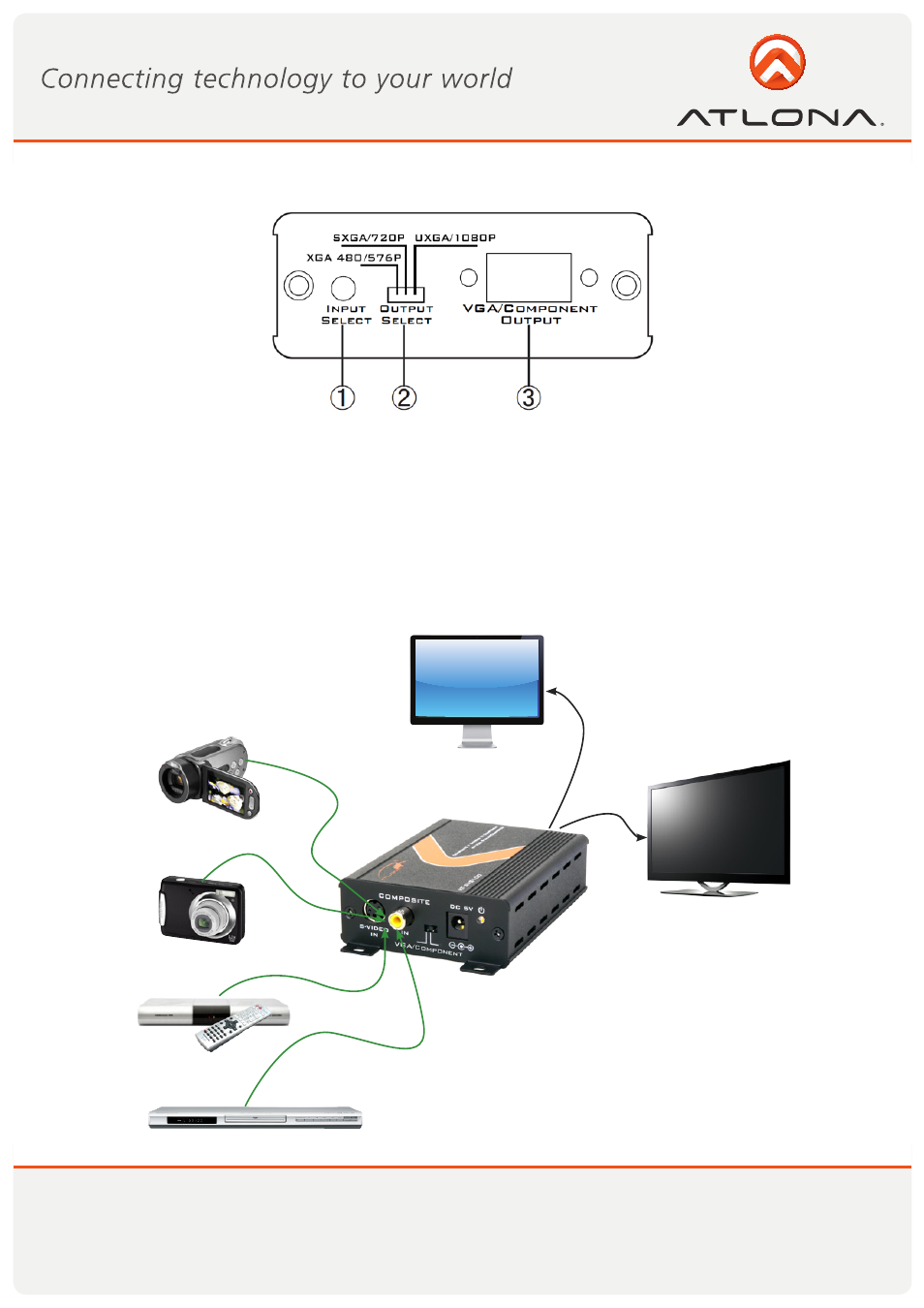

CONNECTION DIAGRAM
2. Right Panel
1. CV/SV: Press this button to switch input source between composite or S-Video. The LED will illuminate in
green when switched to composite and red when switched to an S-Video input.
2. Output resolution switch: This dip switch allows user to set VGA/component output timing to VESA resolu-
tion XGA/SXGA/UXGA or component video resolution 480p/576p/720p/1080p. Simply move the dip
switch to the desired resolution.
3. VGA out:Connect VGA cable to aVGA display orVGA /component cable to a component video display.
PC Monitor
or
TV with
Component
input
