Page 19
Rev. 1.06
- 19 -
BCD-1000

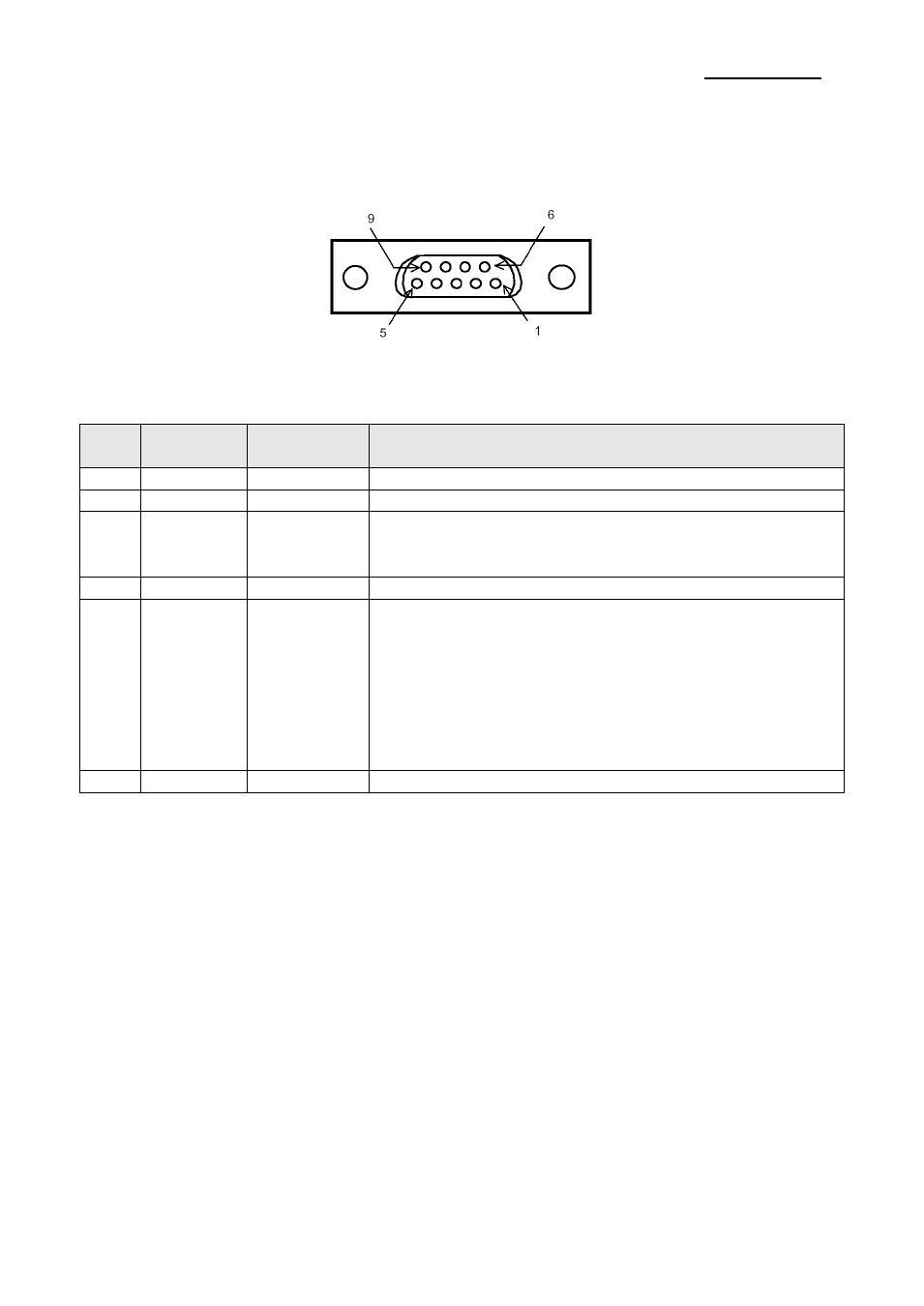

6-2-3 Printer interface connector
The option stand provides the printer interface connector (D-SUB 9 pin Male type).
6-2-4 Printer interface connector signal assignments
Pin
NO
Signal
Name
Signal
Direction
Function
2
RXD
Input
Receive data from the p
rinter (printer → host)
3
TXD
Output
Transmit data to the printer (DM → Printer)
4
DTR
Output
Indicates whether the host is ready to receive data.
[SPACE] The host is ready to receive data.
[MARK] The host is not ready to receive data.
5
GND
-
Signal
6
DSR
Input
This indicates whether the display is ready to receive
data from the printer.
[SPACE] The printer can receive data. When the printer
becomes ready to receive data the SPACE is
output.
[MARK] The printer cannot receive data.
Even if the printer becomes readyto receive
data, the MARK is not output.
9
RESET
Output
Reset signal to the printer (host → printer)
