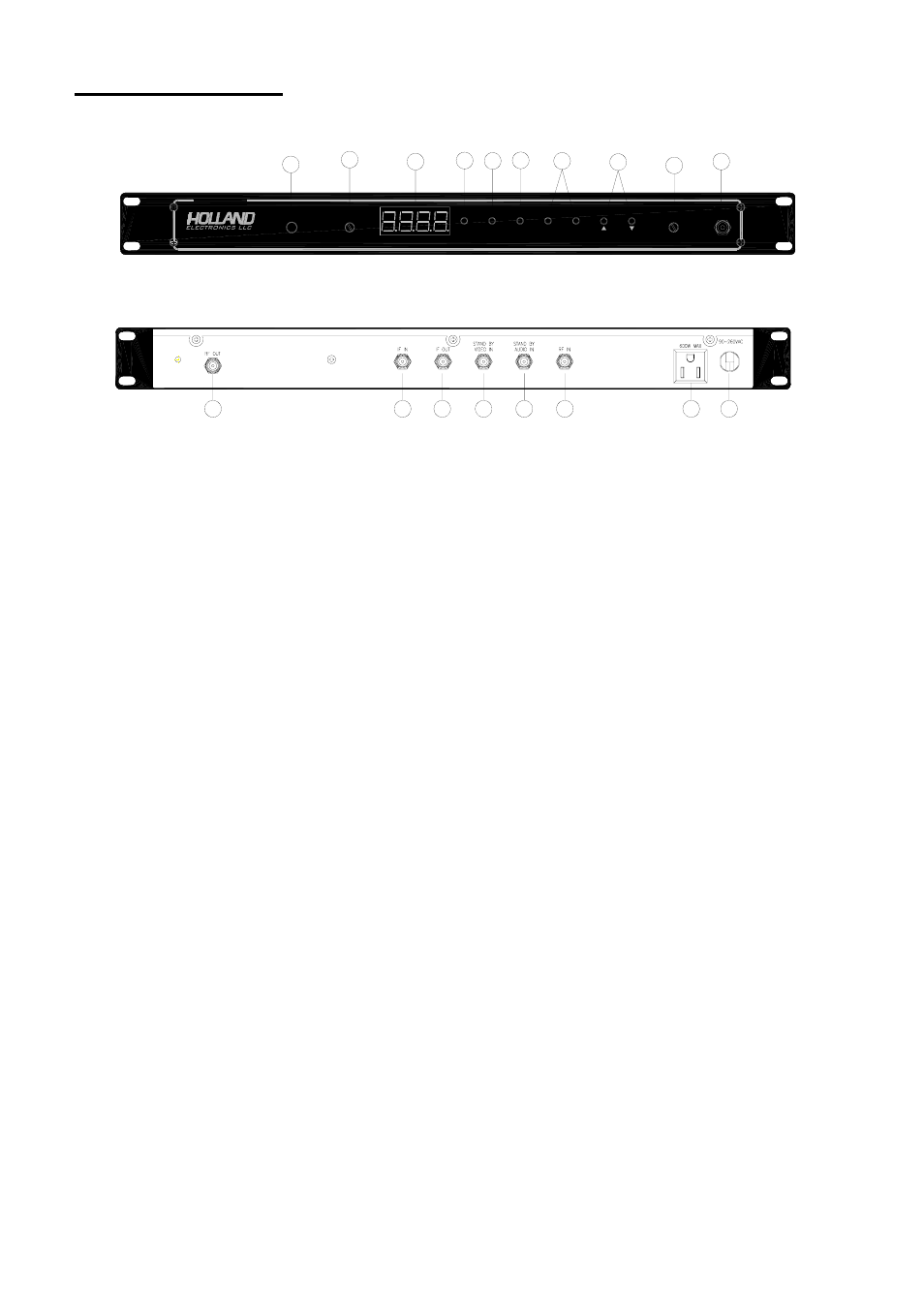

Front & Rear Panels
1. Power On LED:
Indicates power is on when lit.
3
2. Aural Adjust :
Use to set level of audio carrier (volume).
3. Channel Display :
Displays input and output channels, channel
mode, and fine tune frequency increments.
4. IN/OUT :
Toggles between the input and output
channels.
5. Store :
Press this button to store current programming
information in the non-volatile memory.
6. Channel Type :
Use to select standard, HRC, IRC or off-air
channels.
7. F+ / F :
Use these buttons to fine tune the frequency.
When either button is pressed, the frequency is
increased (F+) or decreased (F-) by 12.5 KHz
from the current frequency.
8. CH▲▼:
Use these buttons to select desired channel.
9. Output Adjust :
Use to set level of RF output.
11 12 13 14 15 16 17 18
1
AGILE PROCESSOR
POWER CARRIER
AURAL
CHANNEL
IN/OUT CH.TYPE STORE F+ F-
CHANNEL
SELECT LEVEL
OUTPUT
TEST
POINT
30dB
2 3 7 8
9
10 6 5 4
MODEL HPH-860
10. -30 dB Test Point :
Used to monitor input level.
11. RF Out :
Connect this port to distribution system.
12. IF In :
Input from I.F. scrambler or I.F. output.
13. IF Out :
To I.F. input or scrambling device.
14. Video In (Stand-by input) : (Option)
Connect to baseband video source for stand-
by operation.
15. Audio In (Stand-by input) : (Option)
Connect to baseband audio source for stand-
by operation.
16. RF In:
Connect RF source (antenna or cable) to this
port.
17. Convenience outlet :
Provides 90 ~ 260 Vac, 60Hz, 600W max.
supply.
18. Power Cord:
Standard three wire, U.S.A. type.
