ET1111PpH-S-DR/ ET1212PpH-S-DR
Hardened 1-port 100BaseTX to 100Base-FX or 1000Base-T to 1000Base-FX SFP Media Converter with
High Power PoE
V3 4

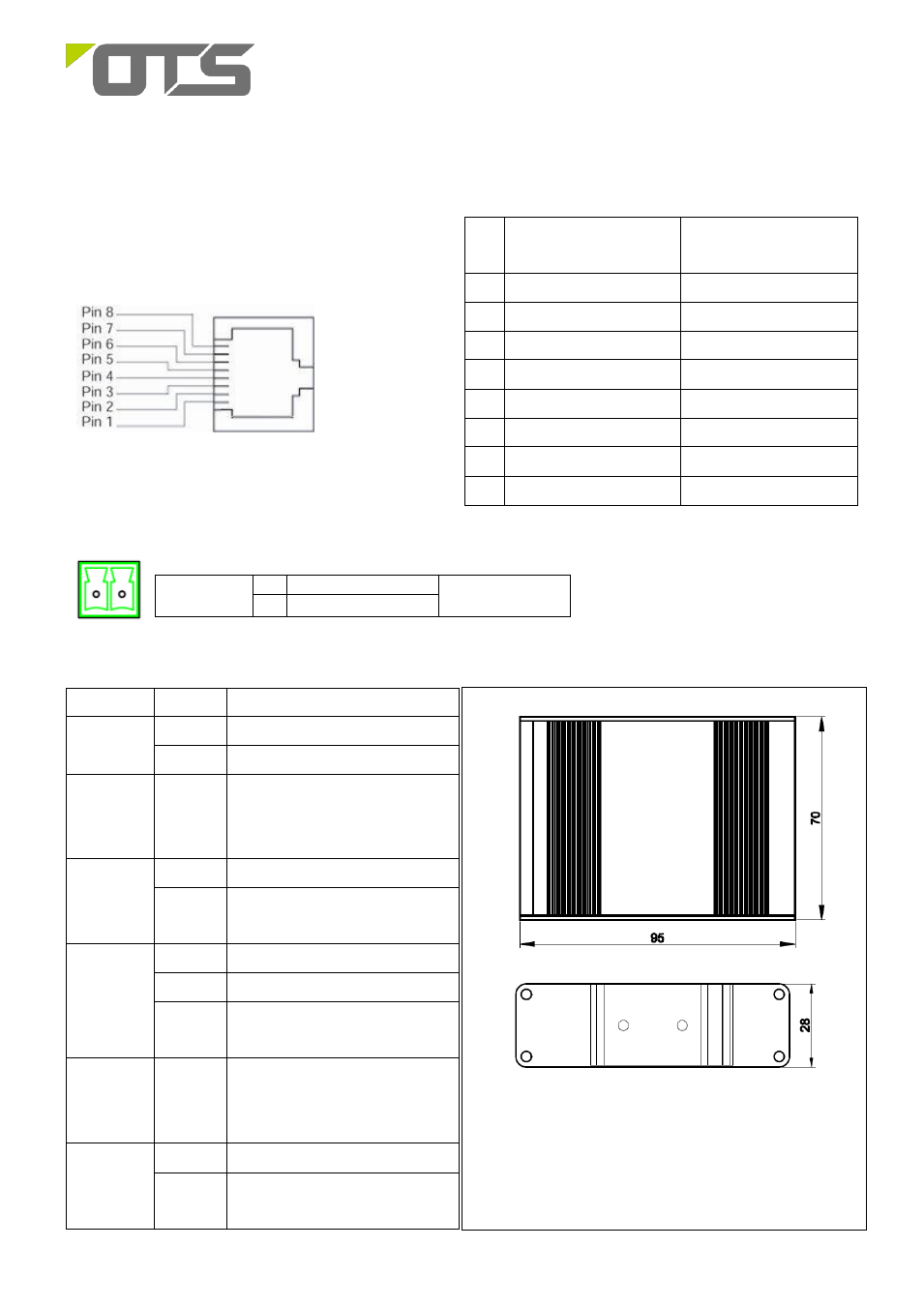

Interface
Ethernet Port
RJ-45 Pin Assignment
.
Pin
ET1111PpH-S
Signal Definition
ET1212PpH-S
Signal Definition
1 TD+ TP0+
2 TD- TP0-
3 RD + TP1+
4 Positive (VCC+) TP2+ / VCC+
5 Positive (VCC+) TP2- / VCC+
6 RD- TP1-
7 Negative (VCC-) TP3+ / VCC-
8 Negative (VCC-) TP3- / VCC-
Power Connection
The Port Status LEDs, dimension drawing
LED State Indication
PWR Green Power on.
Off Power off.
100
1000
(SFP）
Green
100Base-FX Fiber link stable
1000Base-FX Fiber link stable
LINK/ACT
（SFP）
Steady A valid fiber connection established
Flashing Transmitting or receiving data.
ACT Stands for Activity.
PoE Green PoE is activated.
Flashing A Power Device (PD) is being detected.
Off No device is connected or the connected
device is not a PD.
100
1000
(RJ45)
Green
100Base-TX
1000Base-TX.
LINK/ACT
(RJ45)
Steady A valid network connection established
Flashing Transmitting or receiving data.
ACT Stands for Activity.
48~57VDC
-
GND
Terminal Block
+
48~57V
Top View
Side View
- +
