10 Prowler 8x8 User Guide, Version 1.4, 7/15/11
Overview
Overview

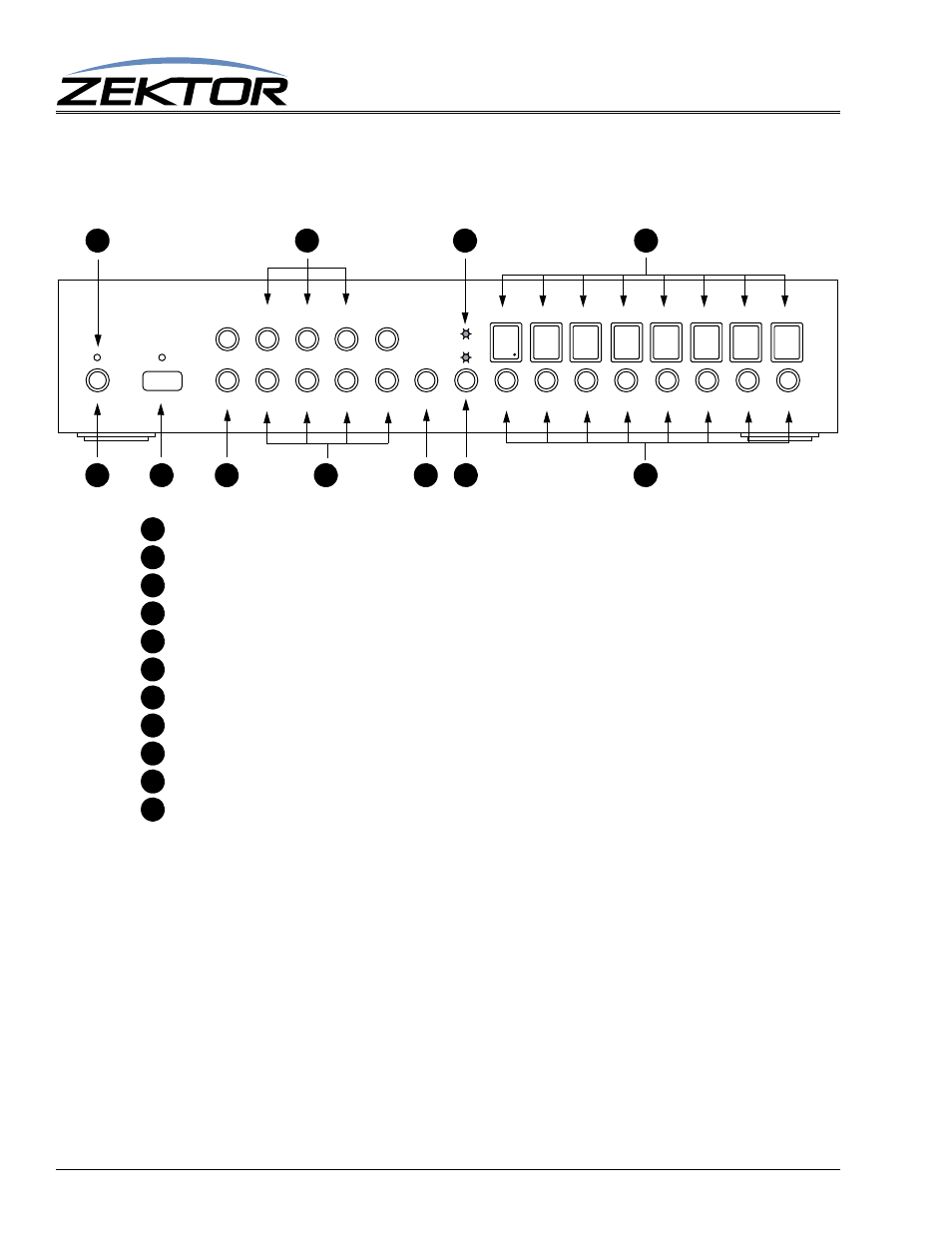

Front Panel Controls
Power toggle / Extended functions button.
Window for IR sensor.
Clear button and memory buttons.
Input selection buttons 1-8.
Enter button.
Audio / video breakaway selection button.
Zone selection buttons 1-8.
Power indicator / IR received.
Select composite inputs by pressing and holding buttons 1 - 3 for one second.
Audio / video breakaway LEDs.
Current input mappings for each zone.

AUDIO VIDEO MATRIX SWITCH
AUD
VID
MEM 1 2 3 4
CLR 5 6 7 8 ENT 1 2 3 4 5 6 7 8
C A B G F
K J
D E
H I
A
B
C
D
E
F
G
H
I
J
K
