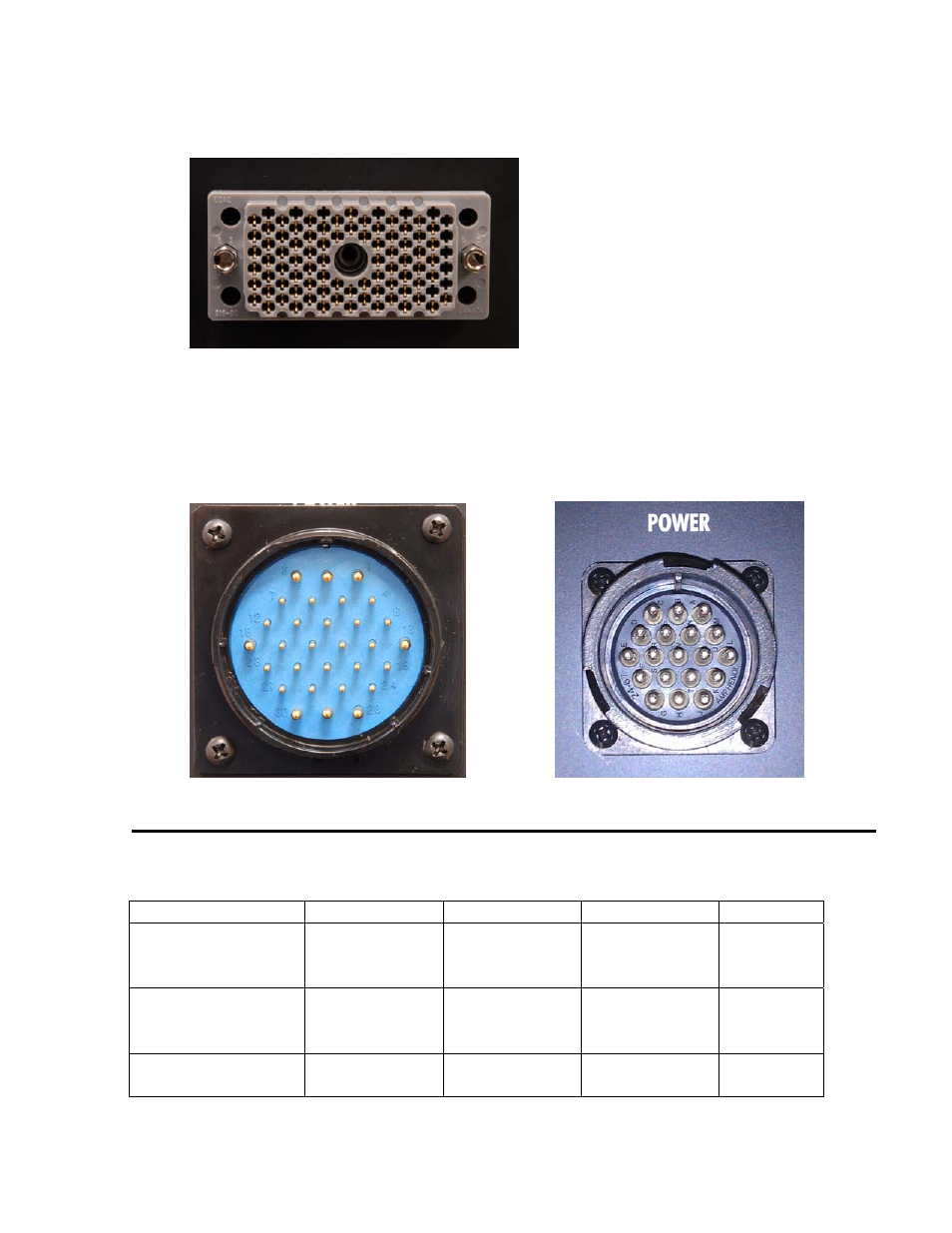

9.8 Expander Port
The Expander Port is interfaced with a single 90-Pin male Elco connector.
9.9 Power Supply Unit Connection
The Power Supply Unit connection is interfaced with a single multi-pin mil spec. connector.
Connector for S/N: 548-0001 thru 548-0153 Connector for S/N: 548-0154 onward
1608 Weights and Dimensions
Width Height Depth Weight
Standard 16 channel
console
37.6 inches 17.9 inches 33.0 inches 228 Lbs.
16 Channel
Expander
25.6 inches 17.9 inches 33.0 inches 162 Lbs.
32 Channel Console
62 inches 17.9 inches 33.0 inches 390 Lbs.
The 1608 is equipped with an Expander Port
that allows the connection of a sixteen-
channel API 1608 Expander. The Expander
Port allows for complete integration of all
major console functions:
 Program Bus
 Summing Bus
 Auxiliary Bus
 Mute Group
 Solo Bus
 Solo-In-Place
