I/O configuration
FM33xx
17

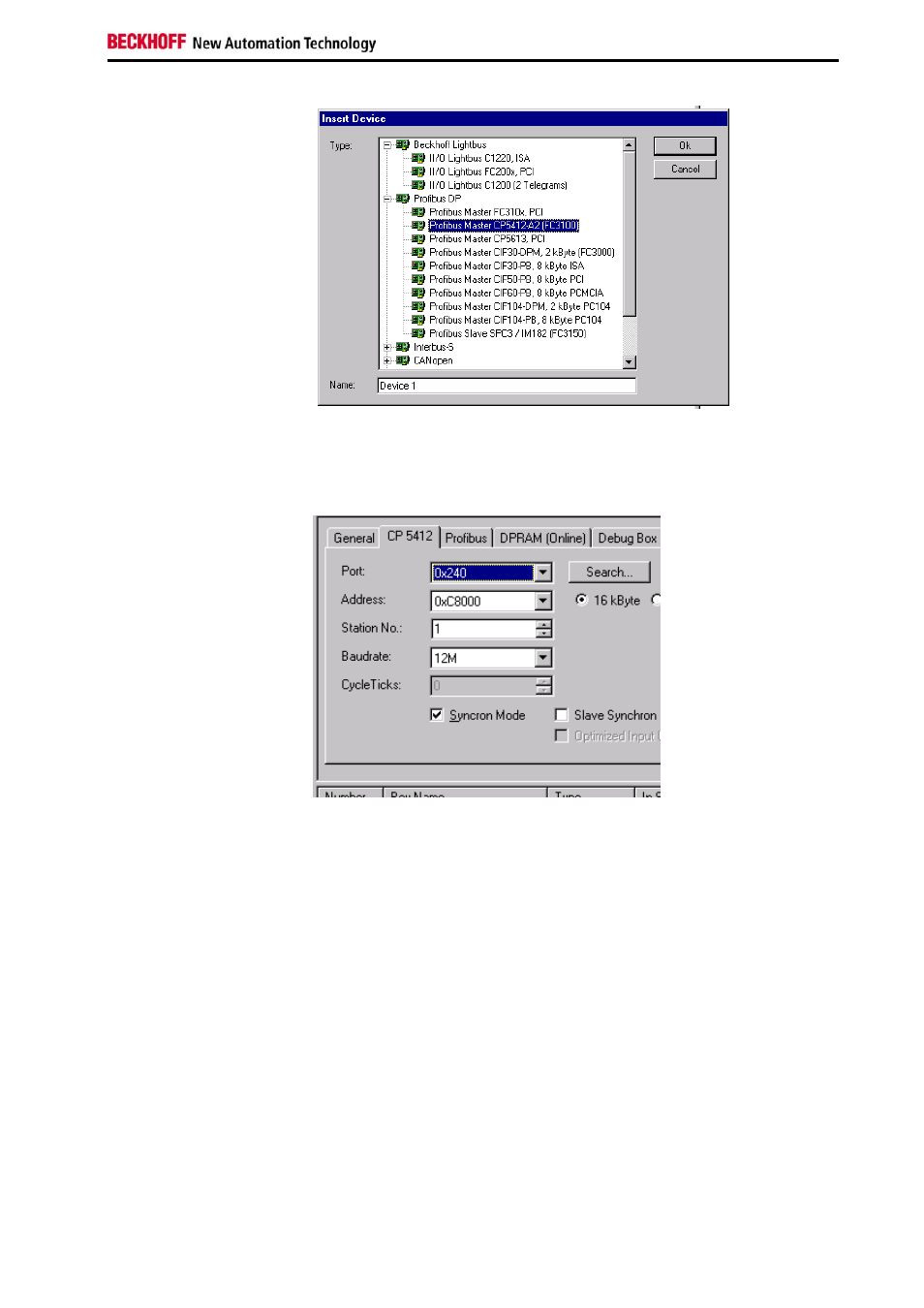

Available PROFIBUS
master cards
After you have confirmed with OK the master card appears in the branch
that shows the configured I/O devices. A mouse click on the CP5412 will
open a dialog box on the right with the master's configuration settings
Configuring the master card
The port number, address range and baud rate must be set on the
CP 5412 tab. Baud rates up to 12 Mbaud are supported by the TC-Plug,
and the port number can be found automatically with the Search.. menu
command. The address range should be selected in such a way that no
conflict with other hardware is caused.
