INSTALLATION INSTRUCTIONS
11
Installation in a sliding sash windows

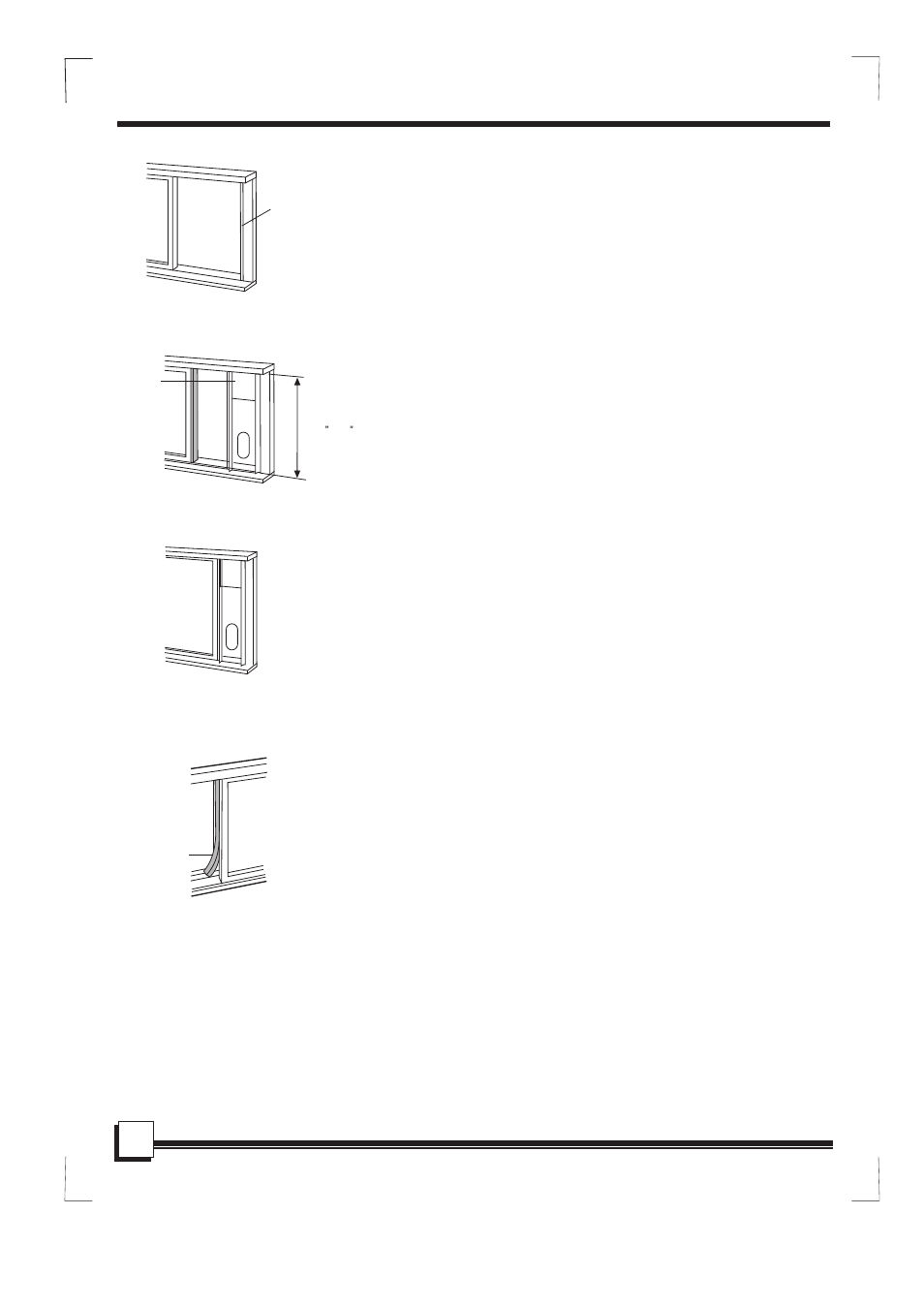

1. Cut the foam seal(adhesive type) to the proper length and
attach it to the window frame. See Fig.14.
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, short the adjustable window kit if the width of
window is less than 27 inches.
Open the window sash and place the window slider kit on
the window stool. See Fig.15.
3. Cut the foam seal(adhesive type) to the proper length
and attach it on the top of the window. Show as in Fig.16.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and sealing the
open gap between the top window sash and outer window
sash. Show as in Fig.17.
Foam seal
Foam seal A
(adhesive type)
Fig.14
Fig.15
Fig.16
Fig.17
Window
panel
26.5 ~ 48
