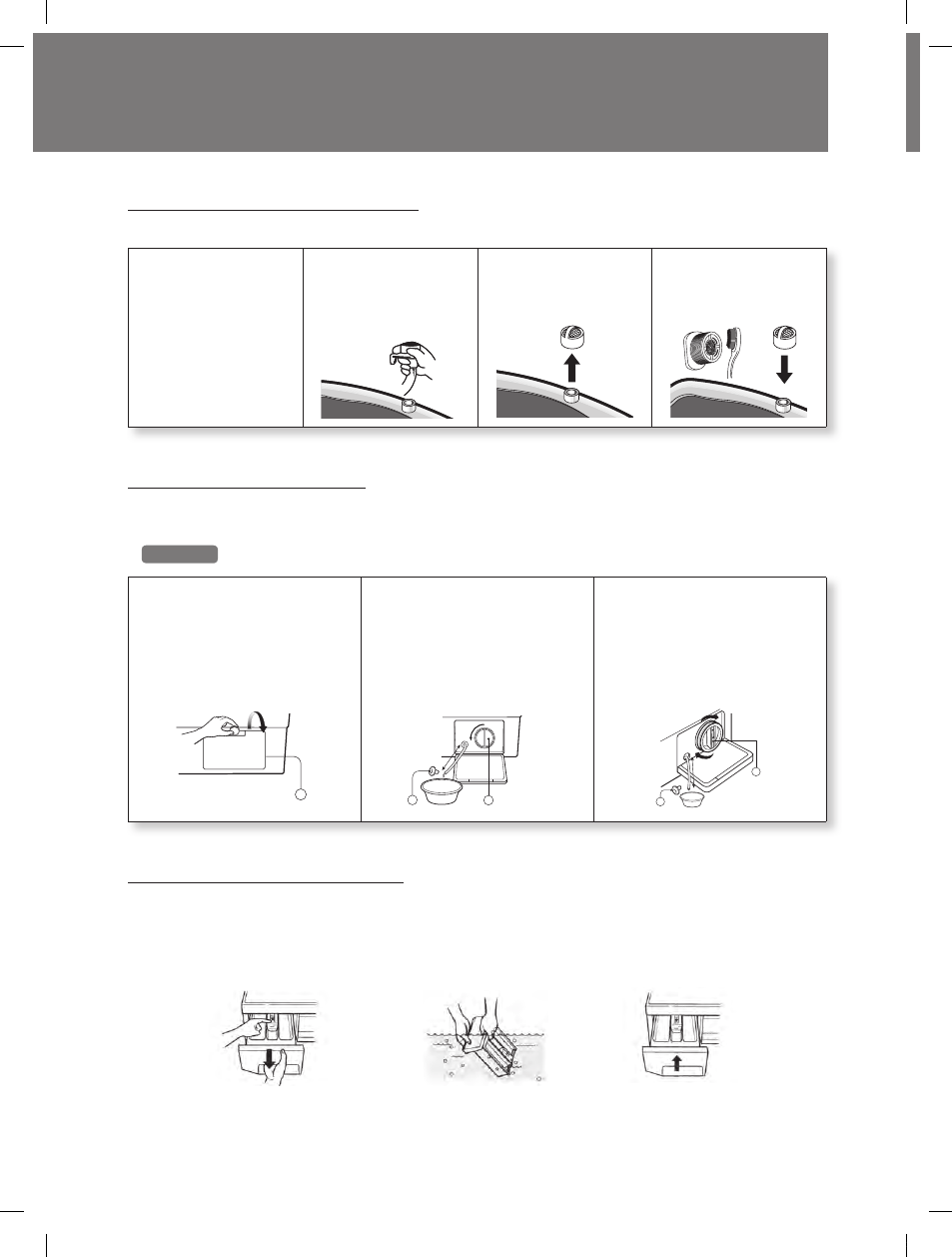

How to clean the filter
Cleaning the detergent case
* After a while detergent and fabric softeners leav;e a deposit in the case;
- It should be cleaned from time to time with a jet of running water.
- If necessary it can be removed completely from the machine by pressing the catch downwards and by
pulling it out.
- To facilitate cleaning, the upper part of the fabric softener compartment can be removed.
* Detergent can also accumulate inside the recess which should be cleaned occasionally with a brush.
* Once you have finished cleaning, replace the case and run a rinse cycle without laundry.
Cleaning the water inlet filter
Clean the filter when water leaks from the water inlet.
Pull the power plug
out before cleaning it.
Turn off the water
supply to the washer
and separate the inlet
hose.
Pull the inlet filter out. Remove the dirt from
the inlet filter with a
brush.
Filter Frame Lint Filte r
FILTER CONTAINER
CAP
CASE
FILTER
CAP
CAP
FILTER
CASE
GUIDE
RIB
SUIT
CAP
CAP
Filter Frame Lint Filte r
FILTER CONTAINER
CAP
CASE
FILTER
CAP
CAP
FILTER
CASE
GUIDE
RIB
SUIT
CAP
CAP
Filter Frame Lint Filte r
FILTER
CONTAINER
CAP
CASE
FILTER
CAP
CAP
FILTER
CASE
GUIDE
RIB
SUIT
CAP
CAP
Cleaning the drain filter
• This drain filter is used to screen the foreign stuffs s uch as threads, coins, pins, buttons etc..
• If the drain filter is not cleaned at proper time(every 10 times o f use), drain problem could be caused.
CAUTION Be careful when draining if the water is hot.
Open the lower cover(
①
) by
using a coin. Turn the cap
hose(
②
) to pull out the hose.
Pull out the hose maximally.
(About 13~14cm.)
Unplug the cap hose(
②
),
allowing the water to flow out.
At this time use a vessel to
prevent water flowing on to the
floor. When water does not flow
any more, turn the pump filter
(
③
) open to the left.
Remove any foreign material
from the pump filter(
③
). After
cleaning, turn the pump filter
clockwise and insert the cap
hose(
②
) to the original place.
Close the lower cover.
