KST-12000 Ku-Band Satellite Terminal Revision 4
Redundant System Installation MN/KST12000.IOM

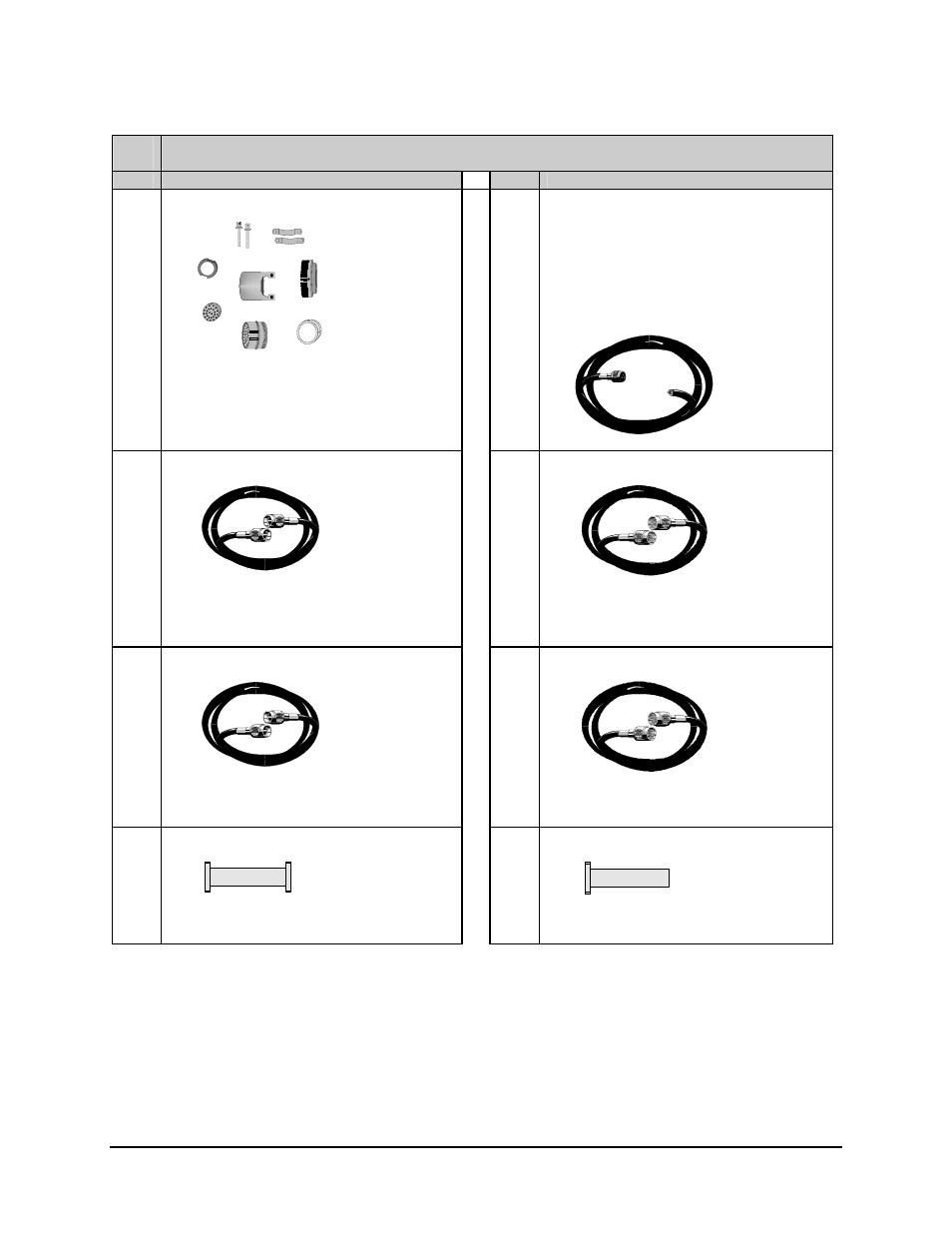

1 Kit KT/3950-x (where x = 1 for AC power, and 2 for DC power), which includes:
Qty. Description Qty. Description
1 Connector kit.
CEFD Part # CN/STPG26M01.
Used to connect customer’s cable to the RFT
26-pin J6 (REMOTE). For remote control and
status monitoring (by using M&C system
monitor software).
2 Note: Either the AC or DC cable is provided,
depending upon the product ordering code.
Assembly, AC prime power cable.
CEFD Part # PL/2754.
Assembly, DC prime power cable.
CEFD Part # PL/4157.
1 Cable assembly.
CEFD Part # PL/3951.
“Y” to waveguide switches.
2 Cable assembly.
CEFD Part # PL/3003.
Used for communications from RFTs A and B
to RSU.
4 Cable assembly.
CEFD Part # CA/3005-1.
TNC to TNC, 50
Ω.
2 Cable.
CEFD Part # CA/3722.
LNA to down converter.
1 Weldment.
CEFD Part # FP/4427.
Used to attach switch to antenna feed.
1 Termination.
CEFD Part # RF/TERM-11923-2.
Used on port 3 of the switch.
3–4
