Chapter 2 Hardware Installation
Chapter 2

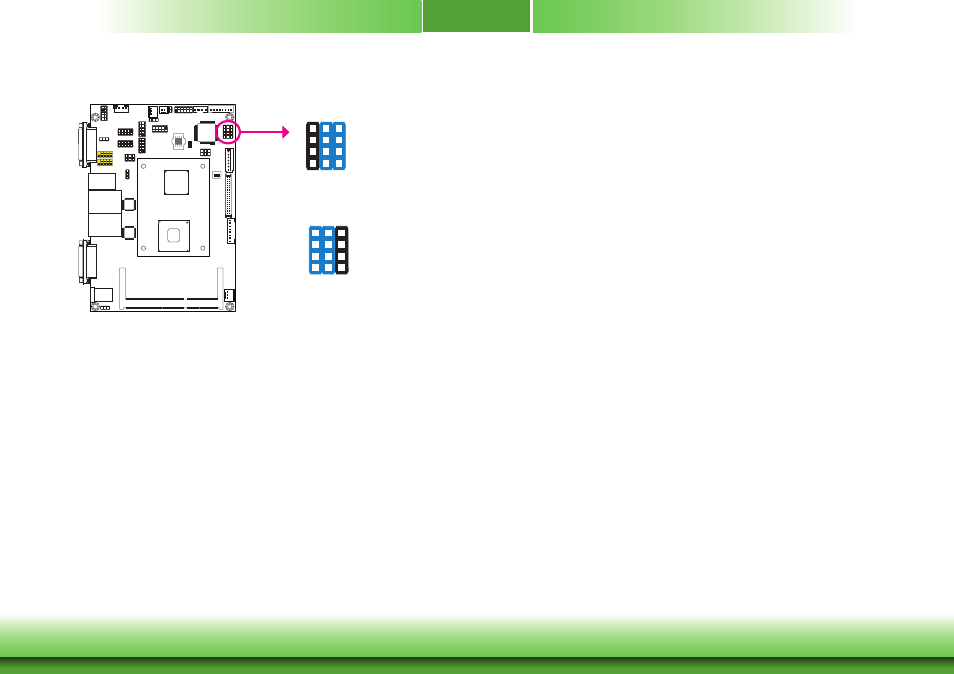

Mini PCIe/mSATA Select
JP8
1
3
10
12
2-5-8-11, 3-6-9-12 On: mSATA
1-4-7-10, 2-5-8-11 On:
Mini PCIe (default)
JP8 is used to select the configure Mini PCIe signal.
