Scale Bracket and Load Cell Mounting Installation
D3949-US-Rev A
Landoll 5210 Grain Drill Scale Kit
3

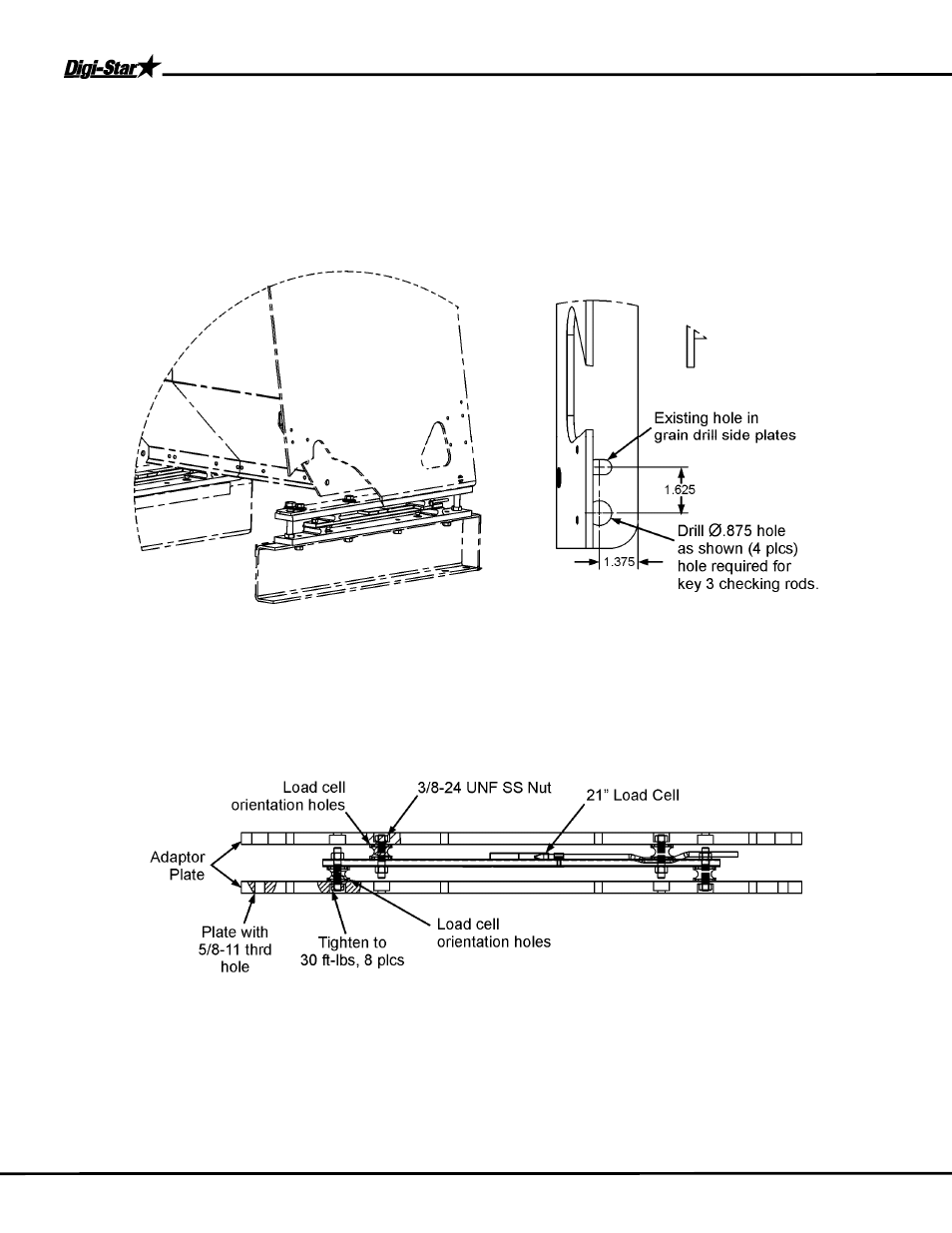

Outer Load Cell Assembly Instructions for Dual and Single Hoppers
1. Before beginning installation, the outer hopper supports must be modified by drilling two Ø.875 holes in
each support as shown in Figure 1.
2. Assembly adaptor plates to load cells with four 3/8-24 UNF nut. Tighten 3/8-24 UNF SS Nut to 30 ft-
lbs. See Figure 2.
NOTE:
Rubber mounts should remain perpendicular to load cell bar.
Figure 1
Hopper Support Leg Modification
Figure 2
Outer Load Cell Support
