APKD DOUBLE-CASE, DOUBLE-SUCTION USER INSTRUCTIONS 26999903 07-13

Page 50 of 55

flowserve.com

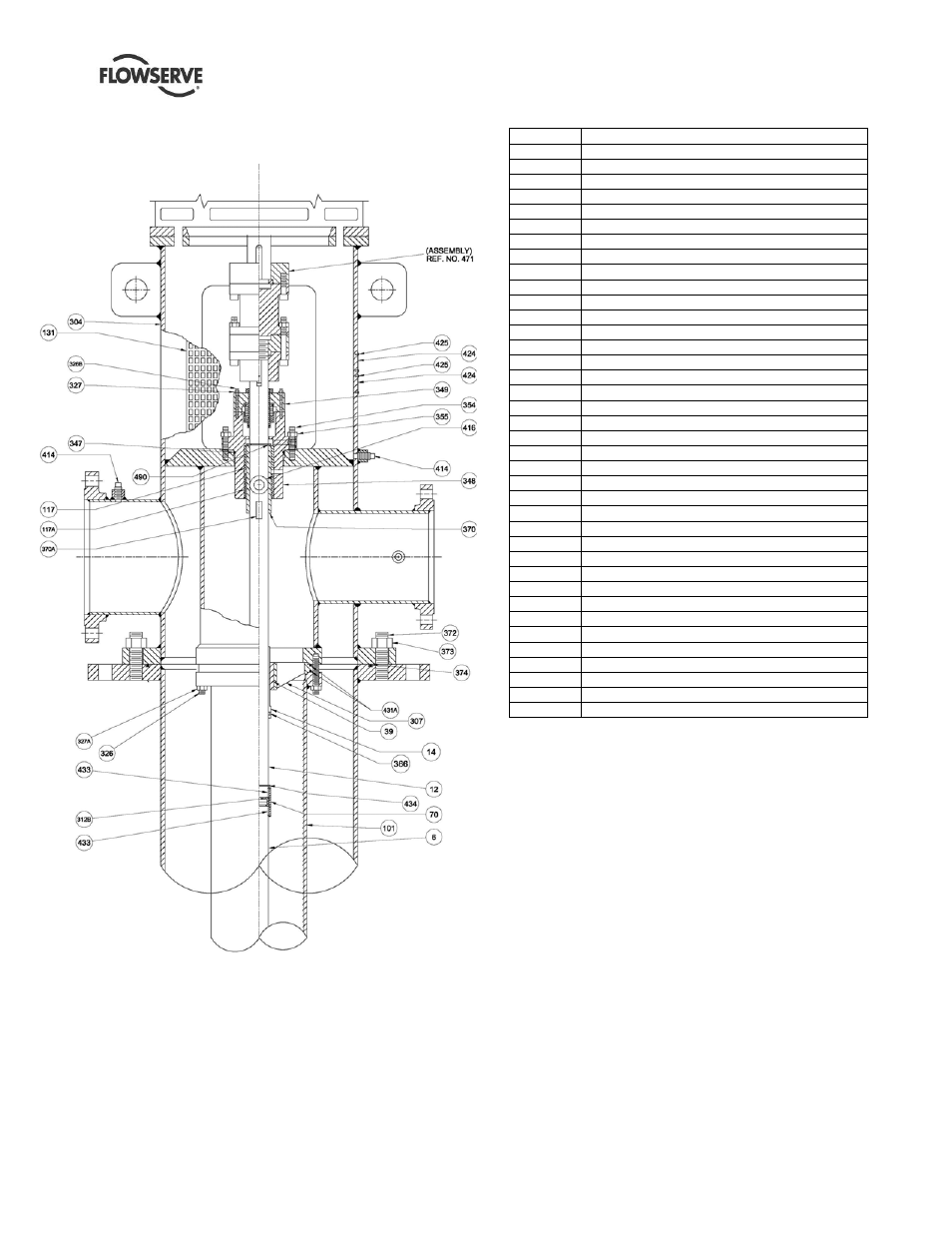

8.2.1

Parts identification: Discharge
head/column/suction barrel

Typical product lubricated APKD with a suction barrel

8.2.1.1

Parts list-Disch. head and column Assy.

Ref no.

Description

6 PUMP

SHAFT

12 TOP

SHAFT

14 SLEEVE-TOPSHAFT
39 BEARING

SLEEVE

70

KEYED SHAFT SLEEVED

101 COLUMN

PIPE

117 BEARING

SLEEVE

117A BEARING

SLEEVE

131 COUPLING

GUARD

304 DISCHARGE

HEAD

307 BEARING

RETAINER

312B CLAMP

RING

326 STUD

326B STUD

327 NUT-HEX

327A NUT-HEX

347 O-RING
348 STUFFING

BOX

349 MECHANICAL

SEAL

354 STUD
355 NUT-HEX
366 SET

SCREW

370 STUFFING

BOX-SLEEVE

370A KEY-SLEEVE

372 STUD
373 NUT-HEX
374 O-RING

BARREL

414 PLUG
416 PLUG
424

FLOWSERVE DISPLAY NAMEPLATE

424

FLOWSERVE SERIAL PLATE

425 DRIVE

SCREW

425 DRIVE

SCREW

431A O-RING

433 KEY-COUPLING
434 RETAINING

RING

471

FLANGED COUPLING ASSEMBLY

490 RETAINING

RING
