Model 013-02-0095-002 Elemec3 System Controller Page 5 of 11
e:\standard ioms - current release\42004 instr. manuals\42004-480b.doc
05/14
Internal Connections
All internal connections are plug and socket connections.

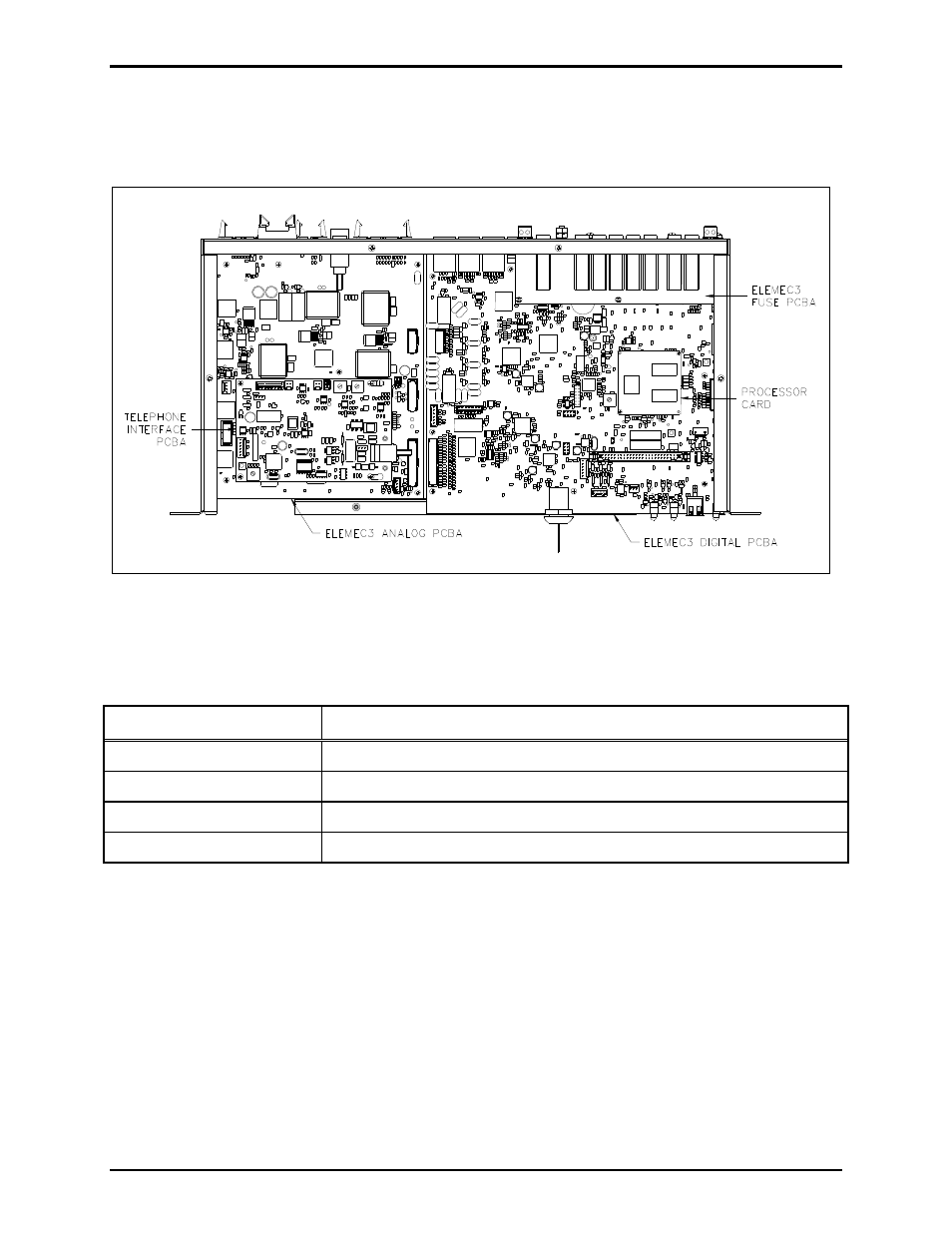

Figure 4. Elemec3 System Controller – Internal Components – Top View
The main internal components are listed in Table 1 below:
Table 1. Elemec3 System Controller – Internal Components
Component Description
Digital PCBA Central processing unit and digital communications
Analog PCBA Provides speech recording and play-back to eliminate feedback.
Telephone Interface PCBA Interface from Elecmec3 System Controller to telephone system
Elemec3 Fuse PCBA See “Specification” section for description
The Elemec3 System Controller contains an internal clock that continually runs in the background. It is
has a battery back-up and the time is used as a time stamp on event logs when the status of the system
changes, such as an alarm event.
