Pole Cap Assembly Instructions
The pole cap housing contains three holes: a 0.75-inch hole for the antenna coaxial cable, a 0.875-inch
hole for the external ringer cable, and another 0.875-inch hole for the solar panel cable entry. The
attached adjustable mounting bracket is used to mount the Siemens solar panel. Refer to Figure 1 below
while completing the steps to install the pole cap assembly onto the pole.
Install the antenna, external ringer, and solar panel to the pole cap housing while on the ground:
1. Assemble cellular antenna onto pole cap housing through the 0.75-inch hole using installation
directions and hardware supplied with Model RFP7783-002 Antenna Kit.
2. Secure the Siemens solar panel onto the pole cap housing’s adjustable mounting bracket using two U-
bracket with the tamper-resistant hardware to clamp down on the inside lip of the solar panel. See
Figure 1.
3. Secure Model RFP7791-001 External Ringer onto the pole cap housing’s horizontal bracket
(1.14-inch (32mm) through hole) using the supplied ringer spacer bracket and ringer nut.
4. Double up the length of the integrity loop wire and tape or apply heat shrink tubing to join the solar
panel cable to the closed end of integrity loop. Be sure to install integrity loop right up to the potted
module on rear of solar panel. Feed the combined solar panel cable/integrity loop wire through one
of the 0.875-inch water-tight hubs. Hand tighten the locking hub to seal.

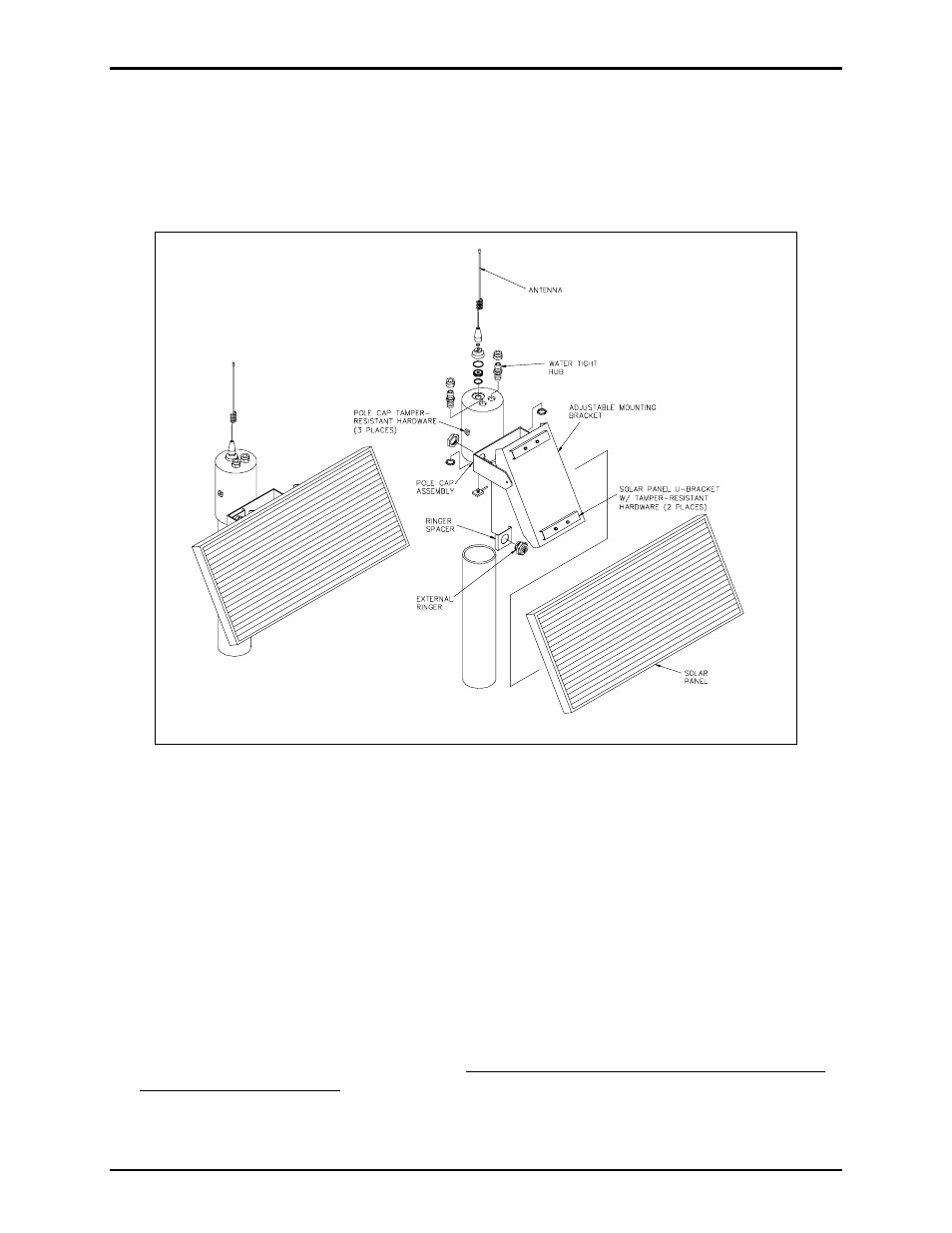

Figure 1. Pole Cap Assembly with Exploded View
