Installing the New Power Supply
Refer to Figures 1, 2, and 3 for component location and installation details. Direct questions about
installation of this product to GAI-Tronics' Field Service Department at 800-492-1212 inside the USA or
610-777-1374 outside the USA.
1. Reattach the new power supply harness assembly’s FASTON™ lugs to the backplane PCBA at the
appropriate locations. Use firm pressure to insure a tight connector fit. Refer to the table below:
PS Harness wire color To: Backplane Terminal
18 AWG Red
+5 volts
18 AWG Red
+5 volts
18 AWG Red
+5 volts
18 AWG Red
+5 volts
18 AWG Black
GND (D GND)
18 AWG Black
GND (D GND)
18 AWG Black
GND (D GND)
18 AWG Black
GND (D GND)
18 AWG Black/White
+5 volt standby (A-GND)
18 AWG Black/White
+5 volt standby (A-GND)
18 AWG Orange
+12 volts
18 AWG Yellow
-12 volts
22 AWG Blue
+5 volts
22 AWG Brown
GND (D GND)

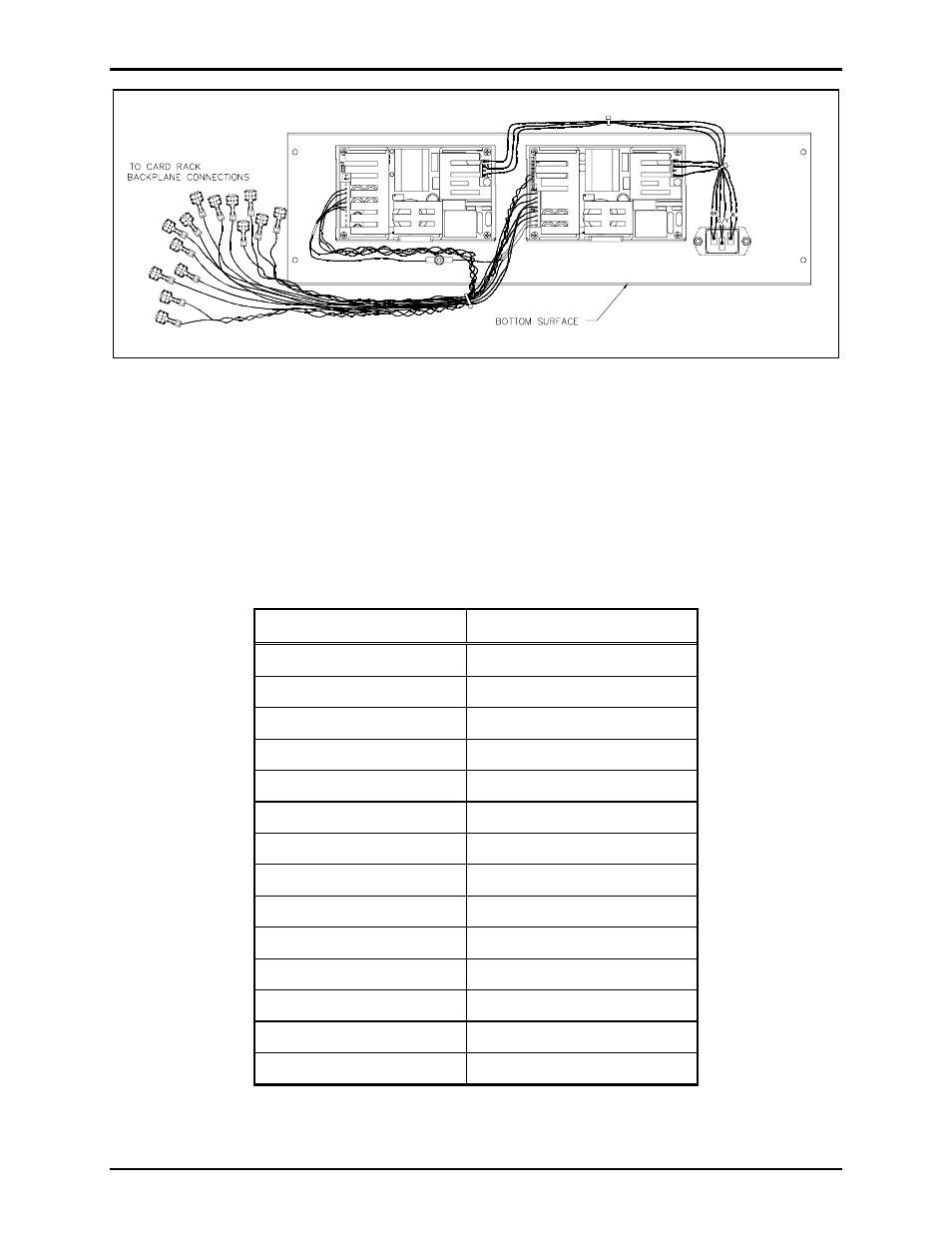

Figure 1.
