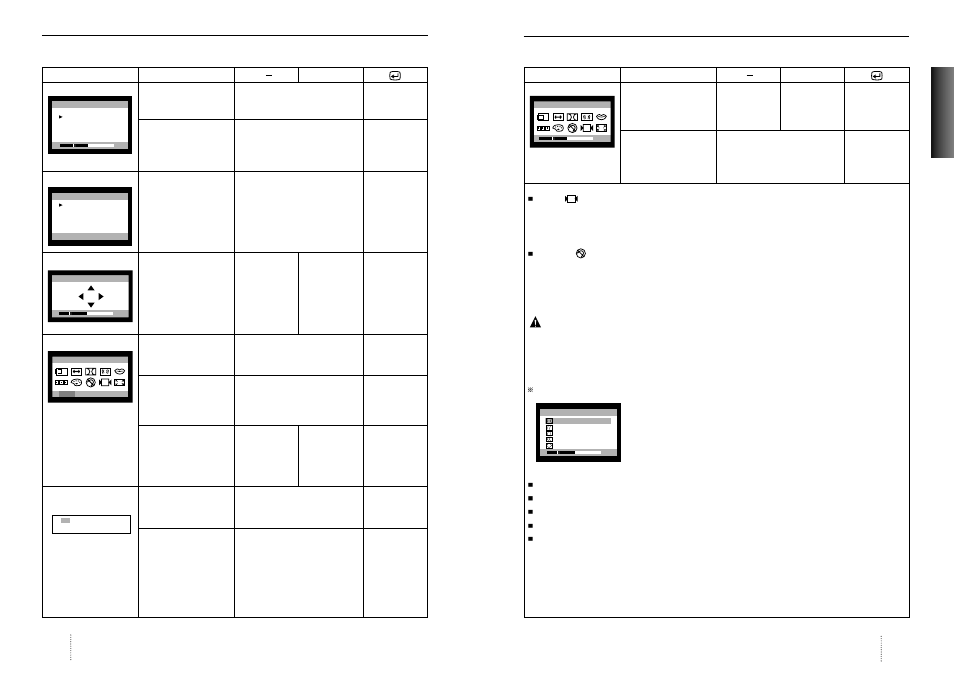

Controls Controls
OSD MENU MENU +
8. MOIRE Odd press Contros the amount of selected Exit to No.2
: Selects and blinks the function. Please control these key
function with RED ICON in order the image not to shiver.
Even press Moves to function you want.
: Stops blinking and
ready to move function
you want.
9. LANGUAGE Selects the languages Moves to language you want. Exit to No.2
with RED ICON and
Exit to No.2
10. OSD POSITION Toggles OSD position Moves the OSD Moves the OSD Exit to No.2
horizontally or vertically. menu left or menu right or
down in the up in the
selected selected
function. function.
11. COLOR MODE Odd press Moves to color mode you want Exit to No.1
: Blinks the RED ICON and the selected “color mode”
- color menu ICON. will blink.
Even press Moves to function you want. Exit to No.1
: Stops blinking and
ready to move function
you want.
When the color mode _ _ _
ICON is blinking in user
mode, press, then go to
color adjust mode
No.12.
12. COLOR ADJUST Odd press Controls the amount of function Exit to No.11
MODE : Selects and blinks the you want.
function you want.
Even press Moves to the function you want. Exit to No.11
: Stops blinking and
ready to move function
you want.
50
MOIRE CONTROL
H. MOIRE ADJUST
V. MOIRE ADJUST
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
PRESS MENU KEY
OSD H.POSITION
50
COLOR - TEMP
USER 6500K 9300K
50
RB GB BB RG GG BG
USER
OSD MENU MENU +
13. ZOOM Odd press Shinks the Expands the Exit to No.1
: Selects zoom and image image
blinks the zoom ICON. horizontally horizontally
and vertically. and vertically.
Even press Moves to the function you want. Exit to No.1
: Stops blinking and
ready to move anther
function.
Recall ( ) : Recall control to the factory setting resets all the controls within the all menu.
If you want to return to the factory mode setting, press Recall key 5~8 Sec
continuously.
Degauss ( ) : Eliminates the build-up of stray magnetic fields which alter the correct scan of the
electron beams and affect the purity of the screen colors, focus, and
convergence. When pressed, you screen image will jump and waver a bit as the
screen is demagnetized.
Caution : Please allow aminimum of 20 minutes to elapse between uses of the Degauss
button. Do not hold the button down continuously to avoid decreasing the life the
Deguass circuitry.
Geometry Controls Menu
The Geometry controls allow you to adjust the curvature or angle
of the sides of you display.
Pincushion : Increases or decreases the curvature of the sides either inward or outward.
Parallelogram : Increases or decreases the tilt of the sides either to the left or right.
Trapezoid : Increases or decreases the bottom of the screen to be the same as the top.
Pin Balance : Increases or decreases the curvature of the sides either to the left or right.
Rotation : Increases or decreases the tilt of the screen image relative to a horizontal line.
ZOOM
50
50%
PINCUSHION
PARALLELOGRAM
TRAPEZOID
PINBALANCE
ROTATION
GEOMETRY
50
RB - Red background raster
GB - Green background raster
BB - Blue background raster
RG - Red level gain
GG - Green level gain
BG - Blue level gain
