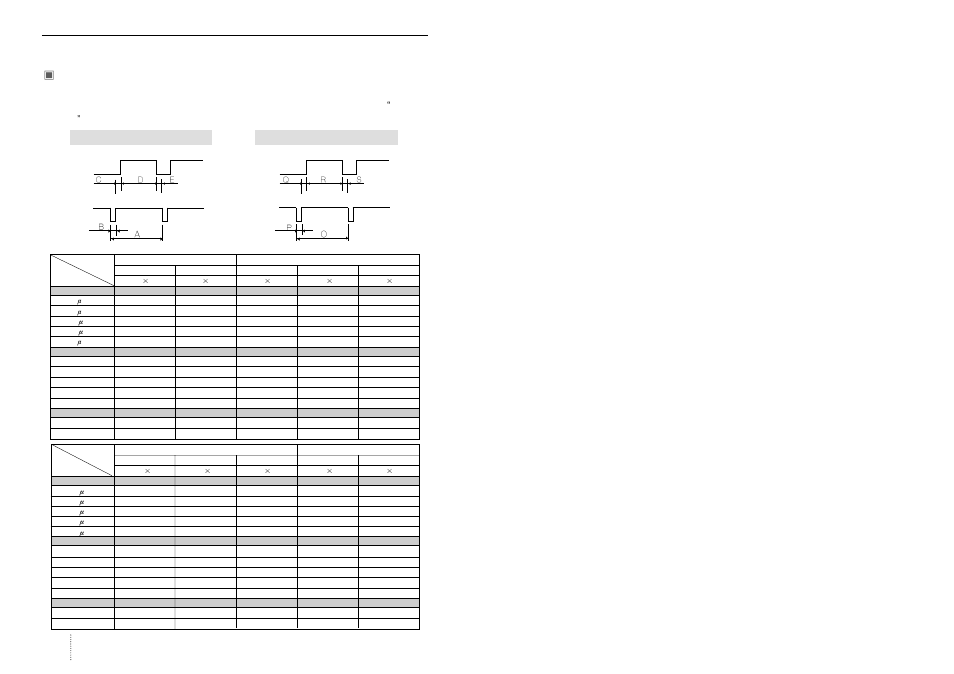

Preset Timings
This Monitor E17CL has preset modes for the 10 most popular industry standards for Plug and
Play capability.
Video
Sync
Vertical
Video
Sync
Horizontal
1024/75Hz 1024/85Hz 1280/60Hz 640/67Hz 832/75Hz
1024 768 1024 768 1280 1024 640 480 832 624
H-Freq(kHz) 60.023 68.677 63.953 35 49.726
A sec 16.660 14.561 15.636 28.571 20.11
B sec 1.219 1.016 1.018 2.116 1.117
C sec 2.235 2.201 2.255 3.175 3.91
D sec 13.003 10.836 11.636 21.164 14.524
E sec 0.203 0.508 0.727 2.116 0.559
V-Freq(Hz) 75.029 84.997 59.938 66.667 74.551
Omsec 13.328 11.765 16.684 15 13.414
Pmsec 0.050 0.044 0.078 0.086 0.06
Qmsec 0.466 0.524 0.579 1.114 0.784
Rmsec 12.795 11.183 16.012 13.714 12.549
Smsec 0.017 0.015 0.016 0.086 0.02
Pixel rate(MHz) 78.750 94.5 107.761 30.24 57.284
H-Polarity Positive Positive Positive Negative Negative
V-Polarity Positive Positive Positive Negative Negative
VESA MACINTOSH Resolution
Timing
VGA/70Hz VGA/60Hz 640/85Hz 800/75Hz 800/85Hz
720 400 640 480 640 480 800 600 800 600
H-Freq(kHz) 31.469 31.469 43.269 46.875 53.674
A sec 31.777 31.777 23.111 21.333 18.631
B sec 3.813 3.813 1.556 1.616 1.138
C sec 1.907 1.907 2.222 3.232 2.702
D sec 25.422 25.422 17.778 16.162 14.222
E sec 0.636 0.636 1.556 0.323 0.569
V-Freq(Hz) 70.09 59.94 85.008 75 85.061
Omsec 14.268 16.684 11.764 13.333 11.756
Pmsec 0.064 0.064 0.069 0.064 0.056
Qmsec 1.08 1.048 0.578 0.448 0.503
Rmsec 12.711 15.253 11.093 12.8 11.179
Smsec 0.413 0.318 0.023 0.021 0.019
Pixel rate(MHz) 28.322 25.175 36 49.5 56.25
H-Polarity Negative Negative Negative Positive Positive
V-Polarity Positive Negative Negative Positive Positive
Resolution
Timing
IBM VESA
