OWNER'S MANUAL
RS-1101 ASSEMBLY PAGE 10

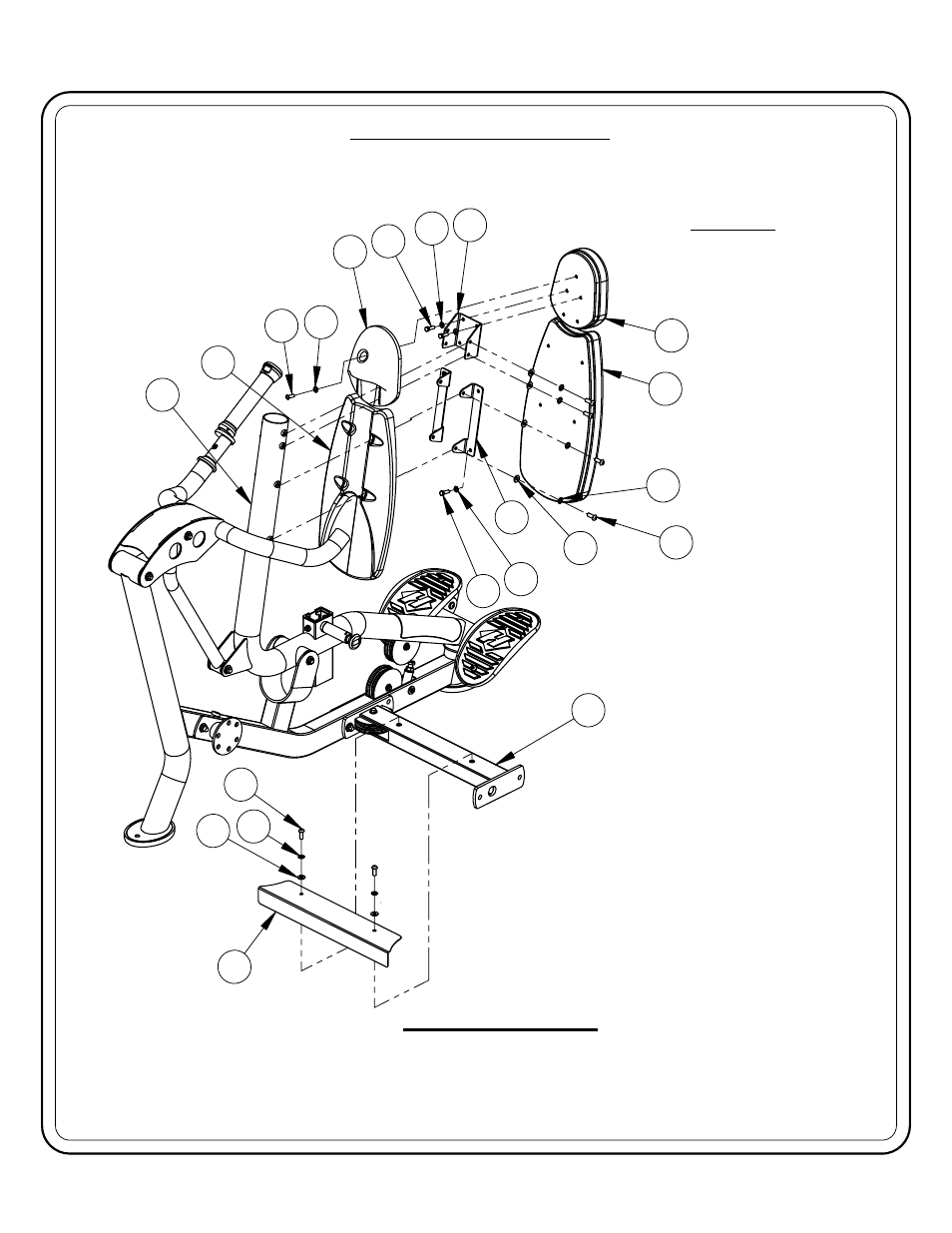

FRAME ASSEMBLY
NOTE:
- WRENCH TIGHTEN HARDWARE.
- REPEAT STEPS FOR OTHER SIDE.
- SOME PARTS REMOVED FOR CLARITY.
STOP
WHEN FINISHED WITH THIS STEP
PLEASE SEE ROC-IT WEIGHT
CAGE MANUAL FOR FINAL ASSEMBLY.
*IMPORTANT*
NOW THAT THE RS-1101 MACHINE IS COMPLETELY ASSEMBLED TAKE TIME TO ASSURE
THAT YOUR UNIT IS ASSEMBLED SQUARE AND PERPENDICULAR. USE A LEVEL TO
CHECK THAT THE GUIDE RODS ARE PERPENDICULAR IN BOTH DIRECTIONS. IF THEY ARE
NOT PERPENDICULARIN BOTH DIRECTIONS, IT WILL BE NECESSARY TO LOOSEN SOME
FRAME HARDWARE TO RE-ALIGNTHE FRAME AND RETIGHTEN BOLTS.
71
7
43
50
52
53
76
49
76
49
14
13
50
52
53
1
68
69
70
49 79
