6 DO-IT-YOURSELF MAINTENANCE
2 0

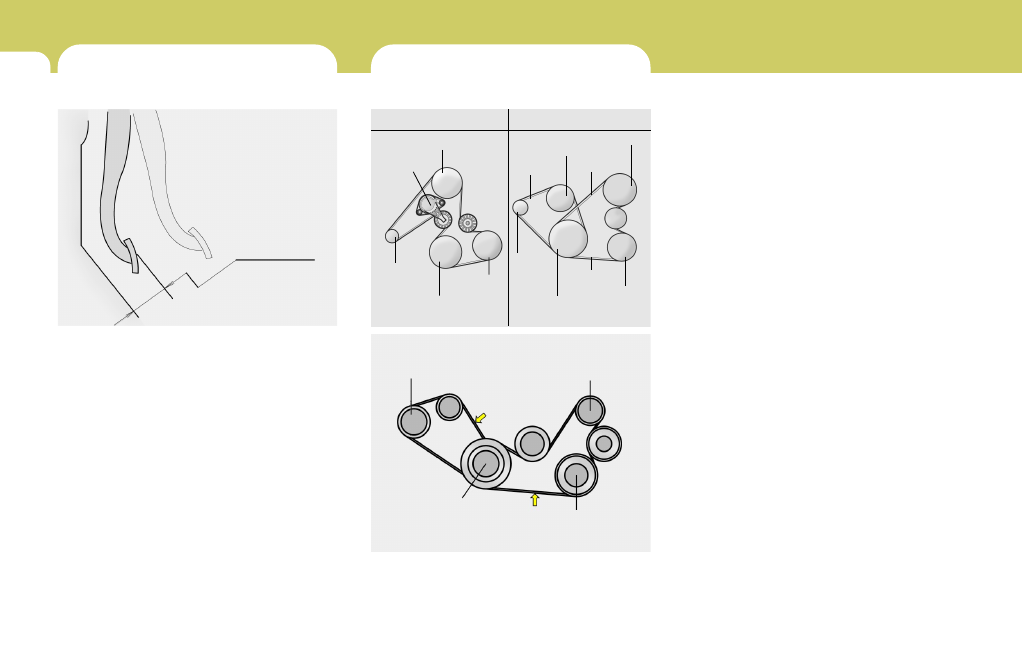

CHECKING BRAKE PEDAL
CLEARANCE CHECKING DRIVE BELTS
G180A01A-AAT
You need a helper to check the brake pedal
clearance. With the engine running, have your
helper press down on the brake pedal several
times and then hold it down with a force of about
110 lbs (50 kg, 490 N). The brake pedal clear-
ance is the distance from the top surface of the
brake pedal to the asphalt sheeting under the
floor mat.
If the brake pedal clearance is not within the
limits specified in the illustration, have it in-
spected by your Hyundai dealer and adjusted
or repaired if necessary.
G180A01L
2.95 in. (75 mm)
Drive belts should be checked periodically for
proper tension and adjusted if necessary. At the
same time, belts should be examined for cracks,
wear, fraying or other evidence of deterioration
and replaced if necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine. After a belt is replaced,
the new belt should be adjusted again after two
or three weeks to eliminate slack resulting from
initial stretching after use. G190A01A-AAT
HSM396
2.7 V6 2.4 DOHC
COMP
Eng.pulley Eng.pulley
COMP
0.315 in.
Power steering
Power steering
Auto tensioner
Generator
Generator
Eng.coolant
0.30~0.48 in. 0.24~0.35 in.
G140D02L
3.5 V6
Crank shaft apulley
A/C pulley
Power steering pulley
Generator
