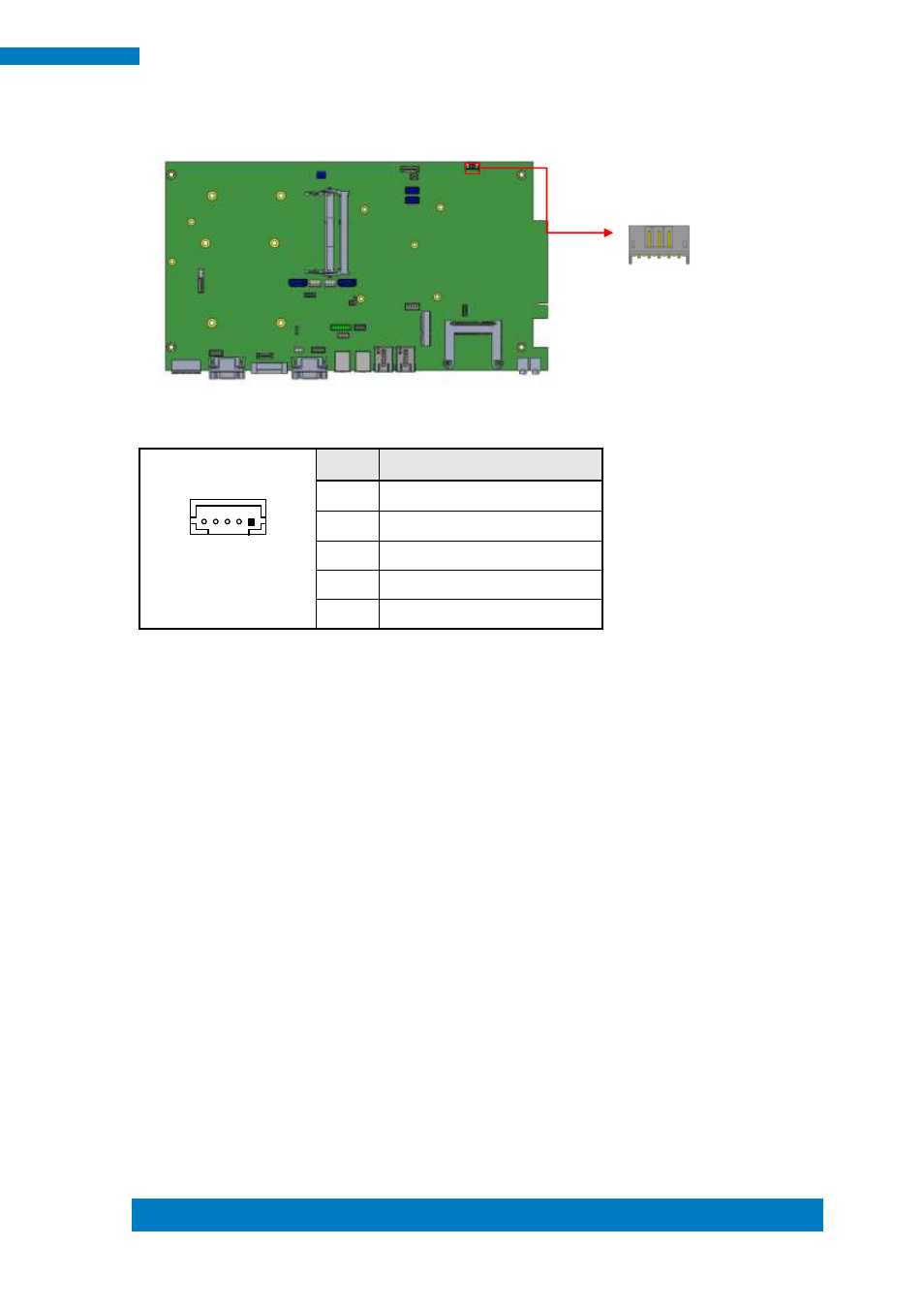

J1: Smart Battery Connector
1X5_2.0mm_Right Angle_Male (E-CALL 0110-162-050 compatible JST S5B-PH-K-S)
Mating connector: JST PHR-5
1 5
Pin # Signal Name
1 Reset#
2 SMI#
3 Ground
4 SMB_DATA
5 SMB_CLOCK
5 1
