24 ASTUT-xx1-PC1S User Manual

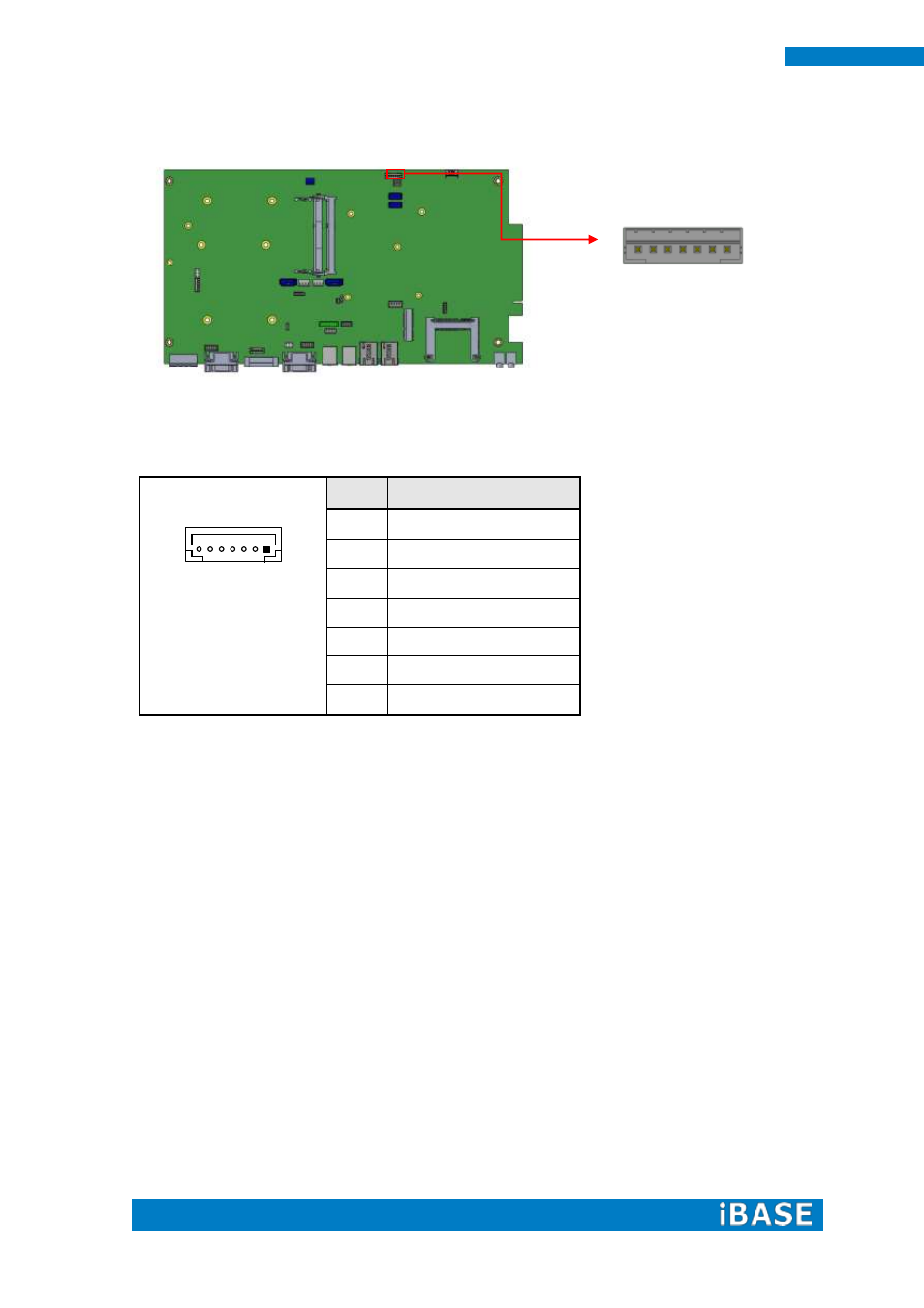

J2: LCD Backlight Connector
1X7_2.0mm_Straight_Male (E-CALL 0110-161-070 compatible JST B7B-PH-K-S)
Mating connector: JST PHR-7
7 1
Pin # Signal Name
1 +12V/1.5A
2 +12V/1.5A
3 Ground
4 Ground
5 Backlight Enable
6 Brightness Control
7 +3.3V/0.5A
7 1
