Draco KVM Extender
22
2013-12-06

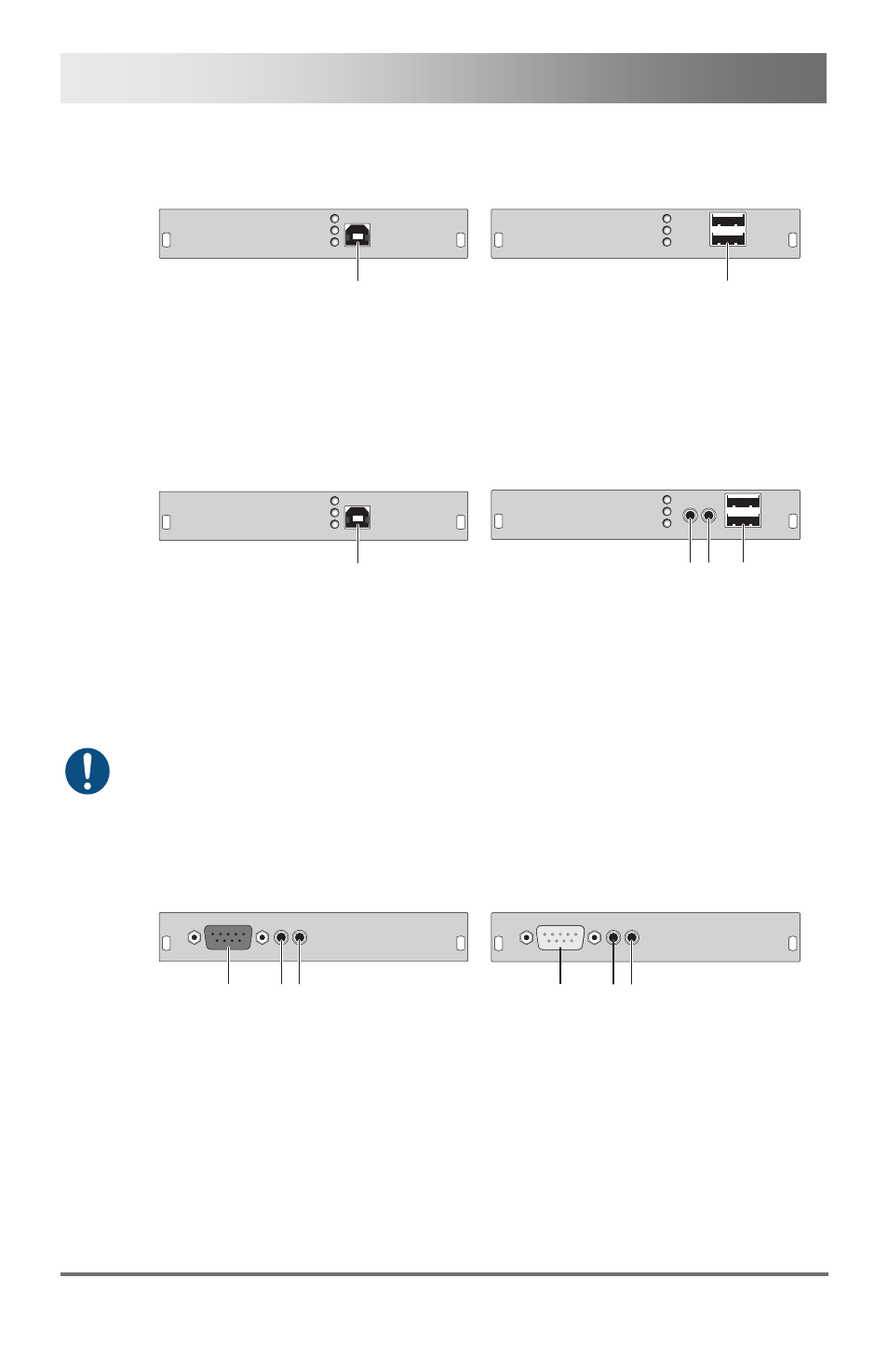

3.6.12 Model L- / R474-BXE
CPU Module
CON Module
1
1
Rear View
Rear View
1
To CPU: USB 2.0
1
Connect to USB 2.0 devices
Pos: 24 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BUE @ 7\mod_1331799038717_6.doc @ 58130 @ 3 @ 1
3.6.13 Model L- / R474-BUE
CPU Module
CON Module
1
1 2
3
Rear View
Rear View
1
To CPU: USB 2.0
1
Audio IN
2 Audio
OUT
3
Connect to USB 2.0 devices
When using USB audio within a KVM matrix, instant switching is not
possible due to the deregistration and registration process of the USB.
Pos: 25 /806-IHSE/Beschreibung/Geräteansichten/474-xx/Typ L- / R474-BAX @ 6\mod_1304583540285_6.doc @ 51002 @ 3 @ 1
3.6.14 Model L- / R474-BAX
CPU Module
CON Module
1
2 3
1
2 3
Rear View
Rear View
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
1
Connect to serial (D-Sub 9)
2 Audio
IN
3 Audio
OUT
