555 Dawson Drive, Camarillo, CA 93012 Phone 805-482-6913 • Fax 805-482-7422
7
Rev I
9-12
No.1208-1353
A Division of Thiessen Products, INC
IIn ns st tr ru uc ct tiio on n S Sh he ee et t F Fo or r B Bo ox x 3 3 1 12 20 0” ”,, 1 13 31 1” ”,, o or r 1 13 35 5” ”
E En ng giin ne e A As ss se em mb bl liie es s O Or r E En ng giin ne e R Ra ac ce e K Kiit ts s

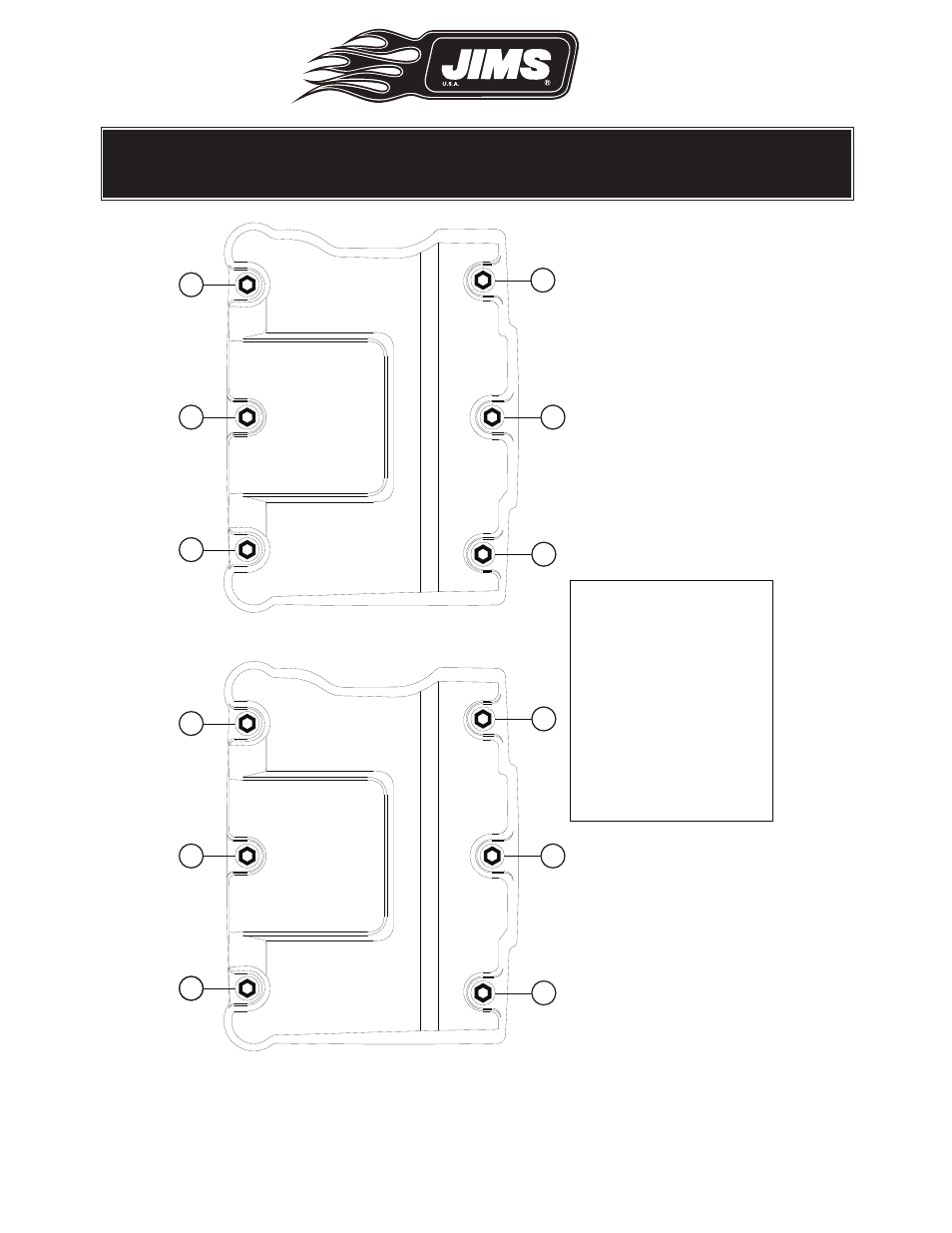

ALTERNATELY TORQUE (TIGHTEN) ALL 12 ROCKER
COVER BOLTS IN THE SEQUENCE SHOWN
BOLTS 1, 3, & 5
ARE 1.00" IN LENGTH
HD #94334-91TS
AND
FLAT WASHER
HD #94064-03
BOLTS 2, 4, & 6
ARE 1.75" IN LENGTH
HD #94337-91TS
1
5
3
4
6
2
FRONT
REAR
3
6
1 2
5
4
Figure 7
