Founder, Nlnl dkdk ukuk frfr dede a b, Ba a – Koga SPECIALS - TANDEM - ADAPTOR - MTB User Manual
Page 4
6
A
1
200
[PSI]
180
160
140
120
100
80
60
13,8
[bar]
12,4
11,0
9,7
8,3
6,9
5,5
4,1
50
60
70
80
90
100 110
120
Rider's weight (kg)
4
B
A
3
2

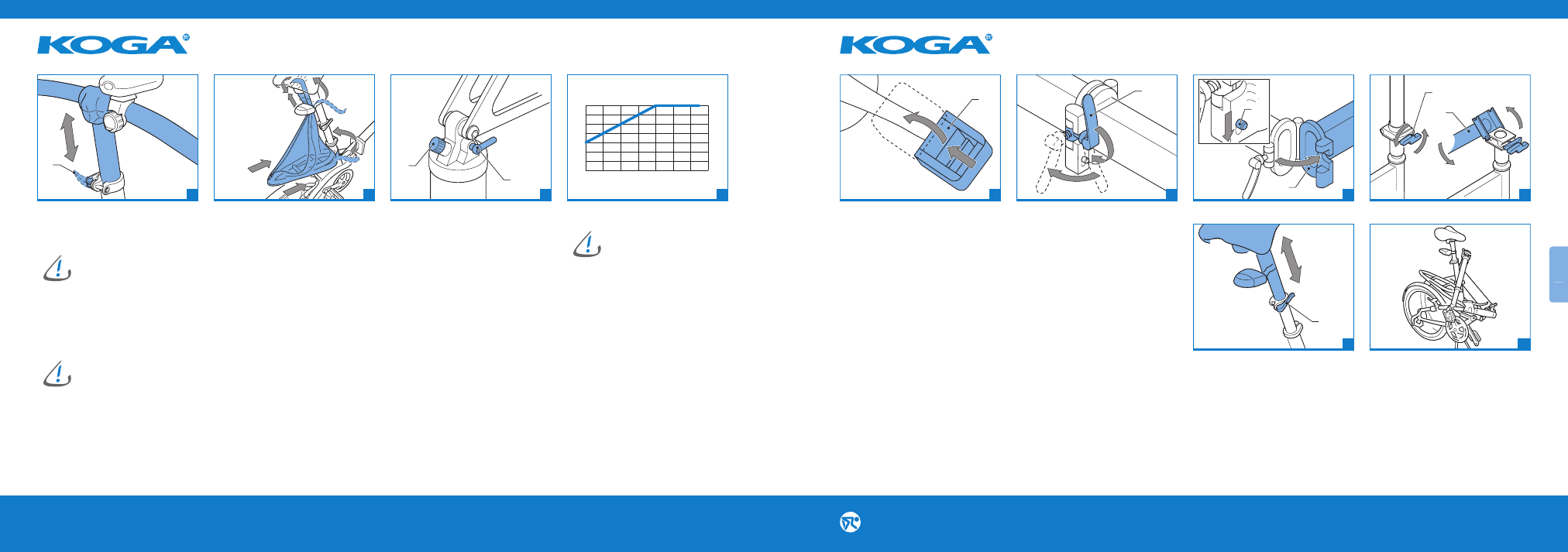

Founder
The maximum carrying
capacity of the Founder
is 110 kg.
Setting the handlebar height
Open the quick release (1A).
1.
Adjust the handlebar to the
2.
desired height.
Never move the
handlebar further than
the safety marks on the
stem.
Close the quick release (1A).
3.
Luggage bag
Mounting the luggage bag:
Open the luggage bag.
1.
Put the luggage bag over the
2.
back carrier.
Attach both Velcro strips of
3.
the luggage bag around the
seat post.
Pull the belt through the
4.
seat post and close the belt
buckle.
Koga ASL damper
Take place on your Koga
1.
bicycle as normal with full
weight on the saddle.
The spring travel of the
2.
damper may be no more
than 6 mm.
If the spring travel is more than
6 mm, use the pump supplied to
increase the air pressure in the
damper (3A).
Lock-out (optional)
The rear damper can be
disconnected by means of the
lock-out (1A) if the bicycle is to be
used on fast and smooth ground.
Minimum air press
is120 psi (8 bar) and
maximum 200 psi (13
bar).
www.koga.com
7
nlnl
dkdk
ukuk
frfr
dede
A
B
8
10
B
A
A
7
9
A
6
A
5
Folding the Founder
Put the bicycle on its stand.
1.
Fold the pedals in (5A).
2.
Fold the lever (6A) down.
3.
Turn the lever (6A) outwards.
4.
Push the safety pin (7A)
5.
down and fold the frame
totally open (7B).
Loosen the button (8A).
6.
Fold the stem downwards
7.
(8B).
Fold the lever (9A) open.
8.
Push the saddle down as far
9.
as possible.
Close the lever (9A).
10.
The Founder is ready for
11.
transport (10).
Unfolding the Founder
Fold the lever (9A) open.
1.
Pull the saddle upwards.
2.
Make sure the mark on the
3.
seat post is not visible.
Close the lever (9A).
4.
Fold the stem (8B) open.
5.
Tighten the button (8A).
6.
Fold the Founder out fully
7.
until the safety pin (7A) clicks
fast.
Turn the lever (6A) 90°
8.
inwards.
Fold the lever (6A) fully down.
9.
Fold the pedals out (5A).
10.
