R324-STIO Indoor Outdoor Ventless Gas Fireplace
Page 10 XG0775 - 150204.1
Installation
Section 3: Finishing
FINISHINGTHEUNITONTHEINTERIOROFTHEBUILDING:
STEP1:Once the unit is in place from the outside, confirm that there is
clearance to combustibles; 1/2" on the sides and 3" on the top. (See Fig. 4a)
STEP2:Fill the gap to sides and top with insulation that is rated for
minimum 250 degrees Fahrenheit.
STEP3:Installnon-combustiblefacingmaterialsuchascementboard
ortileonthefrontinsidefaceoftheunit.(SeeFig4b)
STEP4:Installdrywallorotherfinishingmaterial.

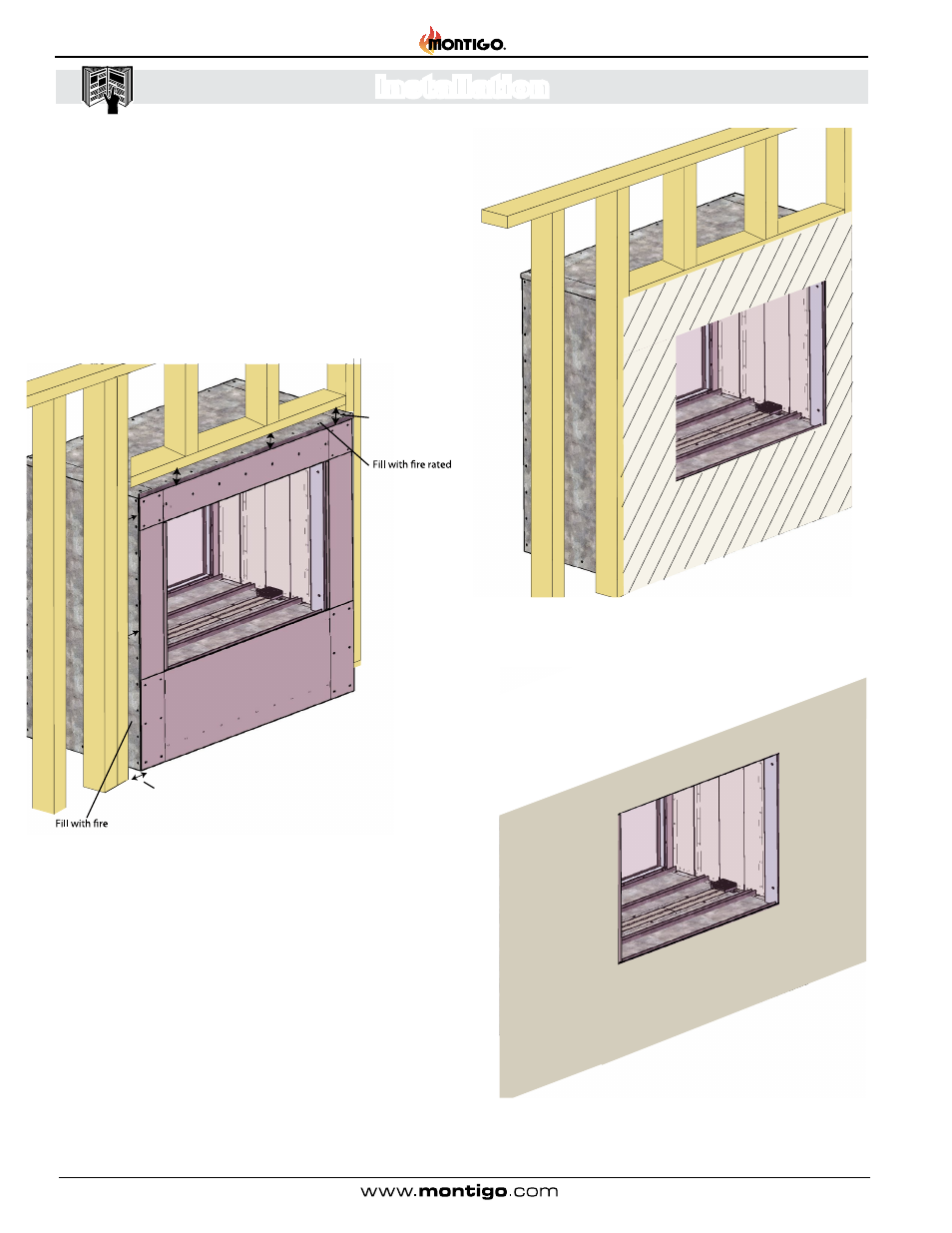

Figure 5 Interior framing
Figure 5b: Finished interior installation
Figure 5a: Interior face of unit - non- combustible
Min. Clearance
1/2” to combustibles
Min. Clearance
3” to combustible
from top of unit
from sides of unit
Insulation
rated insulation
Note: Images are shown without screens for clarity purposes. However, your fireplace
should not be operated without proper installation of screens.
